SDO HMI 2014-06-29 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.69 | 355.01 | 93.72 | 631.40 | -10.72 | 268.26 | -72.90 | 101.99 | 0.9608 | 167.2 | 138.7 | |
|
previous
or next observation for the same group /

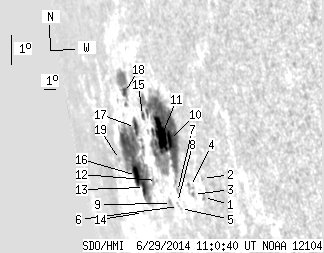

back to the solar disc SDO HMI 2014-06-29 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.45 | 0.00 | 3.49 | -12.09 | 272.66 | -68.50 | 103.95 | 0.9389 | -419.0 | -324.4 | |
| 0.00 | 1.73 | 0.00 | 2.42 | -11.48 | 272.90 | -68.26 | 103.34 | 0.9370 | -178.0 | -141.6 | |
| 0.00 | 1.82 | 0.00 | 2.69 | -12.03 | 271.82 | -69.34 | 103.77 | 0.9437 | 514.0 | 449.2 | |
| 0.00 | 2.91 | 0.00 | 4.33 | -11.79 | 271.69 | -69.47 | 103.50 | 0.9442 | 205.0 | 352.6 | |
| 0.00 | 1.00 | 0.00 | 1.60 | -12.54 | 270.30 | -70.86 | 104.11 | 0.9522 | 342.0 | 245.5 | |
| 0.00 | 0.27 | 0.00 | 0.44 | -12.48 | 270.14 | -71.02 | 104.03 | 0.9530 | 87.0 | 180.7 | |
| 0.00 | 1.00 | 0.00 | 1.59 | -12.00 | 270.35 | -70.81 | 103.56 | 0.9516 | 442.0 | 408.5 | |
| 0.00 | 0.27 | 0.00 | 0.44 | -12.36 | 270.12 | -71.04 | 103.90 | 0.9530 | 216.0 | 167.0 | |
| 0.00 | 3.82 | 0.00 | 6.39 | -12.42 | 269.49 | -71.67 | 103.89 | 0.9563 | -180.0 | -185.1 | |
| 5.00 | 176.41 | 7.79 | 284.38 | -10.37 | 270.53 | -70.63 | 101.87 | 0.9496 | 932.5 | 228.8 | |
| 23.16 | -10.00 | 37.60 | -10.00 | -10.28 | 269.81 | -71.35 | 101.69 | 0.9534 | 334.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.92 | -11.75 | 268.39 | -72.77 | 103.06 | 0.9612 | 344.0 | 234.8 | |
| 5.09 | 132.26 | 9.95 | 263.00 | -12.04 | 266.84 | -74.32 | 103.19 | 0.9683 | -498.2 | 62.6 | |
| 0.00 | 0.91 | 0.00 | 1.88 | -12.86 | 266.04 | -75.13 | 103.95 | 0.9719 | -390.0 | -371.8 | |
| 0.00 | 2.91 | 0.00 | 5.13 | -9.73 | 268.16 | -73.00 | 100.94 | 0.9612 | -136.0 | -59.0 | |
| 10.26 | -13.00 | 20.92 | -13.00 | -11.69 | 266.15 | -75.01 | 102.76 | 0.9710 | -97.3 | 999999 | |
| 6.00 | -13.00 | 11.27 | -13.00 | -10.15 | 267.13 | -74.03 | 101.27 | 0.9661 | 187.8 | 999999 | |
| 3.18 | 24.89 | 6.19 | 48.73 | -9.09 | 266.51 | -74.65 | 100.12 | 0.9684 | 287.6 | 112.4 | |
| 0.00 | 1.27 | 0.00 | 2.97 | -11.28 | 264.27 | -76.89 | 102.16 | 0.9780 | 236.0 | 197.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
