SDO HMI 2014-06-29 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.70 | 177.57 | 98.08 | 743.64 | -20.40 | 259.35 | -81.26 | 110.97 | 0.9922 | -310.0 | -187.4 | |
|
previous
or next observation for the same group /

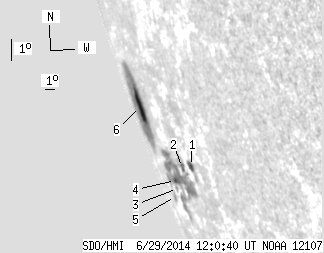

back to the solar disc SDO HMI 2014-06-29 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.72 | 9.63 | 9.40 | 24.19 | -21.11 | 263.78 | -76.83 | 112.14 | 0.9816 | 331.8 | 213.0 | |
| 2.45 | 86.20 | 7.01 | 294.68 | -21.21 | 262.36 | -78.25 | 112.08 | 0.9857 | -4.6 | -288.8 | |
| 0.00 | 1.63 | 0.00 | 6.51 | -22.03 | 259.58 | -81.03 | 112.62 | 0.9925 | -192.0 | -81.8 | |
| 2.27 | -2.00 | 8.53 | -2.00 | -21.76 | 259.87 | -80.74 | 112.37 | 0.9918 | -280.3 | 999999 | |
| 0.00 | 3.72 | 0.00 | 18.20 | -22.37 | 258.13 | -82.48 | 112.82 | 0.9951 | -81.0 | -62.0 | |
| 15.26 | 76.39 | 73.14 | 400.06 | -19.42 | 257.93 | -82.68 | 109.85 | 0.9950 | -430.0 | -128.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
