SDO HMI 2014-06-29 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.75 | 376.93 | 108.91 | 627.89 | -10.69 | 268.27 | -71.79 | 102.08 | 0.9554 | 164.0 | 123.6 | |
|
previous
or next observation for the same group /

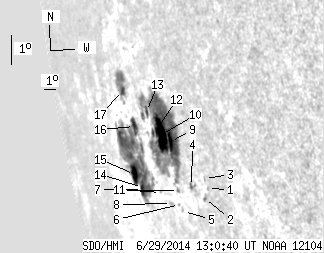

back to the solar disc SDO HMI 2014-06-29 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 1.21 | -11.80 | 272.98 | -67.08 | 103.84 | 0.9301 | -366.0 | -375.2 | |
| 0.00 | 2.18 | 0.00 | 2.96 | -12.14 | 272.56 | -67.50 | 104.14 | 0.9330 | -432.0 | -321.3 | |
| 0.00 | 1.00 | 0.00 | 1.34 | -11.49 | 272.89 | -67.17 | 103.50 | 0.9304 | -244.0 | -195.4 | |
| 0.82 | 4.45 | 1.16 | 6.27 | -11.80 | 271.65 | -68.41 | 103.65 | 0.9382 | 473.3 | 294.4 | |
| 0.00 | 0.36 | 0.00 | 0.55 | -12.64 | 270.46 | -69.60 | 104.38 | 0.9455 | 311.0 | 325.2 | |
| 0.00 | 0.91 | 0.00 | 1.38 | -12.43 | 270.23 | -69.83 | 104.13 | 0.9467 | 198.0 | 127.6 | |
| 0.00 | 1.82 | 0.00 | 2.73 | -11.98 | 270.40 | -69.66 | 103.68 | 0.9454 | 418.0 | 389.9 | |
| 0.00 | 2.36 | 0.00 | 3.72 | -12.43 | 269.48 | -70.58 | 104.03 | 0.9507 | -155.0 | -148.2 | |
| 7.08 | 194.82 | 10.49 | 298.32 | -10.44 | 270.52 | -69.54 | 102.07 | 0.9437 | 882.7 | 217.3 | |
| 25.52 | -9.00 | 39.17 | -9.00 | -10.26 | 269.79 | -70.27 | 101.79 | 0.9476 | 353.3 | 999999 | |
| 0.00 | 0.73 | 0.00 | 1.20 | -12.12 | 268.60 | -71.46 | 103.60 | 0.9550 | 231.0 | 208.9 | |
| 2.91 | -9.00 | 4.61 | -9.00 | -10.22 | 269.14 | -70.92 | 101.68 | 0.9511 | -336.2 | 999999 | |
| 2.27 | -9.00 | 3.66 | -9.00 | -9.59 | 268.70 | -71.36 | 100.97 | 0.9530 | 128.3 | 999999 | |
| 6.09 | 145.32 | 11.12 | 267.74 | -12.05 | 266.77 | -73.29 | 103.32 | 0.9637 | -527.2 | 37.3 | |
| 10.35 | -14.00 | 19.59 | -14.00 | -11.67 | 266.15 | -73.91 | 102.86 | 0.9663 | -97.9 | 999999 | |
| 6.90 | -14.00 | 12.15 | -14.00 | -10.12 | 267.17 | -72.89 | 101.37 | 0.9609 | 219.7 | 999999 | |
| 3.81 | 22.07 | 6.96 | 40.47 | -9.03 | 266.49 | -73.57 | 100.17 | 0.9636 | 253.0 | 76.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
