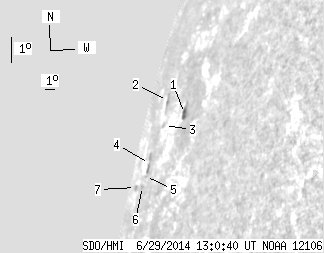

SDO HMI 2014-06-29 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.91 | 23.25 | 7.19 | 81.47 | 14.09 | 257.77 | -82.29 | 76.13 | 0.9900 | -82.9 | 50.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-29 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.91 | 7.18 | 7.19 | 17.71 | 15.18 | 261.33 | -78.73 | 75.05 | 0.9806 | -223.8 | -142.0 | |
| 0.00 | 4.72 | 0.00 | 16.81 | 15.42 | 257.51 | -82.55 | 74.80 | 0.9911 | 92.0 | 115.1 | |
| 0.00 | 1.36 | 0.00 | 4.54 | 14.66 | 258.31 | -81.75 | 75.57 | 0.9893 | 218.0 | 289.9 | |
| 0.00 | 5.90 | 0.00 | 22.91 | 13.41 | 257.03 | -83.03 | 76.82 | 0.9922 | -289.0 | -83.7 | |
| 0.00 | 0.54 | 0.00 | 2.17 | 12.99 | 256.78 | -83.28 | 77.24 | 0.9928 | -37.0 | -24.3 | |
| 0.00 | 1.73 | 0.00 | 7.18 | 12.67 | 256.59 | -83.47 | 77.56 | 0.9932 | 135.0 | 145.5 | |
| 0.00 | 1.82 | 0.00 | 10.15 | 12.54 | 254.49 | -85.57 | 77.64 | 0.9967 | 397.0 | 286.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
