SDO HMI 2014-06-29 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.90 | 16.07 | 8.44 | 15.76 | 12.13 | 280.01 | -59.50 | 77.52 | 0.8640 | -516.2 | -314.8 | |
|
previous
or next observation for the same group /

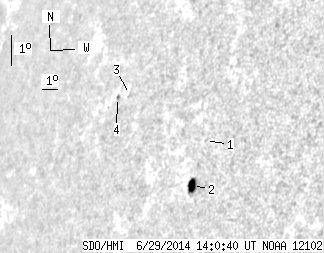

back to the solar disc SDO HMI 2014-06-29 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.76 | 12.79 | 281.71 | -57.80 | 76.59 | 0.8504 | -361.0 | -274.4 | |
| 8.54 | 11.53 | 8.03 | 10.85 | 11.38 | 281.42 | -58.09 | 78.27 | 0.8520 | -588.0 | -398.7 | |
| 0.00 | 2.36 | 0.00 | 2.61 | 14.01 | 276.31 | -63.19 | 75.66 | 0.8957 | -469.0 | -291.3 | |
| 0.36 | 1.36 | 0.41 | 1.54 | 13.89 | 275.52 | -63.99 | 75.86 | 0.9015 | -250.8 | -187.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
