SDO HMI 2014-06-29 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.71 | 37.95 | 15.23 | 111.89 | 13.66 | 257.75 | -80.65 | 76.58 | 0.9859 | -77.5 | 33.5 | |
|
previous
or next observation for the same group /

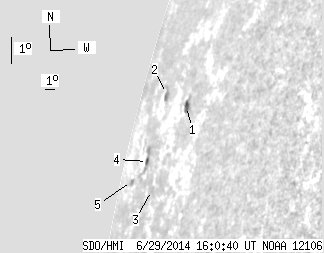

back to the solar disc SDO HMI 2014-06-29 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.54 | 7.35 | 7.72 | 16.02 | 15.18 | 261.24 | -77.16 | 75.03 | 0.9750 | -273.7 | -147.2 | |
| 0.00 | 5.63 | 0.00 | 16.94 | 15.43 | 257.48 | -80.92 | 74.80 | 0.9871 | 155.0 | 115.1 | |
| 0.00 | 6.54 | 0.00 | 17.03 | 12.44 | 259.00 | -79.40 | 77.84 | 0.9827 | 119.0 | 55.8 | |
| 1.63 | 15.62 | 5.17 | 49.99 | 13.27 | 257.10 | -81.30 | 76.99 | 0.9882 | -80.7 | -24.4 | |
| 0.54 | 2.81 | 2.34 | 11.91 | 12.52 | 254.41 | -83.99 | 77.70 | 0.9942 | 393.7 | 277.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
