SDO HMI 2014-06-29 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.27 | 433.54 | 110.65 | 643.46 | -10.66 | 268.33 | -69.51 | 102.31 | 0.9433 | 220.6 | 167.9 | |
|
previous
or next observation for the same group /

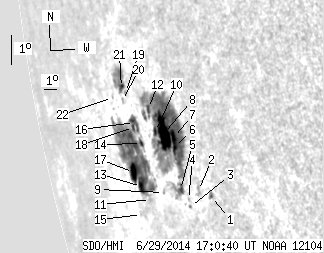

back to the solar disc SDO HMI 2014-06-29 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.82 | 2.72 | 1.01 | 3.37 | -12.12 | 272.66 | -65.18 | 104.47 | 0.9182 | -403.4 | -362.0 | |
| 0.00 | 4.18 | 0.00 | 5.36 | -11.97 | 271.74 | -66.11 | 104.17 | 0.9241 | 420.0 | 391.8 | |
| 0.00 | 1.18 | 0.00 | 1.58 | -12.52 | 270.83 | -67.02 | 104.62 | 0.9304 | 325.0 | 306.7 | |
| 0.00 | 0.91 | 0.00 | 1.21 | -12.30 | 270.78 | -67.07 | 104.38 | 0.9305 | 468.0 | 409.3 | |
| 4.09 | 13.07 | 5.57 | 17.99 | -12.01 | 270.28 | -67.57 | 103.99 | 0.9333 | 476.8 | 358.6 | |
| 1.36 | 218.63 | 1.83 | 301.57 | -10.68 | 270.44 | -67.41 | 102.61 | 0.9312 | 867.5 | 255.2 | |
| 5.63 | -6.00 | 7.54 | -6.00 | -10.37 | 270.50 | -67.35 | 102.28 | 0.9306 | 967.6 | 999999 | |
| 28.15 | -6.00 | 38.94 | -6.00 | -10.28 | 269.71 | -68.13 | 102.08 | 0.9354 | 448.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 2.26 | -12.17 | 268.74 | -69.11 | 103.96 | 0.9425 | 291.0 | 247.3 | |
| 2.63 | -6.00 | 3.76 | -6.00 | -10.25 | 269.04 | -68.80 | 101.96 | 0.9393 | -281.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.71 | -12.45 | 267.38 | -70.47 | 104.07 | 0.9501 | -370.0 | -357.2 | |
| 2.45 | -6.00 | 3.54 | -6.00 | -9.54 | 268.76 | -69.09 | 101.18 | 0.9405 | 251.5 | 999999 | |
| 5.81 | 162.52 | 9.40 | 263.53 | -12.07 | 266.75 | -71.09 | 103.60 | 0.9531 | -653.0 | 73.6 | |
| 2.36 | -13.00 | 3.63 | -13.00 | -10.69 | 267.56 | -70.28 | 102.25 | 0.9480 | 139.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.99 | -12.98 | 266.14 | -71.71 | 104.47 | 0.9568 | -454.0 | -438.9 | |
| 6.54 | -13.00 | 10.18 | -13.00 | -10.05 | 267.24 | -70.60 | 101.54 | 0.9493 | 278.3 | 999999 | |
| 10.44 | -13.00 | 17.30 | -13.00 | -11.66 | 266.22 | -71.62 | 103.10 | 0.9556 | -148.8 | 999999 | |
| 2.27 | -13.00 | 3.57 | -13.00 | -10.21 | 267.06 | -70.78 | 101.69 | 0.9504 | 167.7 | 999999 | |
| 0.00 | 1.73 | 0.00 | 2.73 | -9.13 | 266.84 | -71.01 | 100.53 | 0.9509 | 385.0 | 376.0 | |
| 0.00 | 1.82 | 0.00 | 2.93 | -9.40 | 266.42 | -71.43 | 100.77 | 0.9533 | 143.0 | 114.2 | |
| 2.72 | 22.70 | 4.38 | 36.76 | -8.99 | 266.52 | -71.33 | 100.35 | 0.9525 | 381.6 | 106.9 | |
| 0.00 | 0.27 | 0.00 | 0.47 | -9.35 | 265.43 | -72.42 | 100.62 | 0.9583 | -143.0 | -122.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
