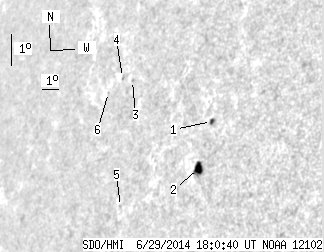

SDO HMI 2014-06-29 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.53 | 17.98 | 7.58 | 16.54 | 12.00 | 280.07 | -57.22 | 77.47 | 0.8438 | -519.1 | -352.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-29 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 2.81 | 1.37 | 2.49 | 12.84 | 281.61 | -55.68 | 76.31 | 0.8309 | -417.9 | -338.9 | |
| 6.99 | 11.17 | 6.21 | 9.92 | 11.37 | 281.35 | -55.94 | 78.11 | 0.8322 | -668.9 | -442.4 | |
| 0.00 | 0.91 | 0.00 | 0.93 | 13.92 | 276.45 | -60.84 | 75.57 | 0.8771 | -458.0 | -405.6 | |
| 0.00 | 1.45 | 0.00 | 1.52 | 13.99 | 275.76 | -61.53 | 75.56 | 0.8827 | -395.0 | -252.3 | |
| 0.00 | 0.91 | 0.00 | 0.90 | 10.03 | 277.15 | -60.14 | 79.98 | 0.8692 | -106.0 | -183.6 | |
| 0.00 | 0.73 | 0.00 | 0.78 | 13.49 | 275.05 | -62.24 | 76.18 | 0.8880 | -325.0 | -276.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
