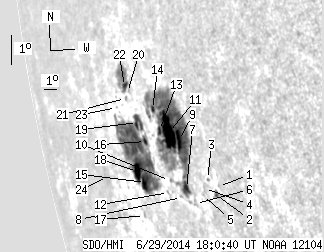

SDO HMI 2014-06-29 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.52 | 463.28 | 119.63 | 674.31 | -10.82 | 268.24 | -69.05 | 102.54 | 0.9407 | 217.8 | 171.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-29 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.87 | -11.84 | 272.91 | -64.38 | 104.29 | 0.9124 | -327.0 | -346.0 | |
| 1.00 | 3.09 | 1.21 | 3.75 | -12.13 | 272.63 | -64.66 | 104.56 | 0.9147 | -409.4 | -338.8 | |
| 0.00 | 1.09 | 0.00 | 1.34 | -11.65 | 272.18 | -65.11 | 103.97 | 0.9172 | 84.0 | 51.8 | |
| 0.00 | 1.45 | 0.00 | 1.82 | -11.95 | 271.82 | -65.47 | 104.24 | 0.9199 | 373.0 | 393.9 | |
| 0.00 | 0.54 | 0.00 | 0.69 | -12.18 | 271.55 | -65.74 | 104.45 | 0.9219 | 455.0 | 446.3 | |
| 0.00 | 3.18 | 0.00 | 4.14 | -12.46 | 270.87 | -66.42 | 104.64 | 0.9266 | 409.0 | 305.0 | |
| 7.44 | 238.77 | 9.90 | 321.16 | -12.01 | 270.38 | -66.91 | 104.09 | 0.9293 | 546.9 | 276.2 | |
| 0.00 | 0.82 | 0.00 | 1.11 | -12.32 | 269.81 | -67.48 | 104.34 | 0.9330 | 345.0 | 320.0 | |
| 7.44 | -7.00 | 9.75 | -7.00 | -10.50 | 270.45 | -66.84 | 102.49 | 0.9275 | 994.7 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.76 | -11.82 | 269.08 | -68.21 | 103.70 | 0.9370 | 238.0 | 266.3 | |
| 28.87 | -7.00 | 38.99 | -7.00 | -10.28 | 269.74 | -67.55 | 102.16 | 0.9318 | 495.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.68 | -12.21 | 268.78 | -68.51 | 104.07 | 0.9391 | 240.0 | 189.0 | |
| 2.45 | -7.00 | 3.42 | -7.00 | -10.25 | 269.01 | -68.28 | 102.04 | 0.9363 | -282.4 | 999999 | |
| 2.00 | -7.00 | 2.81 | -7.00 | -9.61 | 268.70 | -68.59 | 101.32 | 0.9376 | 179.0 | 999999 | |
| 8.99 | 175.49 | 14.05 | 276.49 | -11.98 | 266.84 | -70.45 | 103.58 | 0.9497 | -684.3 | 82.7 | |
| 2.27 | -15.00 | 3.39 | -15.00 | -10.66 | 267.58 | -69.71 | 102.29 | 0.9448 | 193.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 2.53 | -13.05 | 266.04 | -71.25 | 104.60 | 0.9546 | -483.0 | -432.1 | |
| 10.53 | -15.00 | 16.92 | -15.00 | -11.66 | 266.27 | -71.03 | 103.18 | 0.9525 | -191.8 | 999999 | |
| 8.72 | -15.00 | 13.23 | -15.00 | -10.09 | 267.14 | -70.15 | 101.64 | 0.9469 | 266.6 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.56 | -9.18 | 266.65 | -70.64 | 100.62 | 0.9490 | 352.0 | 357.8 | |
| 0.00 | 1.45 | 0.00 | 2.28 | -9.38 | 266.36 | -70.93 | 100.80 | 0.9507 | 93.0 | 68.7 | |
| 3.81 | 24.97 | 5.96 | 39.30 | -9.00 | 266.45 | -70.84 | 100.42 | 0.9500 | 357.6 | 93.5 | |
| 0.00 | 0.27 | 0.00 | 0.45 | -9.70 | 265.31 | -71.98 | 101.03 | 0.9563 | 125.0 | 117.3 | |
| 0.00 | 7.81 | 0.00 | 15.38 | -11.97 | 262.85 | -74.44 | 103.11 | 0.9687 | 58.0 | 60.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
