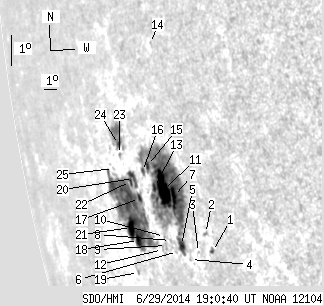

SDO HMI 2014-06-29 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.70 | 470.08 | 115.19 | 663.14 | -10.74 | 268.32 | -68.42 | 102.55 | 0.9371 | 251.6 | 176.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-29 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.91 | 2.54 | 1.08 | 3.02 | -12.11 | 272.66 | -64.07 | 104.63 | 0.9106 | -428.4 | -377.3 | |
| 0.00 | 2.09 | 0.00 | 2.50 | -11.55 | 272.40 | -64.33 | 103.99 | 0.9118 | -242.0 | -125.0 | |
| 0.00 | 0.27 | 0.00 | 0.34 | -12.18 | 271.60 | -65.14 | 104.55 | 0.9179 | 459.0 | 477.0 | |
| 0.00 | 0.91 | 0.00 | 1.16 | -12.43 | 270.87 | -65.87 | 104.71 | 0.9230 | 327.0 | 269.0 | |
| 7.35 | 245.85 | 9.53 | 323.05 | -12.02 | 270.37 | -66.36 | 104.18 | 0.9258 | 568.8 | 279.2 | |
| 0.00 | 1.09 | 0.00 | 1.44 | -12.22 | 269.95 | -66.78 | 104.34 | 0.9287 | 378.0 | 354.4 | |
| 8.17 | -5.00 | 10.47 | -5.00 | -10.48 | 270.46 | -66.28 | 102.54 | 0.9239 | 980.4 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.85 | -11.90 | 269.56 | -67.18 | 103.93 | 0.9308 | 463.0 | 417.9 | |
| 0.00 | 2.63 | 0.00 | 3.60 | -12.07 | 269.14 | -67.60 | 104.06 | 0.9336 | 244.0 | 297.6 | |
| 0.00 | 0.91 | 0.00 | 1.24 | -11.79 | 269.12 | -67.62 | 103.76 | 0.9334 | 402.0 | 373.8 | |
| 27.69 | -5.00 | 36.53 | -5.00 | -10.29 | 269.75 | -66.99 | 102.25 | 0.9283 | 517.2 | 999999 | |
| 0.00 | 1.63 | 0.00 | 2.27 | -12.21 | 268.73 | -68.01 | 104.16 | 0.9362 | 320.0 | 240.8 | |
| 3.00 | -5.00 | 4.07 | -5.00 | -10.26 | 269.03 | -67.70 | 102.12 | 0.9327 | -231.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.61 | -5.75 | 270.25 | -66.49 | 97.41 | 0.9217 | 309.0 | 288.6 | |
| 2.45 | -5.00 | 3.36 | -5.00 | -9.59 | 268.74 | -67.99 | 101.37 | 0.9340 | 168.3 | 999999 | |
| 1.72 | -5.00 | 2.42 | -5.00 | -9.80 | 268.23 | -68.50 | 101.53 | 0.9373 | 85.1 | 999999 | |
| 2.63 | 182.39 | 3.83 | 279.36 | -10.67 | 267.55 | -69.18 | 102.37 | 0.9418 | 294.7 | 74.5 | |
| 5.54 | -17.00 | 8.47 | -17.00 | -12.02 | 266.72 | -70.02 | 103.68 | 0.9474 | -754.3 | 999999 | |
| 0.00 | 1.63 | 0.00 | 2.60 | -13.06 | 266.06 | -70.67 | 104.68 | 0.9516 | -448.0 | -409.3 | |
| 5.99 | -17.00 | 8.81 | -17.00 | -10.06 | 267.32 | -69.41 | 101.69 | 0.9427 | 367.8 | 999999 | |
| 12.44 | -17.00 | 19.38 | -17.00 | -11.63 | 266.30 | -70.44 | 103.22 | 0.9494 | -239.1 | 999999 | |
| 2.63 | -17.00 | 3.92 | -17.00 | -10.16 | 267.00 | -69.73 | 101.77 | 0.9446 | 190.7 | 999999 | |
| 0.00 | 1.63 | 0.00 | 2.50 | -9.35 | 266.38 | -70.35 | 100.84 | 0.9475 | 89.0 | 76.2 | |
| 2.18 | 24.33 | 3.32 | 37.17 | -9.04 | 266.44 | -70.30 | 100.52 | 0.9471 | 385.4 | 157.7 | |
| 0.00 | 0.27 | 0.00 | 0.43 | -9.82 | 265.58 | -71.16 | 101.24 | 0.9521 | 387.0 | 375.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
