SDO HMI 2014-06-29 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.13 | 260.74 | 88.60 | 690.98 | -20.44 | 259.08 | -77.10 | 111.45 | 0.9818 | -65.6 | -175.3 | |
|
previous
or next observation for the same group /

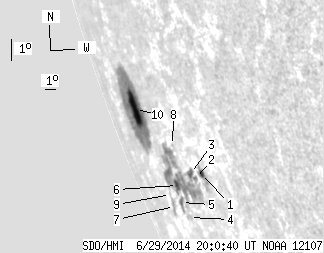

back to the solar disc SDO HMI 2014-06-29 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.27 | 12.53 | 6.14 | 23.47 | -21.16 | 263.73 | -72.45 | 112.80 | 0.9657 | 438.7 | 294.9 | |
| 1.18 | 112.12 | 2.36 | 259.12 | -21.37 | 262.78 | -73.39 | 112.87 | 0.9697 | 213.1 | -375.4 | |
| 3.72 | -2.00 | 7.61 | -2.00 | -21.22 | 262.39 | -73.79 | 112.67 | 0.9711 | 107.2 | 999999 | |
| 0.00 | 3.54 | 0.00 | 8.82 | -22.80 | 259.82 | -76.36 | 113.92 | 0.9809 | -256.0 | -248.4 | |
| 2.54 | -2.00 | 6.43 | -2.00 | -22.32 | 259.52 | -76.66 | 113.39 | 0.9816 | -318.8 | 999999 | |
| 4.45 | -2.00 | 10.89 | -2.00 | -21.73 | 259.95 | -76.23 | 112.85 | 0.9800 | -418.4 | 999999 | |
| 0.00 | 6.63 | 0.00 | 19.26 | -22.52 | 258.06 | -78.12 | 113.42 | 0.9859 | -150.0 | -146.0 | |
| 0.00 | 0.91 | 0.00 | 1.97 | -20.34 | 261.39 | -74.79 | 111.64 | 0.9744 | -179.0 | -156.6 | |
| 0.00 | 1.36 | 0.00 | 3.86 | -22.11 | 258.21 | -77.97 | 113.03 | 0.9853 | -264.0 | -222.7 | |
| 18.97 | 123.65 | 55.17 | 374.48 | -19.35 | 257.64 | -78.54 | 110.17 | 0.9859 | -47.7 | -54.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
