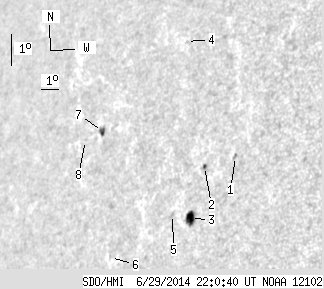

SDO HMI 2014-06-29 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.44 | 23.89 | 10.02 | 20.90 | 12.31 | 279.86 | -55.21 | 76.91 | 0.8251 | -361.0 | -110.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-29 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.77 | 13.30 | 283.08 | -51.99 | 75.29 | 0.7950 | 262.0 | 253.7 | |
| 0.82 | 1.91 | 0.69 | 1.60 | 12.93 | 281.58 | -53.49 | 75.95 | 0.8097 | -529.9 | -505.7 | |
| 7.99 | 11.44 | 6.73 | 9.64 | 11.31 | 281.31 | -53.76 | 77.98 | 0.8107 | -746.5 | -464.9 | |
| 0.00 | 0.91 | 0.00 | 0.82 | 16.77 | 279.15 | -55.92 | 71.67 | 0.8375 | 560.0 | 479.4 | |
| 0.00 | 2.00 | 0.00 | 1.72 | 11.40 | 280.33 | -54.74 | 77.98 | 0.8206 | 223.0 | 162.3 | |
| 0.00 | 0.82 | 0.00 | 0.76 | 9.95 | 277.24 | -57.83 | 79.96 | 0.8487 | -173.0 | -195.9 | |
| 2.63 | 4.27 | 2.60 | 4.22 | 13.79 | 275.43 | -59.64 | 75.62 | 0.8671 | -413.7 | -248.0 | |
| 0.00 | 0.36 | 0.00 | 0.37 | 13.47 | 274.48 | -60.59 | 76.07 | 0.8747 | 171.0 | 125.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
