SDO HMI 2014-06-29 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.06 | 519.71 | 114.77 | 685.33 | -10.90 | 268.20 | -66.87 | 102.92 | 0.9276 | 286.3 | 192.1 | |
|
previous
or next observation for the same group /

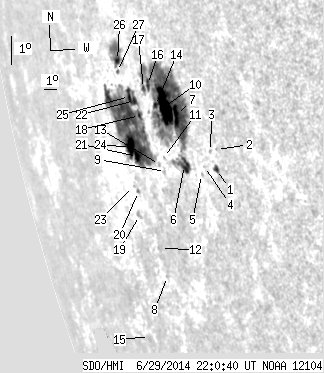

back to the solar disc SDO HMI 2014-06-29 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.00 | 4.27 | 2.24 | 4.78 | -12.12 | 272.66 | -62.40 | 104.94 | 0.8986 | -401.0 | -245.4 | |
| 0.00 | 1.00 | 0.00 | 1.10 | -11.48 | 272.92 | -62.15 | 104.28 | 0.8959 | -237.0 | -257.2 | |
| 0.00 | 1.18 | 0.00 | 1.33 | -11.56 | 272.48 | -62.58 | 104.29 | 0.8993 | -272.0 | -160.2 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -12.06 | 271.86 | -63.21 | 104.74 | 0.9044 | 483.0 | 526.7 | |
| 0.00 | 0.64 | 0.00 | 0.74 | -12.32 | 271.54 | -63.53 | 104.97 | 0.9070 | 501.0 | 451.7 | |
| 9.90 | 261.85 | 12.00 | 321.63 | -12.09 | 270.42 | -64.65 | 104.53 | 0.9146 | 520.8 | 328.0 | |
| 7.63 | -6.00 | 9.16 | -6.00 | -10.52 | 270.50 | -64.57 | 102.84 | 0.9124 | 1051.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.96 | -15.76 | 266.95 | -68.12 | 107.89 | 0.9399 | 128.0 | 171.4 | |
| 0.00 | 0.54 | 0.00 | 0.70 | -12.35 | 268.85 | -66.22 | 104.57 | 0.9252 | 50.0 | 52.8 | |
| 31.69 | -6.00 | 39.10 | -6.00 | -10.27 | 269.71 | -65.35 | 102.46 | 0.9176 | 588.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.40 | -11.90 | 268.92 | -66.15 | 104.10 | 0.9244 | 363.0 | 354.8 | |
| 0.00 | 3.27 | 0.00 | 4.66 | -14.87 | 266.97 | -68.10 | 106.95 | 0.9390 | 20.0 | 62.4 | |
| 0.00 | 1.45 | 0.00 | 1.90 | -12.14 | 268.48 | -66.59 | 104.29 | 0.9274 | 275.0 | 227.8 | |
| 2.27 | -6.00 | 2.88 | -6.00 | -10.27 | 269.03 | -66.04 | 102.36 | 0.9222 | -189.1 | 999999 | |
| 0.00 | 3.90 | 0.00 | 6.75 | -17.84 | 263.52 | -71.55 | 109.54 | 0.9594 | -169.0 | -136.9 | |
| 3.63 | -6.00 | 4.65 | -6.00 | -9.63 | 268.67 | -66.40 | 101.63 | 0.9240 | 287.5 | 999999 | |
| 1.63 | -6.00 | 2.13 | -6.00 | -9.77 | 268.30 | -66.77 | 101.73 | 0.9265 | 123.8 | 999999 | |
| 1.54 | 207.10 | 2.08 | 292.94 | -10.65 | 267.59 | -67.48 | 102.57 | 0.9317 | 391.8 | 93.3 | |
| 0.00 | 3.00 | 0.00 | 4.48 | -13.87 | 265.79 | -69.28 | 105.73 | 0.9448 | -588.0 | -498.0 | |
| 0.45 | 1.73 | 0.66 | 2.52 | -13.10 | 266.20 | -68.87 | 104.97 | 0.9419 | -543.4 | -504.3 | |
| 3.99 | -18.00 | 5.65 | -18.00 | -11.97 | 266.76 | -68.31 | 103.86 | 0.9377 | -812.5 | 999999 | |
| 3.45 | -18.00 | 4.68 | -18.00 | -10.19 | 267.39 | -67.68 | 102.05 | 0.9326 | 492.1 | 999999 | |
| 0.00 | 0.82 | 0.00 | 1.21 | -12.95 | 265.84 | -69.23 | 104.77 | 0.9438 | -464.0 | -466.8 | |
| 11.35 | -18.00 | 16.29 | -18.00 | -11.71 | 266.30 | -68.77 | 103.52 | 0.9402 | -333.3 | 999999 | |
| 5.81 | -18.00 | 8.01 | -18.00 | -10.08 | 267.02 | -68.05 | 101.89 | 0.9347 | 267.3 | 999999 | |
| 3.18 | 24.79 | 4.47 | 34.86 | -8.98 | 266.48 | -68.59 | 100.66 | 0.9372 | 477.1 | 219.9 | |
| 0.54 | 1.45 | 0.77 | 2.06 | -9.33 | 266.33 | -68.74 | 101.01 | 0.9383 | 176.5 | 107.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
