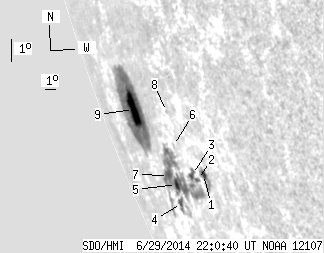

SDO HMI 2014-06-29 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.75 | 276.47 | 106.59 | 671.96 | -20.26 | 258.76 | -76.31 | 111.37 | 0.9793 | -71.8 | -140.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-29 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.81 | 12.53 | 6.74 | 22.15 | -21.17 | 263.66 | -71.41 | 112.98 | 0.9613 | 523.5 | 310.6 | |
| 1.36 | 107.95 | 2.55 | 235.31 | -21.38 | 262.77 | -72.30 | 113.05 | 0.9653 | 226.7 | -376.9 | |
| 3.72 | -2.00 | 7.11 | -2.00 | -21.23 | 262.41 | -72.66 | 112.84 | 0.9667 | 118.3 | 999999 | |
| 3.90 | 12.44 | 9.16 | 28.72 | -22.33 | 259.49 | -75.58 | 113.55 | 0.9782 | -294.4 | -316.0 | |
| 3.54 | -2.00 | 7.98 | -2.00 | -21.68 | 259.85 | -75.22 | 112.94 | 0.9766 | -427.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 2.37 | -20.32 | 261.39 | -73.68 | 111.77 | 0.9702 | -152.0 | -124.2 | |
| 7.81 | -2.00 | 18.50 | -2.00 | -21.41 | 259.20 | -75.87 | 112.58 | 0.9787 | -428.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.91 | -19.18 | 261.98 | -73.09 | 110.69 | 0.9670 | 154.0 | 161.7 | |
| 20.61 | 141.37 | 54.55 | 381.50 | -19.33 | 257.49 | -77.58 | 110.27 | 0.9832 | 23.8 | -8.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
