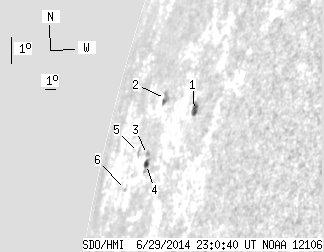

SDO HMI 2014-06-29 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.90 | 26.42 | 13.21 | 56.21 | 14.28 | 257.73 | -76.78 | 75.95 | 0.9729 | -248.8 | -4.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-29 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.09 | 6.99 | 6.94 | 11.91 | 15.15 | 261.31 | -73.21 | 74.99 | 0.9580 | -419.2 | -170.3 | |
| 0.00 | 7.26 | 0.00 | 15.79 | 15.35 | 257.45 | -77.06 | 74.87 | 0.9746 | 256.0 | 186.5 | |
| 0.00 | 2.54 | 0.00 | 5.75 | 13.56 | 256.89 | -77.62 | 76.71 | 0.9766 | -114.0 | -55.8 | |
| 2.81 | 5.63 | 6.27 | 12.50 | 13.26 | 257.08 | -77.44 | 77.02 | 0.9759 | -275.3 | -250.1 | |
| 0.00 | 3.09 | 0.00 | 7.78 | 13.56 | 255.47 | -79.05 | 76.71 | 0.9815 | -181.0 | -159.3 | |
| 0.00 | 0.91 | 0.00 | 2.48 | 12.37 | 254.69 | -79.83 | 77.92 | 0.9840 | 392.0 | 334.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
