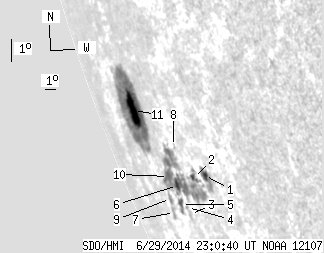

SDO HMI 2014-06-29 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.77 | 281.66 | 107.53 | 654.42 | -20.34 | 258.69 | -75.83 | 111.52 | 0.9778 | -64.6 | -131.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-29 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.63 | 15.16 | 7.97 | 26.05 | -21.18 | 263.61 | -70.90 | 113.07 | 0.9590 | 516.2 | 320.5 | |
| 3.36 | 105.78 | 6.23 | 217.54 | -21.34 | 262.27 | -72.25 | 113.02 | 0.9650 | 83.5 | -389.3 | |
| 0.00 | 3.27 | 0.00 | 7.04 | -22.63 | 260.14 | -74.38 | 114.03 | 0.9742 | -397.0 | -348.1 | |
| 0.00 | 1.09 | 0.00 | 2.35 | -22.40 | 260.12 | -74.40 | 113.79 | 0.9742 | -493.0 | -447.0 | |
| 4.27 | 6.36 | 9.64 | 14.40 | -22.33 | 259.46 | -75.06 | 113.63 | 0.9764 | -269.5 | -119.9 | |
| 4.00 | -2.00 | 8.65 | -2.00 | -21.68 | 259.94 | -74.58 | 113.03 | 0.9744 | -486.3 | 999999 | |
| 0.00 | 4.63 | 0.00 | 11.78 | -22.67 | 257.93 | -76.59 | 113.77 | 0.9816 | 9.0 | -64.6 | |
| 0.00 | 1.73 | 0.00 | 3.36 | -20.33 | 261.29 | -73.22 | 111.85 | 0.9684 | -226.0 | -218.9 | |
| 0.00 | 4.54 | 0.00 | 11.22 | -22.20 | 258.19 | -76.32 | 113.32 | 0.9805 | -216.0 | -116.1 | |
| 8.54 | -2.00 | 19.40 | -2.00 | -21.42 | 259.17 | -75.34 | 112.66 | 0.9769 | -394.9 | 999999 | |
| 21.97 | 139.10 | 55.64 | 360.68 | -19.33 | 257.54 | -76.98 | 110.34 | 0.9814 | 69.8 | 1.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
