SDO HMI 2014-06-30 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.26 | 21.53 | 9.53 | 18.44 | 12.43 | 279.61 | -54.35 | 76.69 | 0.8166 | -510.2 | -220.0 | |
|
previous
or next observation for the same group /

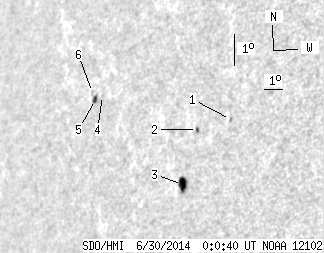

back to the solar disc SDO HMI 2014-06-30 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 1.44 | 13.38 | 283.15 | -50.81 | 75.01 | 0.7828 | 406.0 | 310.2 | |
| 0.73 | 1.82 | 0.60 | 1.49 | 13.02 | 281.59 | -52.37 | 75.71 | 0.7985 | -534.6 | -479.7 | |
| 8.35 | 11.44 | 6.86 | 9.39 | 11.30 | 281.30 | -52.66 | 77.89 | 0.7996 | -752.0 | -430.4 | |
| 0.00 | 1.18 | 0.00 | 1.11 | 13.87 | 276.05 | -57.91 | 75.36 | 0.8522 | -286.0 | -236.0 | |
| 2.18 | 4.09 | 2.07 | 3.88 | 13.73 | 275.69 | -58.28 | 75.56 | 0.8553 | -416.5 | -269.4 | |
| 0.00 | 1.18 | 0.00 | 1.13 | 13.94 | 275.42 | -58.54 | 75.35 | 0.8577 | -171.0 | -123.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
