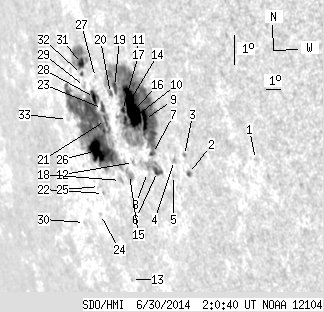

SDO HMI 2014-06-30 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.44 | 590.54 | 118.69 | 712.14 | -10.78 | 268.24 | -64.62 | 103.13 | 0.9127 | 258.6 | 226.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 1.17 | -11.55 | 276.90 | -55.96 | 105.58 | 0.8449 | 547.0 | 414.9 | |
| 1.09 | 2.27 | 1.13 | 2.36 | -12.17 | 272.71 | -60.15 | 105.42 | 0.8814 | -553.3 | -477.1 | |
| 0.00 | 1.63 | 0.00 | 1.70 | -11.60 | 272.67 | -60.19 | 104.78 | 0.8810 | -412.0 | -314.0 | |
| 0.00 | 2.82 | 0.00 | 3.00 | -11.79 | 271.96 | -60.90 | 104.86 | 0.8868 | 460.0 | 459.3 | |
| 0.00 | 0.91 | 0.00 | 0.98 | -12.27 | 271.71 | -61.15 | 105.35 | 0.8894 | 285.0 | 353.0 | |
| 4.54 | 20.62 | 5.05 | 23.14 | -12.19 | 270.68 | -62.18 | 105.07 | 0.8971 | 375.2 | 440.9 | |
| 2.00 | 271.92 | 2.22 | 308.76 | -11.63 | 270.57 | -62.29 | 104.43 | 0.8972 | 598.9 | 332.8 | |
| 0.00 | 0.73 | 0.00 | 0.83 | -12.25 | 269.97 | -62.89 | 105.02 | 0.9024 | 275.0 | 271.1 | |
| 6.72 | -7.00 | 7.47 | -7.00 | -10.57 | 270.43 | -62.43 | 103.24 | 0.8970 | 1061.3 | 999999 | |
| 17.07 | -7.00 | 19.37 | -7.00 | -10.50 | 269.84 | -63.02 | 103.07 | 0.9013 | 778.5 | 999999 | |
| 0.00 | 2.72 | 0.00 | 3.01 | -8.89 | 270.32 | -62.54 | 101.37 | 0.8960 | 128.0 | 168.0 | |
| 0.00 | 2.18 | 0.00 | 2.56 | -11.97 | 269.11 | -63.75 | 104.57 | 0.9082 | 472.0 | 382.5 | |
| 0.00 | 0.64 | 0.00 | 0.83 | -15.78 | 266.93 | -65.94 | 108.29 | 0.9270 | 345.0 | 302.9 | |
| 18.53 | -7.00 | 21.16 | -7.00 | -10.04 | 269.60 | -63.26 | 102.53 | 0.9027 | 605.1 | 999999 | |
| 0.00 | 7.72 | 0.00 | 9.23 | -12.37 | 268.64 | -64.22 | 104.92 | 0.9120 | 219.0 | 200.0 | |
| 2.36 | -7.00 | 2.76 | -7.00 | -10.66 | 269.01 | -63.85 | 103.12 | 0.9075 | -125.2 | 999999 | |
| 2.09 | -7.00 | 2.44 | -7.00 | -10.35 | 268.99 | -63.87 | 102.78 | 0.9074 | -212.0 | 999999 | |
| 0.00 | 3.18 | 0.00 | 3.91 | -12.59 | 267.88 | -64.98 | 105.04 | 0.9174 | -114.0 | -97.2 | |
| 4.09 | -7.00 | 4.81 | -7.00 | -9.62 | 268.69 | -64.17 | 101.93 | 0.9088 | 403.6 | 999999 | |
| 1.54 | -7.00 | 1.84 | -7.00 | -9.85 | 268.32 | -64.54 | 102.13 | 0.9116 | 221.1 | 999999 | |
| 2.72 | 231.69 | 3.36 | 298.73 | -10.72 | 267.60 | -65.26 | 102.97 | 0.9174 | 431.7 | 138.5 | |
| 0.00 | 1.09 | 0.00 | 1.43 | -13.07 | 266.32 | -66.54 | 105.31 | 0.9280 | -401.0 | -376.4 | |
| 2.91 | -21.00 | 3.58 | -21.00 | -10.35 | 267.53 | -65.33 | 102.56 | 0.9175 | 512.7 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.37 | -13.77 | 265.68 | -67.18 | 105.94 | 0.9326 | -522.0 | -442.0 | |
| 0.00 | 1.45 | 0.00 | 1.93 | -12.86 | 266.11 | -66.75 | 105.05 | 0.9291 | -596.0 | -561.0 | |
| 22.52 | -21.00 | 29.20 | -21.00 | -11.71 | 266.46 | -66.40 | 103.87 | 0.9258 | -543.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.23 | -9.39 | 267.37 | -65.49 | 101.50 | 0.9177 | 286.0 | 279.0 | |
| 5.36 | -21.00 | 6.73 | -21.00 | -10.03 | 267.05 | -65.81 | 102.15 | 0.9205 | 531.1 | 999999 | |
| 0.00 | 2.18 | 0.00 | 2.81 | -9.72 | 266.41 | -66.45 | 101.72 | 0.9245 | 302.0 | 256.6 | |
| 0.00 | 0.64 | 0.00 | 0.93 | -14.09 | 264.13 | -68.73 | 106.05 | 0.9420 | -297.0 | -309.0 | |
| 4.90 | 32.88 | 6.28 | 42.21 | -9.00 | 266.45 | -66.41 | 100.95 | 0.9236 | 504.8 | 166.5 | |
| 1.00 | -31.00 | 1.29 | -31.00 | -9.35 | 266.32 | -66.54 | 101.31 | 0.9247 | 208.7 | 999999 | |
| 0.00 | 0.73 | 0.00 | 1.02 | -10.83 | 264.52 | -68.34 | 102.66 | 0.9371 | -235.0 | -185.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
