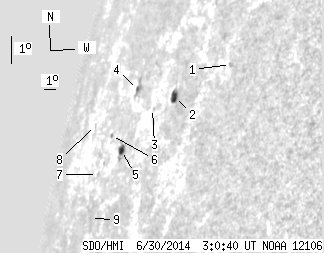

SDO HMI 2014-06-30 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.54 | 32.24 | 18.07 | 58.85 | 14.20 | 257.89 | -74.42 | 75.99 | 0.9626 | -187.2 | 35.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 2.19 | 16.35 | 265.46 | -66.85 | 73.40 | 0.9223 | -222.0 | -187.1 | |
| 5.18 | 7.90 | 7.85 | 11.97 | 15.13 | 261.37 | -70.94 | 74.94 | 0.9463 | -373.0 | -199.5 | |
| 0.00 | 0.45 | 0.00 | 0.76 | 14.70 | 259.45 | -72.86 | 75.46 | 0.9562 | -26.0 | -109.6 | |
| 1.09 | 8.45 | 2.07 | 15.97 | 15.20 | 257.24 | -75.07 | 74.99 | 0.9665 | 273.8 | 217.5 | |
| 4.27 | 9.17 | 8.15 | 17.58 | 13.27 | 257.10 | -75.21 | 76.99 | 0.9669 | -311.6 | -155.4 | |
| 0.00 | 1.45 | 0.00 | 3.10 | 13.67 | 255.39 | -76.92 | 76.60 | 0.9740 | -73.0 | -98.7 | |
| 0.00 | 0.64 | 0.00 | 1.44 | 12.41 | 254.66 | -77.65 | 77.89 | 0.9767 | 334.0 | 351.3 | |
| 0.00 | 0.91 | 0.00 | 2.42 | 13.86 | 252.63 | -79.68 | 76.41 | 0.9835 | 217.0 | 219.3 | |
| 0.00 | 1.54 | 0.00 | 3.42 | 11.05 | 254.92 | -77.39 | 79.29 | 0.9757 | 164.0 | 143.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
