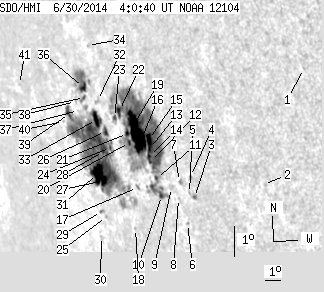

SDO HMI 2014-06-30 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.99 | 625.27 | 129.48 | 725.88 | -10.62 | 268.03 | -63.73 | 103.11 | 0.9062 | 302.5 | 227.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.37 | -7.87 | 279.85 | -51.91 | 102.03 | 0.7994 | 492.0 | 437.8 | |
| 0.00 | 0.73 | 0.00 | 0.65 | -11.60 | 276.88 | -54.88 | 105.88 | 0.8352 | 470.0 | 500.8 | |
| 0.73 | 1.91 | 0.73 | 1.92 | -12.18 | 272.72 | -59.04 | 105.66 | 0.8725 | -592.0 | -506.6 | |
| 0.00 | 0.91 | 0.00 | 0.91 | -11.52 | 272.71 | -59.05 | 104.91 | 0.8716 | -334.0 | -297.0 | |
| 0.00 | 1.00 | 0.00 | 1.01 | -12.06 | 272.45 | -59.31 | 105.47 | 0.8745 | -207.0 | -192.6 | |
| 0.00 | 1.09 | 0.00 | 1.13 | -13.03 | 271.96 | -59.80 | 106.46 | 0.8800 | 503.0 | 442.7 | |
| 0.00 | 1.27 | 0.00 | 1.31 | -11.71 | 271.96 | -59.80 | 104.98 | 0.8780 | 452.0 | 356.1 | |
| 0.00 | 0.82 | 0.00 | 0.85 | -12.25 | 271.70 | -60.06 | 105.54 | 0.8809 | 506.0 | 399.7 | |
| 0.00 | 2.36 | 0.00 | 2.47 | -11.92 | 271.38 | -60.38 | 105.11 | 0.8829 | 303.0 | 275.5 | |
| 2.91 | 298.86 | 3.12 | 326.42 | -12.20 | 270.63 | -61.13 | 105.28 | 0.8892 | 219.6 | 357.4 | |
| 1.00 | -10.00 | 1.07 | -10.00 | -11.67 | 270.51 | -61.25 | 104.67 | 0.8894 | 630.7 | 999999 | |
| 0.27 | -10.00 | 0.29 | -10.00 | -11.15 | 270.31 | -61.45 | 104.05 | 0.8903 | 606.0 | 999999 | |
| 1.54 | -10.00 | 1.66 | -10.00 | -10.74 | 270.39 | -61.37 | 103.61 | 0.8891 | 930.7 | 999999 | |
| 1.91 | -10.00 | 2.06 | -10.00 | -10.99 | 270.30 | -61.46 | 103.88 | 0.8901 | 603.1 | 999999 | |
| 5.36 | -10.00 | 5.74 | -10.00 | -10.46 | 270.43 | -61.33 | 103.30 | 0.8885 | 1161.0 | 999999 | |
| 18.62 | -10.00 | 20.34 | -10.00 | -10.54 | 269.87 | -61.89 | 103.31 | 0.8929 | 810.9 | 999999 | |
| 0.45 | 1.82 | 0.51 | 2.05 | -12.02 | 269.10 | -62.66 | 104.80 | 0.9005 | 406.6 | 320.7 | |
| 0.00 | 1.00 | 0.00 | 1.17 | -13.34 | 268.36 | -63.40 | 106.12 | 0.9074 | -40.0 | -103.6 | |
| 20.71 | -10.00 | 22.79 | -10.00 | -10.02 | 269.58 | -62.18 | 102.68 | 0.8945 | 625.0 | 999999 | |
| 1.36 | -10.00 | 1.53 | -10.00 | -10.61 | 269.11 | -62.65 | 103.25 | 0.8988 | -83.1 | 999999 | |
| 1.82 | -10.00 | 2.04 | -10.00 | -10.33 | 269.07 | -62.69 | 102.94 | 0.8987 | -168.2 | 999999 | |
| 5.72 | -10.00 | 6.45 | -10.00 | -9.62 | 268.77 | -62.99 | 102.12 | 0.9002 | 244.4 | 999999 | |
| 1.45 | -10.00 | 1.67 | -10.00 | -9.86 | 268.34 | -63.42 | 102.31 | 0.9036 | 228.3 | 999999 | |
| 1.36 | 272.61 | 1.61 | 335.42 | -10.82 | 267.70 | -64.07 | 103.27 | 0.9093 | 404.4 | 130.9 | |
| 0.00 | 0.91 | 0.00 | 1.14 | -13.05 | 266.39 | -65.37 | 105.47 | 0.9205 | -439.0 | -484.1 | |
| 3.54 | -24.00 | 4.19 | -24.00 | -10.33 | 267.53 | -64.23 | 102.71 | 0.9099 | 487.7 | 999999 | |
| 5.27 | -24.00 | 6.48 | -24.00 | -11.90 | 266.80 | -64.96 | 104.30 | 0.9166 | -930.1 | 999999 | |
| 0.27 | -24.00 | 0.33 | -24.00 | -10.97 | 267.13 | -64.63 | 103.35 | 0.9134 | -335.0 | 999999 | |
| 0.64 | 1.91 | 0.81 | 2.42 | -12.91 | 266.08 | -65.68 | 105.27 | 0.9224 | -584.9 | -543.6 | |
| 0.00 | 0.27 | 0.00 | 0.35 | -13.72 | 265.64 | -66.12 | 106.06 | 0.9260 | -548.0 | -508.3 | |
| 16.99 | -24.00 | 21.18 | -24.00 | -11.70 | 266.36 | -65.40 | 104.01 | 0.9193 | -415.4 | 999999 | |
| 0.00 | 2.91 | 0.00 | 3.46 | -9.38 | 267.31 | -64.46 | 101.63 | 0.9106 | 396.0 | 270.4 | |
| 8.90 | -24.00 | 10.72 | -24.00 | -9.98 | 267.01 | -64.75 | 102.25 | 0.9132 | 554.1 | 999999 | |
| 0.00 | 0.55 | 0.00 | 0.65 | -7.68 | 267.13 | -64.63 | 99.75 | 0.9104 | 447.0 | 388.5 | |
| 1.18 | 30.89 | 1.46 | 38.07 | -9.32 | 266.37 | -65.40 | 101.44 | 0.9171 | 292.9 | 145.7 | |
| 4.54 | -35.00 | 5.58 | -35.00 | -9.01 | 266.40 | -65.36 | 101.11 | 0.9165 | 491.3 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.34 | -9.76 | 265.75 | -66.02 | 101.83 | 0.9216 | 396.0 | 422.3 | |
| 0.00 | 1.00 | 0.00 | 1.27 | -9.48 | 265.62 | -66.14 | 101.52 | 0.9222 | 43.0 | 66.7 | |
| 5.45 | -24.00 | 7.12 | -24.00 | -9.88 | 264.99 | -66.77 | 101.86 | 0.9267 | 371.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 1.22 | -10.16 | 264.39 | -67.37 | 102.08 | 0.9307 | 253.0 | 193.3 | |
| 0.00 | 0.82 | 0.00 | 1.28 | -9.16 | 260.98 | -70.78 | 100.62 | 0.9498 | -82.0 | -84.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
