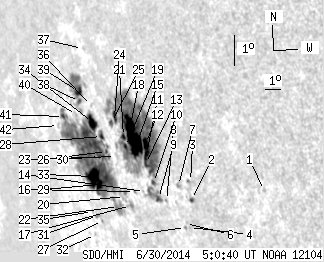

SDO HMI 2014-06-30 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.47 | 618.77 | 122.23 | 704.58 | -10.75 | 268.16 | -63.05 | 103.36 | 0.9015 | 311.2 | 231.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.28 | -11.66 | 277.01 | -54.20 | 106.12 | 0.8290 | 491.0 | 386.2 | |
| 1.27 | 2.45 | 1.26 | 2.43 | -12.12 | 272.73 | -58.48 | 105.71 | 0.8678 | -604.1 | -504.5 | |
| 0.00 | 3.00 | 0.00 | 2.95 | -11.55 | 272.87 | -58.35 | 105.09 | 0.8658 | -82.0 | -158.4 | |
| 0.00 | 1.45 | 0.00 | 1.47 | -13.02 | 272.27 | -58.94 | 106.64 | 0.8730 | 240.0 | 268.4 | |
| 0.00 | 0.82 | 0.00 | 0.83 | -13.03 | 272.02 | -59.19 | 106.59 | 0.8751 | 453.0 | 446.0 | |
| 0.00 | 1.18 | 0.00 | 1.20 | -12.90 | 272.07 | -59.14 | 106.46 | 0.8744 | 241.0 | 231.8 | |
| 0.00 | 2.82 | 0.00 | 2.84 | -11.71 | 272.09 | -59.13 | 105.11 | 0.8725 | 445.0 | 372.3 | |
| 0.00 | 0.82 | 0.00 | 0.85 | -12.22 | 271.16 | -60.06 | 105.51 | 0.8808 | 307.0 | 314.3 | |
| 2.54 | 15.35 | 2.68 | 16.30 | -12.18 | 270.66 | -60.55 | 105.37 | 0.8846 | 283.3 | 456.8 | |
| 1.27 | 270.18 | 1.34 | 289.75 | -11.68 | 270.53 | -60.68 | 104.79 | 0.8850 | 662.6 | 363.4 | |
| 3.82 | -10.00 | 4.02 | -10.00 | -10.78 | 270.41 | -60.80 | 103.75 | 0.8848 | 992.4 | 999999 | |
| 4.45 | -10.00 | 4.68 | -10.00 | -10.46 | 270.45 | -60.76 | 103.41 | 0.8840 | 1170.3 | 999999 | |
| 1.82 | -10.00 | 1.93 | -10.00 | -11.10 | 270.23 | -60.98 | 104.08 | 0.8866 | 568.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.18 | -11.99 | 269.83 | -61.38 | 105.01 | 0.8909 | 306.0 | 341.2 | |
| 19.90 | -10.00 | 21.35 | -10.00 | -10.52 | 269.85 | -61.36 | 103.37 | 0.8888 | 804.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.21 | -12.02 | 269.15 | -62.06 | 104.92 | 0.8960 | 436.0 | 382.3 | |
| 0.00 | 5.36 | 0.00 | 6.04 | -12.48 | 268.69 | -62.53 | 105.34 | 0.9001 | 158.0 | 168.5 | |
| 19.62 | -10.00 | 21.20 | -10.00 | -10.06 | 269.55 | -61.67 | 102.81 | 0.8906 | 671.7 | 999999 | |
| 1.91 | -10.00 | 2.10 | -10.00 | -10.61 | 269.09 | -62.12 | 103.35 | 0.8948 | -103.1 | 999999 | |
| 0.00 | 5.81 | 0.00 | 6.61 | -12.21 | 268.39 | -62.82 | 104.99 | 0.9019 | 194.0 | 223.9 | |
| 2.54 | -10.00 | 2.80 | -10.00 | -10.30 | 269.07 | -62.15 | 103.00 | 0.8946 | -168.9 | 999999 | |
| 0.00 | 13.35 | 0.00 | 15.53 | -12.55 | 267.83 | -63.39 | 105.27 | 0.9064 | -116.0 | -142.9 | |
| 0.00 | 1.09 | 0.00 | 1.23 | -10.96 | 268.28 | -62.93 | 103.60 | 0.9012 | 323.0 | 322.5 | |
| 4.00 | -10.00 | 4.44 | -10.00 | -9.70 | 268.67 | -62.54 | 102.27 | 0.8969 | 325.6 | 999999 | |
| 1.73 | -10.00 | 1.94 | -10.00 | -9.89 | 268.40 | -62.82 | 102.44 | 0.8992 | 212.6 | 999999 | |
| 0.82 | 247.20 | 0.95 | 299.16 | -10.83 | 267.71 | -63.51 | 103.37 | 0.9053 | 322.6 | 152.4 | |
| 0.00 | 1.00 | 0.00 | 1.23 | -13.05 | 266.43 | -64.78 | 105.58 | 0.9166 | -540.0 | -528.4 | |
| 2.54 | -26.00 | 2.95 | -26.00 | -10.37 | 267.53 | -63.68 | 102.83 | 0.9061 | 489.6 | 999999 | |
| 4.54 | -26.00 | 5.48 | -26.00 | -11.91 | 266.75 | -64.46 | 104.39 | 0.9132 | -989.5 | 999999 | |
| 0.91 | -26.00 | 1.07 | -26.00 | -11.01 | 267.14 | -64.08 | 103.47 | 0.9095 | -387.4 | 999999 | |
| 0.00 | 1.73 | 0.00 | 2.14 | -12.91 | 266.13 | -65.08 | 105.37 | 0.9185 | -615.0 | -601.5 | |
| 0.00 | 0.27 | 0.00 | 0.35 | -13.53 | 265.65 | -65.56 | 105.96 | 0.9222 | -496.0 | -495.7 | |
| 16.81 | -26.00 | 20.50 | -26.00 | -11.67 | 266.42 | -64.79 | 104.08 | 0.9152 | -456.5 | 999999 | |
| 9.63 | -26.00 | 11.36 | -26.00 | -9.95 | 267.05 | -64.17 | 102.31 | 0.9091 | 594.4 | 999999 | |
| 0.00 | 0.82 | 0.00 | 1.03 | -12.80 | 265.81 | -65.41 | 105.20 | 0.9205 | -410.0 | -411.8 | |
| 0.00 | 0.64 | 0.00 | 0.74 | -9.42 | 267.17 | -64.05 | 101.74 | 0.9077 | 352.0 | 336.4 | |
| 0.00 | 0.73 | 0.00 | 0.85 | -7.65 | 267.08 | -64.13 | 99.79 | 0.9067 | 450.0 | 404.5 | |
| 1.45 | 36.16 | 1.76 | 43.67 | -9.33 | 266.33 | -64.89 | 101.53 | 0.9136 | 371.4 | 166.5 | |
| 5.45 | -38.00 | 6.56 | -38.00 | -9.02 | 266.36 | -64.85 | 101.19 | 0.9130 | 497.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.45 | -9.75 | 265.95 | -65.26 | 101.93 | 0.9166 | 317.0 | 314.5 | |
| 1.45 | -26.00 | 1.86 | -26.00 | -9.86 | 264.92 | -66.30 | 101.91 | 0.9236 | 338.1 | 999999 | |
| 0.00 | 1.73 | 0.00 | 2.26 | -10.17 | 264.40 | -66.82 | 102.16 | 0.9272 | 224.0 | 164.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
