SDO HMI 2014-06-30 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.82 | 28.25 | 15.80 | 47.73 | 14.38 | 258.09 | -73.12 | 75.79 | 0.9570 | -289.7 | 8.0 | |
|
previous
or next observation for the same group /

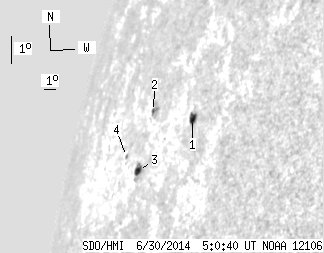

back to the solar disc SDO HMI 2014-06-30 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.91 | 8.09 | 7.05 | 11.63 | 15.12 | 261.32 | -69.90 | 74.91 | 0.9404 | -374.1 | -165.7 | |
| 0.82 | 8.99 | 1.45 | 15.84 | 15.16 | 257.25 | -73.96 | 75.01 | 0.9615 | 284.7 | 256.5 | |
| 4.09 | 9.63 | 7.30 | 17.19 | 13.30 | 257.17 | -74.04 | 76.95 | 0.9617 | -343.7 | -226.3 | |
| 0.00 | 1.54 | 0.00 | 3.07 | 13.66 | 255.37 | -75.84 | 76.61 | 0.9696 | -133.0 | -142.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
