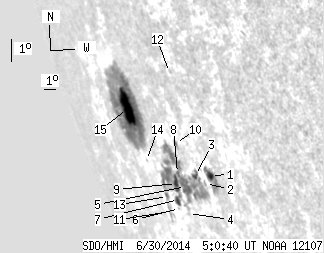

SDO HMI 2014-06-30 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.42 | 330.48 | 107.39 | 618.22 | -20.35 | 258.85 | -72.36 | 112.02 | 0.9646 | -18.5 | -88.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.36 | 19.80 | 6.41 | 29.14 | -21.18 | 263.63 | -67.59 | 113.68 | 0.9427 | 624.4 | 321.4 | |
| 0.00 | 1.45 | 0.00 | 2.21 | -21.48 | 262.89 | -68.32 | 113.85 | 0.9469 | 224.0 | 198.5 | |
| 2.73 | 125.73 | 4.28 | 215.54 | -21.25 | 262.22 | -69.00 | 113.49 | 0.9501 | 215.5 | -368.2 | |
| 0.00 | 1.45 | 0.00 | 2.59 | -22.61 | 259.98 | -71.23 | 114.51 | 0.9618 | -259.0 | -245.1 | |
| 11.63 | -3.00 | 19.64 | -3.00 | -21.68 | 260.79 | -70.42 | 113.68 | 0.9573 | -607.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.51 | -22.48 | 259.19 | -72.02 | 114.24 | 0.9650 | -292.0 | -219.3 | |
| 4.27 | -3.00 | 7.81 | -3.00 | -22.17 | 259.49 | -71.73 | 113.97 | 0.9635 | -383.3 | 999999 | |
| 0.27 | -3.00 | 0.47 | -3.00 | -21.26 | 260.47 | -70.75 | 113.20 | 0.9585 | -590.0 | 999999 | |
| 6.54 | -3.00 | 11.58 | -3.00 | -21.62 | 259.95 | -71.26 | 113.48 | 0.9611 | -474.4 | 999999 | |
| 0.73 | 2.63 | 1.18 | 4.26 | -20.23 | 261.38 | -69.83 | 112.29 | 0.9532 | -132.5 | -199.7 | |
| 0.00 | 7.45 | 0.00 | 14.89 | -22.64 | 257.97 | -73.25 | 114.21 | 0.9701 | 113.0 | 121.9 | |
| 0.00 | 0.91 | 0.00 | 1.33 | -17.84 | 263.02 | -68.20 | 110.08 | 0.9425 | -177.0 | -129.4 | |
| 0.00 | 3.18 | 0.00 | 6.20 | -22.13 | 258.33 | -72.88 | 113.74 | 0.9683 | -239.0 | -130.8 | |
| 0.00 | 0.27 | 0.00 | 0.55 | -20.98 | 257.44 | -73.77 | 112.44 | 0.9710 | 112.0 | 158.0 | |
| 27.89 | 167.34 | 56.02 | 341.00 | -19.27 | 257.38 | -73.83 | 110.69 | 0.9702 | 265.9 | 38.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
