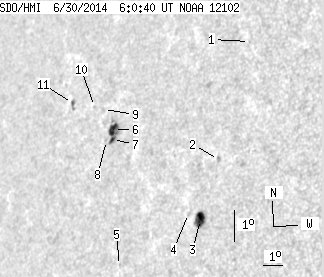

SDO HMI 2014-06-30 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.45 | 43.99 | 15.84 | 36.44 | 13.05 | 277.84 | -52.82 | 75.78 | 0.8019 | -462.0 | -172.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.63 | 16.82 | 282.04 | -48.63 | 70.22 | 0.7657 | -414.0 | -327.7 | |
| 0.00 | 2.82 | 0.00 | 2.15 | 13.10 | 281.68 | -48.99 | 75.10 | 0.7628 | -753.0 | -503.9 | |
| 10.18 | 13.54 | 7.79 | 10.37 | 11.23 | 281.28 | -49.38 | 77.61 | 0.7646 | -780.8 | -463.1 | |
| 0.00 | 1.36 | 0.00 | 1.06 | 11.39 | 280.66 | -50.00 | 77.48 | 0.7715 | -489.0 | -405.1 | |
| 0.00 | 0.64 | 0.00 | 0.53 | 9.67 | 277.60 | -53.06 | 79.98 | 0.8023 | -404.0 | -331.1 | |
| 6.81 | 17.17 | 5.89 | 14.82 | 13.84 | 276.10 | -54.56 | 75.02 | 0.8211 | -513.9 | -383.3 | |
| 1.82 | -6.00 | 1.57 | -6.00 | 13.53 | 276.15 | -54.51 | 75.39 | 0.8202 | -479.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.95 | 13.48 | 275.84 | -54.83 | 75.49 | 0.8232 | 327.0 | 273.9 | |
| 0.00 | 1.82 | 0.00 | 1.60 | 14.43 | 275.34 | -55.33 | 74.40 | 0.8290 | 215.0 | 182.6 | |
| 0.00 | 0.82 | 0.00 | 0.73 | 14.51 | 274.80 | -55.86 | 74.39 | 0.8341 | 540.0 | 430.9 | |
| 0.64 | 3.91 | 0.59 | 3.60 | 14.55 | 273.52 | -57.14 | 74.50 | 0.8459 | 488.4 | 496.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
