SDO HMI 2014-06-30 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.91 | 655.59 | 118.46 | 733.12 | -10.72 | 268.15 | -62.51 | 103.41 | 0.8976 | 308.4 | 220.1 | |
|
previous
or next observation for the same group /

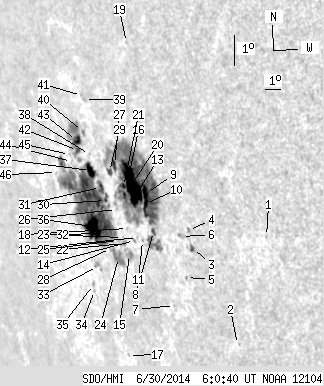

back to the solar disc SDO HMI 2014-06-30 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.24 | -11.57 | 277.07 | -53.59 | 106.16 | 0.8231 | 298.0 | 371.3 | |
| 0.00 | 0.36 | 0.00 | 0.35 | -15.10 | 274.26 | -56.40 | 109.58 | 0.8556 | 284.0 | 358.2 | |
| 1.36 | 3.18 | 1.33 | 3.10 | -12.12 | 272.77 | -57.89 | 105.84 | 0.8628 | -562.5 | -399.9 | |
| 0.00 | 1.45 | 0.00 | 1.41 | -11.56 | 272.73 | -57.94 | 105.18 | 0.8623 | -414.0 | -300.6 | |
| 0.00 | 0.91 | 0.00 | 0.91 | -13.07 | 272.07 | -58.60 | 106.76 | 0.8703 | 404.0 | 414.2 | |
| 0.00 | 3.45 | 0.00 | 3.41 | -11.77 | 272.24 | -58.42 | 105.32 | 0.8668 | 445.0 | 374.7 | |
| 0.00 | 0.64 | 0.00 | 0.66 | -14.00 | 270.95 | -59.72 | 107.57 | 0.8808 | 282.0 | 278.3 | |
| 1.82 | 305.17 | 1.88 | 321.77 | -11.68 | 270.55 | -60.11 | 104.90 | 0.8805 | 655.5 | 347.4 | |
| 5.27 | -8.00 | 5.45 | -8.00 | -10.50 | 270.46 | -60.20 | 103.55 | 0.8796 | 1162.3 | 999999 | |
| 3.09 | -8.00 | 3.21 | -8.00 | -10.81 | 270.36 | -60.31 | 103.89 | 0.8809 | 918.9 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.87 | -12.00 | 269.73 | -60.94 | 105.10 | 0.8874 | 352.0 | 277.3 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -11.92 | 269.44 | -61.23 | 104.95 | 0.8896 | 450.0 | 413.0 | |
| 18.90 | -8.00 | 19.92 | -8.00 | -10.52 | 269.88 | -60.78 | 103.47 | 0.8843 | 834.5 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.97 | -12.02 | 269.20 | -61.47 | 105.03 | 0.8915 | 409.0 | 342.2 | |
| 0.00 | 8.36 | 0.00 | 9.26 | -12.49 | 268.68 | -61.99 | 105.44 | 0.8961 | 208.0 | 171.1 | |
| 20.62 | -8.00 | 21.90 | -8.00 | -10.04 | 269.53 | -61.14 | 102.87 | 0.8865 | 661.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.33 | -15.77 | 266.97 | -63.69 | 108.70 | 0.9125 | 342.0 | 266.0 | |
| 0.00 | 0.82 | 0.00 | 0.90 | -11.66 | 268.88 | -61.79 | 104.57 | 0.8935 | -315.0 | -244.0 | |
| 0.00 | 1.00 | 0.00 | 1.01 | -5.81 | 270.47 | -60.20 | 98.24 | 0.8742 | 281.0 | 253.5 | |
| 2.36 | -8.00 | 2.55 | -8.00 | -10.62 | 269.07 | -61.60 | 103.44 | 0.8908 | -85.7 | 999999 | |
| 2.27 | -8.00 | 2.45 | -8.00 | -10.34 | 269.10 | -61.56 | 103.14 | 0.8902 | -94.7 | 999999 | |
| 0.36 | 3.45 | 0.40 | 3.85 | -12.15 | 268.41 | -62.25 | 105.03 | 0.8976 | 409.8 | 255.4 | |
| 0.00 | 0.73 | 0.00 | 0.81 | -11.96 | 268.42 | -62.24 | 104.82 | 0.8973 | 262.0 | 279.1 | |
| 0.00 | 14.63 | 0.00 | 16.64 | -12.62 | 267.87 | -62.79 | 105.44 | 0.9022 | -157.0 | -114.7 | |
| 0.00 | 1.73 | 0.00 | 1.95 | -12.07 | 268.04 | -62.63 | 104.88 | 0.9003 | -181.0 | -147.6 | |
| 0.00 | 0.91 | 0.00 | 1.01 | -11.09 | 268.36 | -62.30 | 103.85 | 0.8967 | 259.0 | 204.6 | |
| 3.63 | -8.00 | 3.96 | -8.00 | -9.67 | 268.73 | -61.93 | 102.33 | 0.8923 | 373.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.36 | -12.35 | 267.43 | -63.23 | 105.08 | 0.9050 | -510.0 | -509.7 | |
| 2.27 | -8.00 | 2.51 | -8.00 | -9.90 | 268.32 | -62.35 | 102.53 | 0.8957 | 247.1 | 999999 | |
| 1.09 | 252.39 | 1.24 | 299.55 | -10.83 | 267.71 | -62.96 | 103.46 | 0.9013 | 316.0 | 157.2 | |
| 4.36 | -30.00 | 4.96 | -30.00 | -10.44 | 267.51 | -63.15 | 102.99 | 0.9023 | 525.0 | 999999 | |
| 4.36 | -30.00 | 5.16 | -30.00 | -11.91 | 266.71 | -63.96 | 104.48 | 0.9097 | -1002.2 | 999999 | |
| 0.00 | 4.63 | 0.00 | 5.61 | -12.97 | 266.21 | -64.45 | 105.54 | 0.9143 | -570.0 | -561.5 | |
| 0.00 | 0.73 | 0.00 | 0.91 | -13.76 | 265.59 | -65.08 | 106.29 | 0.9194 | -385.0 | -379.6 | |
| 0.00 | 1.45 | 0.00 | 1.81 | -13.57 | 265.61 | -65.05 | 106.09 | 0.9190 | -509.0 | -447.9 | |
| 17.53 | -30.00 | 20.95 | -30.00 | -11.71 | 266.36 | -64.30 | 104.20 | 0.9119 | -477.7 | 999999 | |
| 8.99 | -30.00 | 10.41 | -30.00 | -9.93 | 267.00 | -63.66 | 102.35 | 0.9055 | 592.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.15 | -9.42 | 267.11 | -63.56 | 101.82 | 0.9042 | 290.0 | 285.5 | |
| 0.00 | 2.00 | 0.00 | 2.27 | -7.71 | 267.29 | -63.38 | 99.95 | 0.9012 | 344.0 | 327.7 | |
| 0.55 | 2.63 | 0.63 | 3.04 | -8.72 | 266.85 | -63.82 | 101.01 | 0.9054 | 588.7 | 503.5 | |
| 0.00 | 0.73 | 0.00 | 0.83 | -7.59 | 267.11 | -63.56 | 99.80 | 0.9025 | 495.0 | 385.0 | |
| 2.45 | 37.07 | 2.91 | 43.96 | -9.34 | 266.28 | -64.38 | 101.60 | 0.9100 | 385.7 | 126.4 | |
| 5.63 | -42.00 | 6.64 | -42.00 | -9.02 | 266.32 | -64.35 | 101.27 | 0.9095 | 517.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.21 | -9.70 | 265.71 | -64.95 | 101.92 | 0.9144 | 381.0 | 351.5 | |
| 0.00 | 0.27 | 0.00 | 0.33 | -9.49 | 265.64 | -65.02 | 101.68 | 0.9147 | 115.0 | 135.0 | |
| 0.00 | 0.27 | 0.00 | 0.35 | -10.10 | 264.42 | -66.25 | 102.18 | 0.9235 | 303.0 | 280.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
