SDO HMI 2014-06-30 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.95 | 338.60 | 119.88 | 612.77 | -20.31 | 258.87 | -71.80 | 112.07 | 0.9621 | 4.5 | -90.5 | |
|
previous
or next observation for the same group /

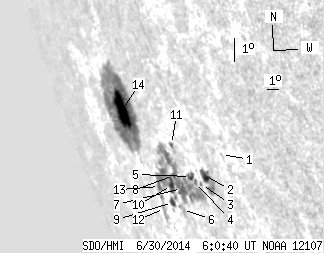

back to the solar disc SDO HMI 2014-06-30 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 1.67 | -20.34 | 265.54 | -65.13 | 113.29 | 0.9278 | 146.0 | 163.6 | |
| 7.00 | 19.99 | 10.07 | 28.69 | -21.16 | 263.53 | -67.14 | 113.74 | 0.9403 | 550.9 | 335.2 | |
| 0.45 | 1.45 | 0.67 | 2.16 | -21.45 | 262.90 | -67.77 | 113.93 | 0.9440 | 217.2 | 204.6 | |
| 1.18 | 125.92 | 1.79 | 208.85 | -21.41 | 262.41 | -68.25 | 113.79 | 0.9465 | 230.8 | -372.5 | |
| 3.36 | -4.00 | 5.15 | -4.00 | -21.22 | 262.15 | -68.52 | 113.55 | 0.9476 | 239.4 | 999999 | |
| 0.00 | 4.63 | 0.00 | 7.95 | -22.41 | 260.09 | -70.58 | 114.41 | 0.9587 | -464.0 | -400.8 | |
| 12.08 | -4.00 | 19.85 | -4.00 | -21.68 | 260.83 | -69.84 | 113.79 | 0.9546 | -615.8 | 999999 | |
| 1.45 | -4.00 | 2.41 | -4.00 | -21.26 | 260.51 | -70.16 | 113.30 | 0.9558 | -638.5 | 999999 | |
| 3.18 | -4.00 | 5.67 | -4.00 | -22.22 | 259.30 | -71.37 | 114.08 | 0.9621 | -309.5 | 999999 | |
| 6.54 | -4.00 | 11.23 | -4.00 | -21.62 | 259.90 | -70.76 | 113.57 | 0.9589 | -495.2 | 999999 | |
| 0.91 | 2.82 | 1.43 | 4.43 | -20.20 | 261.42 | -69.24 | 112.36 | 0.9503 | -92.7 | -262.3 | |
| 0.00 | 9.90 | 0.00 | 19.01 | -22.47 | 258.10 | -72.56 | 114.15 | 0.9673 | 322.0 | 70.6 | |
| 2.36 | -4.00 | 4.39 | -4.00 | -21.72 | 258.53 | -72.14 | 113.44 | 0.9650 | -378.6 | 999999 | |
| 29.44 | 172.62 | 57.22 | 340.01 | -19.24 | 257.44 | -73.22 | 110.74 | 0.9677 | 281.1 | 36.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
