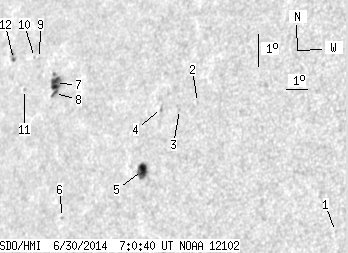

SDO HMI 2014-06-30 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.36 | 44.08 | 18.09 | 35.91 | 12.87 | 278.02 | -52.10 | 75.90 | 0.7941 | -438.9 | -103.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.55 | 0.00 | 0.36 | 9.65 | 289.97 | -40.15 | 78.37 | 0.6512 | -577.0 | -484.5 | |
| 0.00 | 0.73 | 0.00 | 0.53 | 13.43 | 283.30 | -46.82 | 74.28 | 0.7392 | 573.0 | 471.5 | |
| 0.00 | 1.09 | 0.00 | 0.81 | 13.18 | 282.52 | -47.59 | 74.75 | 0.7474 | -577.0 | -474.8 | |
| 0.00 | 2.18 | 0.00 | 1.65 | 13.19 | 281.68 | -48.44 | 74.90 | 0.7569 | -634.0 | -538.1 | |
| 10.36 | 14.45 | 7.85 | 10.94 | 11.25 | 281.25 | -48.87 | 77.52 | 0.7589 | -761.8 | -375.1 | |
| 0.00 | 1.18 | 0.00 | 0.96 | 9.67 | 277.67 | -52.45 | 79.95 | 0.7959 | -506.0 | -397.8 | |
| 9.18 | 16.90 | 7.80 | 14.37 | 13.77 | 276.17 | -53.95 | 75.03 | 0.8150 | -592.1 | -334.5 | |
| 2.00 | -7.00 | 1.70 | -7.00 | 13.46 | 276.22 | -53.90 | 75.40 | 0.8142 | -585.1 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.56 | 14.51 | 275.04 | -55.08 | 74.29 | 0.8268 | 371.0 | 349.7 | |
| 0.00 | 0.64 | 0.00 | 0.56 | 14.53 | 274.75 | -55.37 | 74.30 | 0.8295 | 412.0 | 418.6 | |
| 0.00 | 1.27 | 0.00 | 1.12 | 13.52 | 274.56 | -55.56 | 75.54 | 0.8302 | 597.0 | 464.8 | |
| 0.82 | 4.45 | 0.74 | 4.05 | 14.42 | 273.60 | -56.52 | 74.58 | 0.8400 | 654.8 | 476.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
