SDO HMI 2014-06-30 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 123.45 | 693.20 | 128.06 | 723.27 | -10.69 | 268.00 | -60.47 | 103.73 | 0.8817 | 331.1 | 205.1 | |
|
previous
or next observation for the same group /

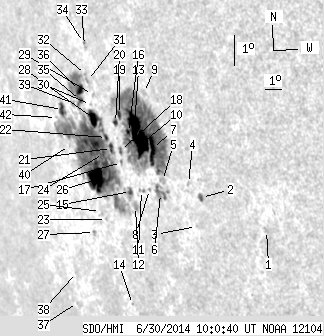

back to the solar disc SDO HMI 2014-06-30 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.63 | 0.00 | 2.25 | -13.03 | 275.97 | -52.51 | 108.20 | 0.8158 | 354.0 | 303.2 | |
| 1.73 | 3.72 | 1.58 | 3.42 | -12.12 | 272.77 | -55.71 | 106.32 | 0.8437 | -541.5 | -384.0 | |
| 0.00 | 0.91 | 0.00 | 0.85 | -13.06 | 272.17 | -56.30 | 107.27 | 0.8508 | 427.0 | 361.5 | |
| 0.00 | 1.82 | 0.00 | 1.69 | -11.70 | 272.17 | -56.30 | 105.70 | 0.8483 | 242.0 | 100.2 | |
| 0.00 | 4.00 | 0.00 | 3.87 | -11.67 | 270.68 | -57.79 | 105.35 | 0.8613 | 637.0 | 592.9 | |
| 0.00 | 13.45 | 0.00 | 13.14 | -12.09 | 270.42 | -58.05 | 105.77 | 0.8642 | 674.0 | 405.0 | |
| 13.63 | 281.73 | 13.26 | 277.76 | -10.68 | 270.41 | -58.06 | 104.16 | 0.8621 | 931.1 | 336.0 | |
| 0.00 | 1.18 | 0.00 | 1.18 | -11.99 | 269.80 | -58.68 | 105.53 | 0.8693 | 483.0 | 371.3 | |
| 0.00 | 2.73 | 0.00 | 2.63 | -8.94 | 270.37 | -58.10 | 102.15 | 0.8599 | 193.0 | 152.6 | |
| 22.35 | -7.00 | 22.06 | -7.00 | -10.55 | 269.80 | -58.68 | 103.89 | 0.8671 | 799.6 | 999999 | |
| 0.00 | 2.27 | 0.00 | 2.29 | -12.04 | 269.29 | -59.18 | 105.49 | 0.8735 | 424.0 | 387.8 | |
| 0.00 | 5.63 | 0.00 | 5.80 | -12.57 | 268.72 | -59.75 | 105.97 | 0.8789 | 168.0 | 161.6 | |
| 20.80 | -7.00 | 20.67 | -7.00 | -10.00 | 269.54 | -58.93 | 103.22 | 0.8685 | 666.6 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.70 | -15.75 | 267.08 | -61.39 | 109.16 | 0.8963 | 417.0 | 387.3 | |
| 2.18 | 8.63 | 2.25 | 8.95 | -12.11 | 268.59 | -59.89 | 105.42 | 0.8793 | 437.3 | 148.1 | |
| 1.45 | -7.00 | 1.46 | -7.00 | -10.23 | 269.10 | -59.37 | 103.41 | 0.8725 | -91.0 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.88 | -11.21 | 268.35 | -60.13 | 104.37 | 0.8800 | 264.0 | 236.6 | |
| 1.36 | 3.09 | 1.40 | 3.18 | -10.83 | 268.42 | -60.06 | 103.95 | 0.8789 | 312.8 | 192.6 | |
| 2.63 | -7.00 | 2.68 | -7.00 | -9.69 | 268.72 | -59.76 | 102.72 | 0.8750 | 428.8 | 999999 | |
| 1.91 | -7.00 | 1.96 | -7.00 | -9.95 | 268.39 | -60.09 | 102.96 | 0.8780 | 299.9 | 999999 | |
| 2.63 | 343.23 | 2.76 | 376.06 | -10.79 | 267.86 | -60.61 | 103.81 | 0.8833 | 415.4 | 113.4 | |
| 1.82 | -21.00 | 1.92 | -21.00 | -10.45 | 267.65 | -60.82 | 103.40 | 0.8845 | 511.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.41 | -13.07 | 266.64 | -61.83 | 106.12 | 0.8957 | -481.0 | -454.6 | |
| 2.00 | -21.00 | 2.14 | -21.00 | -10.97 | 267.28 | -61.19 | 103.91 | 0.8881 | -214.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 1.01 | -12.83 | 266.34 | -62.13 | 105.81 | 0.8976 | -390.0 | -406.3 | |
| 25.71 | -21.00 | 28.37 | -21.00 | -11.82 | 266.50 | -61.98 | 104.72 | 0.8952 | -599.3 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.88 | -13.53 | 265.61 | -62.86 | 106.43 | 0.9038 | -616.0 | -552.1 | |
| 10.08 | -21.00 | 10.83 | -21.00 | -9.89 | 267.00 | -61.47 | 102.66 | 0.8890 | 661.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.45 | -9.13 | 267.17 | -61.30 | 101.84 | 0.8868 | 392.0 | 382.4 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -9.45 | 266.94 | -61.53 | 102.17 | 0.8889 | 274.0 | 287.7 | |
| 0.00 | 2.00 | 0.00 | 2.14 | -8.71 | 266.97 | -61.50 | 101.33 | 0.8879 | 521.0 | 471.1 | |
| 0.00 | 0.73 | 0.00 | 0.78 | -8.52 | 266.89 | -61.58 | 101.12 | 0.8883 | 433.0 | 420.2 | |
| 0.00 | 0.64 | 0.00 | 0.67 | -7.62 | 267.07 | -61.41 | 100.13 | 0.8859 | 443.0 | 379.4 | |
| 0.00 | 1.18 | 0.00 | 1.25 | -7.53 | 267.03 | -61.45 | 100.02 | 0.8862 | 404.0 | 381.2 | |
| 1.91 | -21.00 | 2.09 | -21.00 | -9.36 | 266.31 | -62.16 | 101.96 | 0.8937 | 502.5 | 999999 | |
| 5.63 | -21.00 | 6.15 | -21.00 | -9.04 | 266.34 | -62.13 | 101.62 | 0.8931 | 547.1 | 999999 | |
| 0.00 | 0.91 | 0.00 | 1.16 | -15.87 | 263.09 | -65.39 | 108.50 | 0.9238 | -30.0 | -74.2 | |
| 0.00 | 1.27 | 0.00 | 1.59 | -14.89 | 263.60 | -64.87 | 107.54 | 0.9193 | -153.0 | -235.1 | |
| 0.00 | 2.63 | 0.00 | 2.94 | -9.47 | 265.80 | -62.67 | 102.01 | 0.8977 | 332.0 | 249.3 | |
| 0.00 | 0.64 | 0.00 | 0.73 | -10.82 | 265.05 | -63.43 | 103.37 | 0.9047 | 166.0 | 154.0 | |
| 5.63 | -21.00 | 6.48 | -21.00 | -9.70 | 264.97 | -63.51 | 102.13 | 0.9041 | 397.6 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.32 | -9.97 | 264.45 | -64.03 | 102.35 | 0.9082 | 343.0 | 297.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
