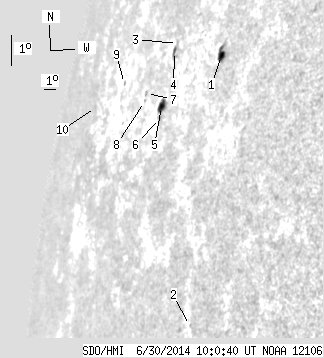

SDO HMI 2014-06-30 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.99 | 35.06 | 17.19 | 53.73 | 13.98 | 257.25 | -71.22 | 76.14 | 0.9459 | -225.1 | -71.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.72 | 10.99 | 6.04 | 14.04 | 15.12 | 261.37 | -67.10 | 74.76 | 0.9234 | -423.3 | -272.7 | |
| 0.00 | 0.82 | 0.00 | 0.99 | 6.79 | 262.57 | -65.90 | 83.81 | 0.9135 | 447.0 | 428.6 | |
| 0.00 | 1.54 | 0.00 | 2.37 | 15.32 | 257.27 | -71.21 | 74.75 | 0.9477 | -2.0 | -3.9 | |
| 1.36 | 4.72 | 2.10 | 7.26 | 15.07 | 257.17 | -71.30 | 75.03 | 0.9482 | 265.2 | 340.3 | |
| 5.91 | 8.63 | 9.05 | 13.21 | 13.34 | 257.18 | -71.29 | 76.85 | 0.9478 | -343.3 | -144.1 | |
| 0.00 | 2.63 | 0.00 | 4.03 | 12.96 | 257.24 | -71.23 | 77.25 | 0.9474 | -406.0 | -302.9 | |
| 0.00 | 1.82 | 0.00 | 3.07 | 13.66 | 255.37 | -73.10 | 76.56 | 0.9572 | -281.0 | -229.3 | |
| 0.00 | 0.64 | 0.00 | 1.07 | 13.41 | 255.36 | -73.12 | 76.82 | 0.9573 | -322.0 | -258.7 | |
| 0.00 | 1.18 | 0.00 | 2.35 | 13.85 | 252.58 | -75.90 | 76.41 | 0.9699 | 338.0 | 269.8 | |
| 0.00 | 2.09 | 0.00 | 5.34 | 12.94 | 249.25 | -79.22 | 77.35 | 0.9821 | -112.0 | -82.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
