SDO HMI 2014-06-30 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.79 | 381.29 | 98.76 | 615.93 | -20.19 | 258.92 | -69.56 | 112.32 | 0.9515 | 120.2 | -78.9 | |
|
previous
or next observation for the same group /

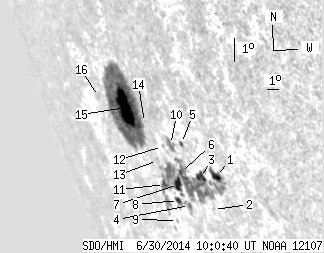

back to the solar disc SDO HMI 2014-06-30 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.27 | 156.90 | 8.27 | 231.67 | -21.19 | 263.44 | -65.04 | 114.21 | 0.9284 | 578.3 | -209.4 | |
| 0.00 | 1.73 | 0.00 | 2.41 | -22.34 | 262.25 | -66.23 | 115.17 | 0.9368 | -303.0 | -263.4 | |
| 6.27 | -1.00 | 8.71 | -1.00 | -21.28 | 262.15 | -66.32 | 114.04 | 0.9360 | 294.6 | 999999 | |
| 1.18 | 6.36 | 1.81 | 9.78 | -22.30 | 260.21 | -68.26 | 114.72 | 0.9475 | -415.6 | -387.4 | |
| 0.91 | 2.27 | 1.29 | 3.21 | -20.18 | 261.54 | -66.93 | 112.77 | 0.9380 | -75.7 | -82.1 | |
| 1.64 | -1.00 | 2.44 | -1.00 | -21.19 | 260.53 | -67.94 | 113.63 | 0.9446 | -613.8 | 999999 | |
| 7.90 | -1.00 | 12.19 | -1.00 | -21.61 | 259.93 | -68.55 | 113.96 | 0.9482 | -459.0 | 999999 | |
| 2.91 | 5.18 | 4.63 | 8.25 | -22.17 | 259.34 | -69.14 | 114.43 | 0.9517 | -287.6 | -240.0 | |
| 0.00 | 1.00 | 0.00 | 1.68 | -22.88 | 258.44 | -70.04 | 114.99 | 0.9567 | -63.0 | 31.4 | |
| 0.00 | 8.99 | 0.00 | 13.30 | -20.26 | 260.53 | -67.95 | 112.66 | 0.9437 | -425.0 | -337.8 | |
| 3.18 | -1.00 | 5.23 | -1.00 | -21.68 | 258.55 | -69.93 | 113.77 | 0.9551 | -244.2 | 999999 | |
| 0.00 | 0.82 | 0.00 | 1.25 | -20.37 | 259.72 | -68.76 | 112.62 | 0.9480 | -379.0 | -292.2 | |
| 0.00 | 2.45 | 0.00 | 3.97 | -20.88 | 258.74 | -69.74 | 112.98 | 0.9534 | -311.0 | -309.0 | |
| 0.00 | 1.36 | 0.00 | 2.18 | -19.63 | 258.77 | -69.70 | 111.69 | 0.9521 | 254.0 | 219.8 | |
| 31.53 | 190.60 | 54.19 | 330.95 | -19.20 | 257.34 | -71.14 | 111.02 | 0.9586 | 319.3 | 42.1 | |
| 0.00 | 3.63 | 0.00 | 7.28 | -18.97 | 254.66 | -73.82 | 110.39 | 0.9700 | -160.0 | -186.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
