SDO HMI 2014-06-30 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.52 | 60.05 | 20.08 | 47.20 | 13.25 | 277.63 | -50.30 | 75.08 | 0.7751 | -342.8 | -102.6 | |
|
previous
or next observation for the same group /

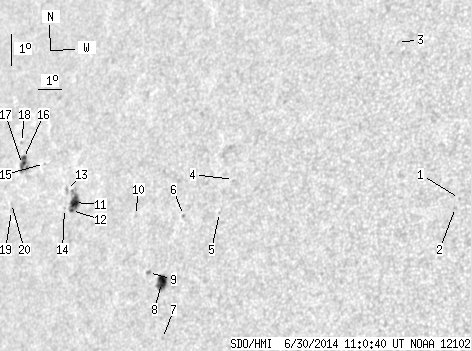

back to the solar disc SDO HMI 2014-06-30 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.67 | 14.14 | 293.01 | -34.91 | 69.71 | 0.5939 | -565.0 | -517.8 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 13.85 | 292.91 | -35.02 | 70.21 | 0.5943 | -596.0 | -525.7 | |
| 0.00 | 0.45 | 0.00 | 0.30 | 18.95 | 289.48 | -38.44 | 63.88 | 0.6572 | -437.0 | -407.2 | |
| 0.00 | 0.73 | 0.00 | 0.51 | 14.46 | 283.69 | -44.24 | 72.30 | 0.7114 | -537.0 | -466.4 | |
| 0.00 | 0.82 | 0.00 | 0.58 | 13.42 | 283.32 | -44.60 | 73.83 | 0.7135 | 420.0 | 323.4 | |
| 0.00 | 1.18 | 0.00 | 0.86 | 13.27 | 281.74 | -46.18 | 74.37 | 0.7315 | -494.0 | -469.6 | |
| 0.00 | 1.27 | 0.00 | 0.92 | 9.46 | 281.59 | -46.33 | 79.60 | 0.7277 | 316.0 | 223.3 | |
| 10.17 | 13.35 | 7.40 | 9.71 | 11.17 | 281.22 | -46.71 | 77.31 | 0.7342 | -787.4 | -474.7 | |
| 0.00 | 1.82 | 0.00 | 1.34 | 11.46 | 280.56 | -47.36 | 77.02 | 0.7422 | -600.0 | -449.1 | |
| 0.00 | 0.64 | 0.00 | 0.48 | 13.19 | 279.54 | -48.39 | 74.89 | 0.7563 | -371.0 | -314.7 | |
| 8.63 | 17.53 | 6.93 | 14.10 | 13.49 | 276.47 | -51.46 | 75.02 | 0.7895 | -701.9 | -427.2 | |
| 1.09 | -11.00 | 0.88 | -11.00 | 13.24 | 276.39 | -51.53 | 75.35 | 0.7900 | -627.7 | 999999 | |
| 0.00 | 2.91 | 0.00 | 2.36 | 13.85 | 275.95 | -51.97 | 74.65 | 0.7953 | -323.0 | -199.1 | |
| 0.00 | 0.91 | 0.00 | 0.74 | 13.29 | 276.02 | -51.90 | 75.34 | 0.7939 | -337.0 | -239.1 | |
| 0.00 | 0.73 | 0.00 | 0.61 | 14.64 | 274.54 | -53.39 | 73.89 | 0.8106 | 457.0 | 422.2 | |
| 2.09 | 13.08 | 1.81 | 11.28 | 14.75 | 273.37 | -54.56 | 73.92 | 0.8221 | 401.0 | 516.7 | |
| 3.54 | -16.00 | 3.06 | -16.00 | 14.56 | 273.38 | -54.55 | 74.15 | 0.8217 | 583.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.95 | 15.24 | 273.07 | -54.86 | 73.37 | 0.8255 | 356.0 | 289.6 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 13.12 | 273.28 | -54.65 | 75.91 | 0.8211 | -193.0 | -267.7 | |
| 0.00 | 0.82 | 0.00 | 0.71 | 13.34 | 273.21 | -54.72 | 75.66 | 0.8220 | -389.0 | -316.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
