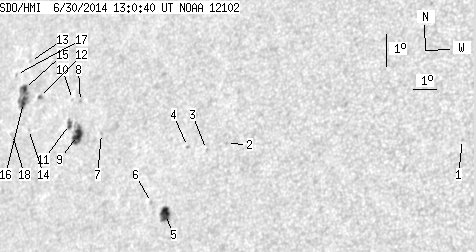

SDO HMI 2014-06-30 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.43 | 71.03 | 25.24 | 55.76 | 13.51 | 276.57 | -50.26 | 74.80 | 0.7756 | -283.4 | -28.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.66 | 13.82 | 292.89 | -33.94 | 69.81 | 0.5798 | -672.0 | -503.0 | |
| 0.00 | 0.82 | 0.00 | 0.56 | 13.42 | 283.45 | -43.38 | 73.54 | 0.6989 | 455.0 | 347.4 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 13.21 | 282.62 | -44.20 | 74.03 | 0.7083 | -616.0 | -448.8 | |
| 0.00 | 1.18 | 0.00 | 0.84 | 13.28 | 281.77 | -45.05 | 74.13 | 0.7185 | -598.0 | -493.5 | |
| 9.63 | 12.81 | 6.86 | 9.13 | 11.15 | 281.25 | -45.57 | 77.16 | 0.7209 | -778.1 | -474.2 | |
| 0.00 | 1.45 | 0.00 | 1.05 | 11.50 | 280.55 | -46.27 | 76.80 | 0.7296 | -517.0 | -421.8 | |
| 0.00 | 1.27 | 0.00 | 0.97 | 13.54 | 277.73 | -49.10 | 74.56 | 0.7646 | -500.0 | -382.6 | |
| 0.00 | 0.91 | 0.00 | 0.72 | 14.50 | 276.42 | -50.41 | 73.57 | 0.7800 | -455.0 | -380.3 | |
| 11.08 | 17.35 | 8.68 | 13.59 | 13.44 | 276.59 | -50.24 | 74.89 | 0.7767 | -732.8 | -440.2 | |
| 0.00 | 0.91 | 0.00 | 0.72 | 14.55 | 276.00 | -50.82 | 73.58 | 0.7844 | -434.0 | -365.6 | |
| 2.45 | 4.63 | 1.94 | 3.67 | 13.77 | 276.09 | -50.73 | 74.56 | 0.7823 | -349.5 | -200.0 | |
| 1.00 | 2.27 | 0.82 | 1.87 | 14.55 | 274.32 | -52.51 | 73.87 | 0.8017 | 631.1 | 571.1 | |
| 0.00 | 1.00 | 0.00 | 0.84 | 15.64 | 273.45 | -53.37 | 72.66 | 0.8118 | 302.0 | 297.7 | |
| 0.00 | 0.91 | 0.00 | 0.75 | 13.54 | 274.08 | -52.75 | 75.15 | 0.8028 | -247.0 | -147.0 | |
| 3.09 | 20.25 | 2.60 | 17.02 | 14.80 | 273.44 | -53.38 | 73.70 | 0.8107 | 573.5 | 449.4 | |
| 5.18 | -15.00 | 4.34 | -15.00 | 14.36 | 273.54 | -53.28 | 74.21 | 0.8092 | 717.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.93 | 15.21 | 272.86 | -53.96 | 73.28 | 0.8169 | 349.0 | 243.5 | |
| 0.00 | 2.00 | 0.00 | 1.68 | 13.35 | 273.29 | -53.53 | 75.49 | 0.8104 | -364.0 | -321.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
