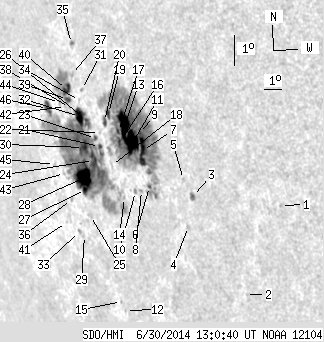

SDO HMI 2014-06-30 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 150.51 | 763.42 | 149.22 | 757.83 | -10.66 | 267.97 | -58.86 | 104.00 | 0.8685 | 293.4 | 195.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.87 | -12.23 | 277.15 | -49.67 | 108.02 | 0.7857 | 552.0 | 434.7 | |
| 0.00 | 0.36 | 0.00 | 0.31 | -15.15 | 274.51 | -52.32 | 110.78 | 0.8192 | 346.0 | 326.8 | |
| 1.45 | 3.81 | 1.28 | 3.36 | -12.12 | 272.71 | -54.11 | 106.70 | 0.8291 | -562.9 | -358.0 | |
| 0.00 | 1.91 | 0.00 | 1.71 | -13.08 | 272.19 | -54.63 | 107.71 | 0.8359 | 216.0 | 311.3 | |
| 0.00 | 1.09 | 0.00 | 0.97 | -11.60 | 272.38 | -54.44 | 106.00 | 0.8312 | 298.0 | 206.5 | |
| 0.91 | 331.80 | 0.85 | 312.03 | -11.90 | 270.41 | -56.41 | 105.90 | 0.8496 | 539.8 | 327.9 | |
| 13.90 | -6.00 | 12.93 | -6.00 | -10.77 | 270.36 | -56.46 | 104.59 | 0.8482 | 892.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.12 | -12.04 | 269.91 | -56.92 | 105.96 | 0.8543 | 444.0 | 430.2 | |
| 1.27 | -6.00 | 1.18 | -6.00 | -10.24 | 270.34 | -56.48 | 103.96 | 0.8475 | 1036.9 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.74 | -12.09 | 269.54 | -57.28 | 105.94 | 0.8576 | 478.0 | 444.6 | |
| 21.98 | -6.00 | 20.70 | -6.00 | -10.54 | 269.86 | -56.96 | 104.22 | 0.8523 | 816.4 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -15.96 | 267.35 | -59.48 | 109.81 | 0.8823 | 345.0 | 359.0 | |
| 21.98 | -6.00 | 20.83 | -6.00 | -10.02 | 269.55 | -57.28 | 103.56 | 0.8542 | 673.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.07 | -12.31 | 268.82 | -58.00 | 106.03 | 0.8641 | 444.0 | 398.5 | |
| 0.00 | 0.91 | 0.00 | 0.95 | -15.67 | 267.23 | -59.59 | 109.47 | 0.8826 | 375.0 | 409.9 | |
| 1.91 | -6.00 | 1.83 | -6.00 | -10.57 | 269.10 | -57.73 | 104.10 | 0.8590 | -14.8 | 999999 | |
| 3.27 | -6.00 | 3.13 | -6.00 | -10.23 | 269.14 | -57.68 | 103.71 | 0.8581 | 31.2 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.70 | -11.32 | 268.39 | -58.44 | 104.82 | 0.8662 | 389.0 | 265.4 | |
| 2.91 | -6.00 | 2.82 | -6.00 | -9.68 | 268.71 | -58.12 | 103.01 | 0.8611 | 378.0 | 999999 | |
| 2.63 | -6.00 | 2.57 | -6.00 | -9.94 | 268.40 | -58.43 | 103.25 | 0.8641 | 247.4 | 999999 | |
| 1.45 | 360.95 | 1.45 | 373.79 | -10.75 | 267.85 | -58.97 | 104.07 | 0.8699 | 454.9 | 113.3 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -10.31 | 267.99 | -58.83 | 103.59 | 0.8681 | 342.0 | 302.7 | |
| 1.36 | -21.00 | 1.36 | -21.00 | -10.51 | 267.68 | -59.14 | 103.76 | 0.8709 | 521.1 | 999999 | |
| 7.90 | -21.00 | 8.02 | -21.00 | -11.21 | 267.33 | -59.49 | 104.49 | 0.8748 | -182.2 | 999999 | |
| 0.00 | 2.91 | 0.00 | 3.06 | -12.97 | 266.48 | -60.35 | 106.31 | 0.8842 | -273.0 | -333.4 | |
| 1.18 | -21.00 | 1.19 | -21.00 | -9.96 | 267.30 | -59.52 | 103.07 | 0.8734 | 721.5 | 999999 | |
| 2.82 | -21.00 | 2.95 | -21.00 | -12.16 | 266.49 | -60.34 | 105.39 | 0.8830 | -657.5 | 999999 | |
| 25.16 | -21.00 | 26.28 | -21.00 | -11.77 | 266.57 | -60.26 | 104.98 | 0.8818 | -578.8 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.59 | -13.64 | 265.81 | -61.02 | 106.91 | 0.8904 | -300.0 | -278.0 | |
| 10.72 | -21.00 | 11.02 | -21.00 | -10.82 | 266.84 | -59.98 | 103.96 | 0.8783 | 231.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.46 | -9.00 | 267.27 | -59.55 | 101.97 | 0.8724 | 513.0 | 418.4 | |
| 11.44 | -21.00 | 11.69 | -21.00 | -9.85 | 266.90 | -59.92 | 102.88 | 0.8765 | 641.7 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.98 | -13.52 | 265.53 | -61.29 | 106.73 | 0.8923 | -589.0 | -526.3 | |
| 0.00 | 0.82 | 0.00 | 0.83 | -9.35 | 267.05 | -59.77 | 102.33 | 0.8746 | 361.0 | 329.8 | |
| 0.73 | 1.91 | 0.73 | 1.92 | -7.58 | 267.02 | -59.81 | 100.32 | 0.8728 | 526.8 | 412.1 | |
| 0.00 | 1.63 | 0.00 | 1.77 | -12.52 | 265.44 | -61.39 | 105.60 | 0.8916 | -341.0 | -269.1 | |
| 0.00 | 2.00 | 0.00 | 2.04 | -8.55 | 266.78 | -60.05 | 101.39 | 0.8760 | 433.0 | 405.0 | |
| 0.00 | 0.64 | 0.00 | 0.66 | -9.59 | 266.35 | -60.47 | 102.50 | 0.8807 | 218.0 | 188.6 | |
| 3.00 | 36.15 | 3.11 | 37.65 | -9.35 | 266.30 | -60.52 | 102.21 | 0.8808 | 415.1 | 58.8 | |
| 6.45 | -39.00 | 6.68 | -39.00 | -9.04 | 266.33 | -60.50 | 101.86 | 0.8802 | 502.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.91 | -13.27 | 264.78 | -62.05 | 106.31 | 0.8976 | -430.0 | -387.1 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -9.57 | 266.11 | -60.72 | 102.43 | 0.8826 | 258.0 | 291.7 | |
| 0.00 | 1.36 | 0.00 | 1.48 | -11.70 | 265.30 | -61.52 | 104.67 | 0.8916 | 11.0 | -50.1 | |
| 0.00 | 1.82 | 0.00 | 1.92 | -9.46 | 265.75 | -61.07 | 102.25 | 0.8853 | 398.0 | 285.2 | |
| 0.00 | 1.00 | 0.00 | 1.10 | -11.45 | 264.74 | -62.09 | 104.29 | 0.8956 | -293.0 | -212.2 | |
| 6.09 | -21.00 | 6.62 | -21.00 | -9.69 | 264.90 | -61.93 | 102.37 | 0.8923 | 412.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
