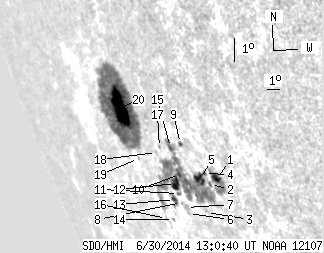

SDO HMI 2014-06-30 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.69 | 401.38 | 99.76 | 599.20 | -20.13 | 258.98 | -67.85 | 112.58 | 0.9427 | 121.0 | -73.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.36 | 21.44 | 6.65 | 26.63 | -21.21 | 263.45 | -63.37 | 114.61 | 0.9183 | 659.5 | 333.6 | |
| 0.82 | 148.78 | 1.04 | 206.74 | -21.44 | 262.82 | -64.00 | 114.70 | 0.9226 | 293.2 | -275.7 | |
| 0.00 | 1.36 | 0.00 | 1.83 | -22.42 | 261.67 | -65.16 | 115.48 | 0.9309 | -256.0 | -262.5 | |
| 0.64 | -2.00 | 0.81 | -2.00 | -21.08 | 262.66 | -64.17 | 114.29 | 0.9230 | 427.6 | 999999 | |
| 8.27 | -2.00 | 10.78 | -2.00 | -21.30 | 262.09 | -64.74 | 114.40 | 0.9268 | 229.0 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.91 | -22.53 | 260.09 | -66.73 | 115.26 | 0.9398 | -279.0 | -270.6 | |
| 0.00 | 3.36 | 0.00 | 4.80 | -22.32 | 260.12 | -66.70 | 115.06 | 0.9394 | -431.0 | -380.8 | |
| 0.00 | 0.45 | 0.00 | 0.65 | -22.17 | 259.85 | -66.98 | 114.84 | 0.9407 | -530.0 | -527.2 | |
| 0.91 | 2.00 | 1.20 | 2.64 | -20.14 | 261.57 | -65.26 | 113.06 | 0.9283 | 67.2 | -33.8 | |
| 1.73 | -2.00 | 2.40 | -2.00 | -21.21 | 260.58 | -66.25 | 113.98 | 0.9354 | -612.2 | 999999 | |
| 0.64 | 1.91 | 0.91 | 2.74 | -21.87 | 259.88 | -66.94 | 114.53 | 0.9401 | -544.3 | -522.7 | |
| 8.63 | -2.00 | 12.33 | -2.00 | -21.53 | 259.95 | -66.88 | 114.20 | 0.9394 | -490.9 | 999999 | |
| 2.63 | 7.63 | 3.88 | 11.29 | -22.09 | 259.32 | -67.51 | 114.66 | 0.9434 | -370.2 | -195.8 | |
| 0.00 | 1.36 | 0.00 | 2.10 | -22.80 | 258.50 | -68.33 | 115.23 | 0.9484 | 124.0 | 17.7 | |
| 2.18 | -2.00 | 2.99 | -2.00 | -20.31 | 260.62 | -66.20 | 113.05 | 0.9341 | -457.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.59 | -22.80 | 257.86 | -68.97 | 115.10 | 0.9516 | 55.0 | 96.7 | |
| 0.00 | 1.27 | 0.00 | 1.82 | -20.36 | 259.67 | -67.15 | 112.91 | 0.9395 | -298.0 | -262.8 | |
| 0.00 | 0.91 | 0.00 | 1.32 | -20.54 | 259.25 | -67.58 | 113.02 | 0.9420 | -323.0 | -302.7 | |
| 0.00 | 1.00 | 0.00 | 1.60 | -20.83 | 257.34 | -69.48 | 112.97 | 0.9521 | 266.0 | 264.0 | |
| 35.88 | 208.27 | 56.77 | 332.54 | -19.16 | 257.31 | -69.52 | 111.24 | 0.9507 | 318.2 | 38.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
