SDO HMI 2014-06-30 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 141.94 | 764.62 | 138.24 | 746.51 | -10.67 | 267.98 | -58.29 | 104.11 | 0.8637 | 321.8 | 192.3 | |
|
previous
or next observation for the same group /

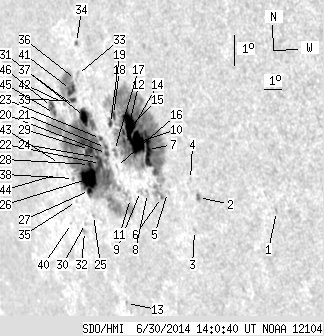

back to the solar disc SDO HMI 2014-06-30 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.23 | -12.42 | 276.55 | -49.72 | 108.24 | 0.7867 | 541.0 | 497.2 | |
| 1.09 | 2.91 | 0.95 | 2.53 | -12.13 | 272.69 | -53.58 | 106.84 | 0.8241 | -551.2 | -390.8 | |
| 0.00 | 1.63 | 0.00 | 1.45 | -13.19 | 272.15 | -54.13 | 107.96 | 0.8315 | 587.0 | 424.2 | |
| 0.00 | 1.27 | 0.00 | 1.11 | -11.57 | 272.43 | -53.84 | 106.11 | 0.8255 | 238.0 | 166.9 | |
| 0.00 | 1.82 | 0.00 | 1.64 | -12.03 | 271.05 | -55.22 | 106.33 | 0.8392 | 565.0 | 454.1 | |
| 0.45 | 328.40 | 0.42 | 304.25 | -12.21 | 270.66 | -55.61 | 106.45 | 0.8431 | -266.8 | 323.6 | |
| 16.71 | -6.00 | 15.31 | -6.00 | -10.71 | 270.33 | -55.94 | 104.63 | 0.8434 | 935.9 | 999999 | |
| 0.00 | 2.36 | 0.00 | 2.21 | -12.11 | 269.91 | -56.37 | 106.17 | 0.8496 | 384.0 | 357.7 | |
| 0.00 | 3.27 | 0.00 | 3.08 | -12.06 | 269.52 | -56.75 | 106.03 | 0.8529 | 540.0 | 425.0 | |
| 26.16 | -6.00 | 24.29 | -6.00 | -10.52 | 269.77 | -56.50 | 104.29 | 0.8481 | 771.9 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.92 | -12.31 | 268.86 | -57.41 | 106.17 | 0.8591 | 458.0 | 408.0 | |
| 18.07 | -6.00 | 16.87 | -6.00 | -9.93 | 269.54 | -56.73 | 103.56 | 0.8493 | 701.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.94 | -15.71 | 267.23 | -59.04 | 109.64 | 0.8784 | 562.0 | 441.2 | |
| 1.73 | -6.00 | 1.63 | -6.00 | -10.52 | 269.09 | -57.18 | 104.15 | 0.8542 | 35.2 | 999999 | |
| 1.18 | -6.00 | 1.12 | -6.00 | -10.23 | 269.11 | -57.16 | 103.82 | 0.8535 | 29.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.06 | -11.33 | 268.37 | -57.90 | 104.94 | 0.8617 | 252.0 | 228.2 | |
| 0.45 | 3.27 | 0.44 | 3.16 | -10.82 | 268.41 | -57.86 | 104.37 | 0.8605 | 390.8 | 342.7 | |
| 2.91 | -6.00 | 2.77 | -6.00 | -9.69 | 268.68 | -57.59 | 103.11 | 0.8565 | 373.1 | 999999 | |
| 2.00 | -6.00 | 1.92 | -6.00 | -9.98 | 268.43 | -57.84 | 103.40 | 0.8591 | 245.2 | 999999 | |
| 2.00 | 363.37 | 1.96 | 369.73 | -10.94 | 267.90 | -58.37 | 104.40 | 0.8651 | 349.7 | 104.4 | |
| 1.18 | -20.00 | 1.16 | -20.00 | -10.75 | 267.90 | -58.37 | 104.19 | 0.8648 | 520.0 | 999999 | |
| 3.63 | -20.00 | 3.62 | -20.00 | -11.27 | 267.43 | -58.84 | 104.69 | 0.8695 | -82.3 | 999999 | |
| 1.27 | -20.00 | 1.25 | -20.00 | -10.48 | 267.69 | -58.58 | 103.83 | 0.8662 | 549.1 | 999999 | |
| 1.27 | -20.00 | 1.27 | -20.00 | -11.09 | 267.31 | -58.96 | 104.46 | 0.8703 | -312.2 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.57 | -12.95 | 266.38 | -59.89 | 106.37 | 0.8806 | -458.0 | -503.7 | |
| 21.34 | -20.00 | 21.88 | -20.00 | -11.78 | 266.58 | -59.69 | 105.10 | 0.8773 | -607.2 | 999999 | |
| 2.91 | -20.00 | 3.00 | -20.00 | -12.16 | 266.44 | -59.83 | 105.50 | 0.8790 | -672.1 | 999999 | |
| 2.72 | -20.00 | 2.77 | -20.00 | -11.33 | 266.74 | -59.53 | 104.62 | 0.8754 | -204.2 | 999999 | |
| 6.99 | -20.00 | 7.06 | -20.00 | -10.86 | 266.90 | -59.37 | 104.12 | 0.8734 | 199.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.35 | -13.23 | 265.76 | -60.51 | 106.56 | 0.8859 | -446.0 | -429.4 | |
| 11.26 | -20.00 | 11.32 | -20.00 | -9.83 | 266.92 | -59.35 | 102.95 | 0.8718 | 645.7 | 999999 | |
| 0.00 | 2.00 | 0.00 | 2.13 | -13.49 | 265.58 | -60.69 | 106.82 | 0.8877 | -607.0 | -526.3 | |
| 0.00 | 1.73 | 0.00 | 1.73 | -8.52 | 266.85 | -59.42 | 101.46 | 0.8707 | 487.0 | 428.7 | |
| 0.73 | 1.73 | 0.72 | 1.71 | -7.52 | 267.03 | -59.24 | 100.34 | 0.8680 | 460.0 | 438.6 | |
| 0.00 | 0.91 | 0.00 | 0.97 | -12.55 | 265.46 | -60.81 | 105.75 | 0.8873 | -313.0 | -283.8 | |
| 0.00 | 1.91 | 0.00 | 1.92 | -8.68 | 266.69 | -59.59 | 101.61 | 0.8723 | 462.0 | 420.0 | |
| 0.00 | 0.82 | 0.00 | 0.83 | -9.54 | 266.39 | -59.89 | 102.53 | 0.8758 | 176.0 | 166.6 | |
| 0.00 | 1.27 | 0.00 | 1.35 | -11.82 | 265.55 | -60.72 | 104.95 | 0.8855 | 15.0 | -17.1 | |
| 2.54 | 34.97 | 2.59 | 35.77 | -9.35 | 266.32 | -59.96 | 102.31 | 0.8762 | 446.8 | 48.2 | |
| 0.00 | 0.27 | 0.00 | 0.30 | -13.27 | 264.83 | -61.44 | 106.42 | 0.8931 | -394.0 | -394.3 | |
| 6.99 | -39.00 | 7.13 | -39.00 | -9.01 | 266.29 | -59.98 | 101.92 | 0.8760 | 550.1 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.70 | -9.47 | 265.78 | -60.49 | 102.35 | 0.8807 | 345.0 | 284.7 | |
| 0.00 | 0.91 | 0.00 | 0.98 | -11.39 | 264.81 | -61.46 | 104.33 | 0.8907 | -166.0 | -189.2 | |
| 0.00 | 0.82 | 0.00 | 0.89 | -11.74 | 264.54 | -61.73 | 104.68 | 0.8932 | -75.0 | -46.0 | |
| 2.00 | -20.00 | 2.13 | -20.00 | -9.81 | 265.03 | -61.24 | 102.62 | 0.8871 | 548.8 | 999999 | |
| 4.36 | -20.00 | 4.66 | -20.00 | -9.60 | 264.90 | -61.37 | 102.36 | 0.8878 | 396.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
