SDO HMI 2014-06-30 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.52 | 32.78 | 20.15 | 43.30 | 14.37 | 258.28 | -67.99 | 75.61 | 0.9281 | -245.2 | -9.3 | |
|
previous
or next observation for the same group /

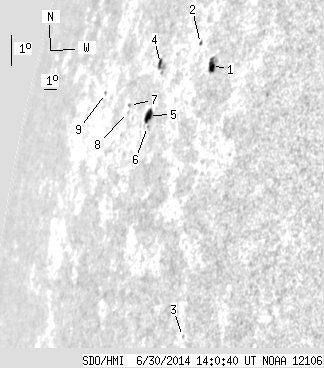

back to the solar disc SDO HMI 2014-06-30 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.08 | 10.72 | 7.16 | 12.60 | 15.15 | 261.29 | -64.98 | 74.59 | 0.9090 | -497.4 | -366.4 | |
| 0.45 | 1.63 | 0.56 | 2.02 | 15.79 | 260.05 | -66.22 | 73.98 | 0.9179 | 14.4 | -29.0 | |
| 0.00 | 0.45 | 0.00 | 0.51 | 6.79 | 262.57 | -63.70 | 83.80 | 0.8972 | 395.0 | 361.2 | |
| 2.36 | 7.72 | 3.28 | 10.64 | 15.04 | 257.19 | -69.08 | 74.97 | 0.9356 | 330.0 | 369.5 | |
| 6.63 | 8.99 | 9.15 | 12.41 | 13.40 | 257.21 | -69.06 | 76.71 | 0.9351 | -354.4 | -147.5 | |
| 0.00 | 0.45 | 0.00 | 0.62 | 13.06 | 257.33 | -68.94 | 77.07 | 0.9343 | -540.0 | -515.6 | |
| 0.00 | 1.18 | 0.00 | 1.79 | 13.63 | 255.29 | -70.98 | 76.54 | 0.9462 | -281.0 | -270.2 | |
| 0.00 | 0.64 | 0.00 | 0.96 | 13.41 | 255.25 | -71.02 | 76.77 | 0.9463 | -367.0 | -314.9 | |
| 0.00 | 1.00 | 0.00 | 1.75 | 13.89 | 252.57 | -73.70 | 76.34 | 0.9601 | 340.0 | 289.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
