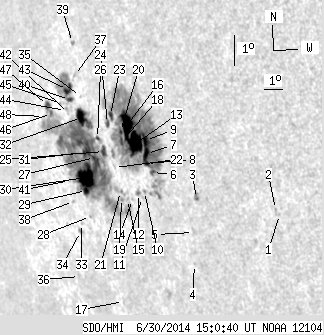

SDO HMI 2014-06-30 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 134.41 | 771.72 | 128.41 | 742.60 | -10.69 | 267.97 | -57.75 | 104.24 | 0.8591 | 365.2 | 189.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.86 | -12.51 | 276.71 | -49.01 | 108.58 | 0.7796 | 551.0 | 455.3 | |
| 0.00 | 0.82 | 0.00 | 0.65 | -12.36 | 276.56 | -49.16 | 108.34 | 0.7808 | 670.0 | 589.4 | |
| 0.64 | 3.27 | 0.55 | 2.81 | -12.17 | 272.66 | -53.06 | 107.02 | 0.8192 | -557.7 | -427.0 | |
| 0.00 | 0.64 | 0.00 | 0.56 | -14.28 | 271.87 | -53.84 | 109.32 | 0.8313 | 379.0 | 355.0 | |
| 0.00 | 1.18 | 0.00 | 1.03 | -13.26 | 272.17 | -53.55 | 108.19 | 0.8263 | 725.0 | 565.1 | |
| 2.00 | 331.91 | 1.80 | 303.06 | -11.43 | 270.52 | -55.20 | 105.64 | 0.8378 | 725.0 | 331.8 | |
| 6.45 | -6.00 | 5.83 | -6.00 | -10.84 | 270.36 | -55.35 | 104.91 | 0.8383 | 931.6 | 999999 | |
| 2.27 | -6.00 | 2.06 | -6.00 | -11.16 | 270.27 | -55.45 | 105.26 | 0.8396 | 617.0 | 999999 | |
| 6.36 | -6.00 | 5.72 | -6.00 | -10.44 | 270.42 | -55.30 | 104.44 | 0.8370 | 1138.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.42 | -12.06 | 269.89 | -55.83 | 106.22 | 0.8448 | 446.0 | 379.5 | |
| 0.00 | 0.82 | 0.00 | 0.76 | -12.25 | 269.71 | -56.01 | 106.41 | 0.8467 | 406.0 | 372.7 | |
| 0.73 | 2.72 | 0.68 | 2.53 | -12.13 | 269.53 | -56.19 | 106.23 | 0.8481 | 513.1 | 429.1 | |
| 23.43 | -6.00 | 21.43 | -6.00 | -10.55 | 269.84 | -55.88 | 104.46 | 0.8426 | 831.1 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.77 | -12.34 | 269.12 | -56.60 | 106.38 | 0.8521 | 328.0 | 273.3 | |
| 0.00 | 1.09 | 0.00 | 1.03 | -12.35 | 268.83 | -56.89 | 106.33 | 0.8547 | 548.0 | 455.2 | |
| 20.70 | -6.00 | 19.05 | -6.00 | -10.01 | 269.48 | -56.23 | 103.74 | 0.8449 | 684.6 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.92 | -15.65 | 267.27 | -58.45 | 109.72 | 0.8736 | 557.0 | 475.1 | |
| 2.45 | -6.00 | 2.29 | -6.00 | -10.52 | 269.06 | -56.66 | 104.26 | 0.8495 | 24.9 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.83 | -12.33 | 268.49 | -57.23 | 106.23 | 0.8576 | 384.0 | 266.7 | |
| 2.63 | -6.00 | 2.45 | -6.00 | -10.21 | 269.09 | -56.63 | 103.90 | 0.8488 | 65.6 | 999999 | |
| 0.00 | 6.63 | 0.00 | 6.33 | -12.11 | 268.50 | -57.21 | 105.98 | 0.8571 | 212.0 | 109.9 | |
| 0.00 | 1.18 | 0.00 | 1.13 | -11.36 | 268.40 | -57.32 | 105.10 | 0.8567 | 323.0 | 251.8 | |
| 3.27 | -6.00 | 3.07 | -6.00 | -9.73 | 268.65 | -57.07 | 103.26 | 0.8519 | 356.2 | 999999 | |
| 1.82 | -6.00 | 1.72 | -6.00 | -9.99 | 268.41 | -57.31 | 103.51 | 0.8545 | 294.6 | 999999 | |
| 4.63 | 365.15 | 4.47 | 366.15 | -10.88 | 267.91 | -57.81 | 104.45 | 0.8602 | 373.3 | 101.2 | |
| 1.18 | -25.00 | 1.14 | -25.00 | -10.49 | 267.68 | -58.04 | 103.95 | 0.8616 | 533.0 | 999999 | |
| 2.00 | -25.00 | 1.96 | -25.00 | -11.10 | 267.31 | -58.41 | 104.57 | 0.8657 | -294.2 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.93 | -12.99 | 266.39 | -59.33 | 106.53 | 0.8762 | -487.0 | -473.6 | |
| 3.27 | -25.00 | 3.32 | -25.00 | -12.17 | 266.45 | -59.26 | 105.62 | 0.8744 | -683.5 | 999999 | |
| 21.98 | -25.00 | 22.16 | -25.00 | -11.76 | 266.54 | -59.18 | 105.17 | 0.8730 | -595.6 | 999999 | |
| 1.36 | -25.00 | 1.36 | -25.00 | -10.97 | 266.69 | -59.03 | 104.31 | 0.8707 | 417.1 | 999999 | |
| 13.26 | -25.00 | 13.10 | -25.00 | -9.86 | 266.91 | -58.81 | 103.09 | 0.8673 | 695.5 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.76 | -13.24 | 265.72 | -59.99 | 106.68 | 0.8819 | -492.0 | -457.6 | |
| 0.00 | 2.27 | 0.00 | 2.38 | -13.50 | 265.55 | -60.17 | 106.93 | 0.8836 | -594.0 | -512.6 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -9.20 | 267.04 | -58.68 | 102.36 | 0.8653 | 297.0 | 272.3 | |
| 0.00 | 2.18 | 0.00 | 2.37 | -14.96 | 264.82 | -60.90 | 108.40 | 0.8915 | -152.0 | -158.9 | |
| 0.00 | 1.45 | 0.00 | 1.43 | -8.56 | 266.85 | -58.87 | 101.59 | 0.8661 | 521.0 | 451.7 | |
| 0.00 | 1.09 | 0.00 | 1.14 | -12.56 | 265.49 | -60.22 | 105.86 | 0.8827 | -423.0 | -339.3 | |
| 0.00 | 2.00 | 0.00 | 1.95 | -7.53 | 266.97 | -58.75 | 100.43 | 0.8637 | 553.0 | 430.4 | |
| 2.45 | 34.87 | 2.46 | 35.12 | -9.33 | 266.34 | -59.38 | 102.38 | 0.8714 | 486.4 | 55.9 | |
| 0.00 | 1.09 | 0.00 | 1.14 | -11.89 | 265.50 | -60.22 | 105.13 | 0.8817 | -228.0 | -135.5 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -9.77 | 266.15 | -59.57 | 102.85 | 0.8735 | 330.0 | 351.7 | |
| 6.45 | -40.00 | 6.46 | -40.00 | -9.02 | 266.30 | -59.42 | 102.02 | 0.8713 | 542.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.20 | -9.68 | 265.99 | -59.73 | 102.73 | 0.8747 | 303.0 | 336.0 | |
| 0.00 | 1.09 | 0.00 | 1.11 | -9.48 | 265.74 | -59.98 | 102.45 | 0.8765 | 328.0 | 302.2 | |
| 1.63 | -25.00 | 1.71 | -25.00 | -9.82 | 265.07 | -60.65 | 102.72 | 0.8824 | 579.9 | 999999 | |
| 3.45 | -25.00 | 3.62 | -25.00 | -9.58 | 264.89 | -60.83 | 102.42 | 0.8835 | 387.7 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.68 | -9.93 | 264.52 | -61.20 | 102.76 | 0.8869 | 296.0 | 252.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
