SDO HMI 2014-06-30 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.32 | 85.16 | 32.36 | 65.21 | 13.52 | 276.12 | -49.05 | 74.62 | 0.7630 | -98.2 | -8.5 | |
|
previous
or next observation for the same group /

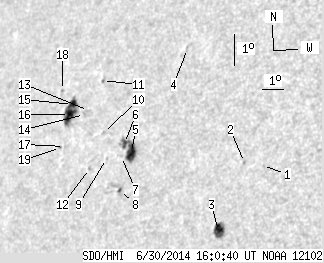

back to the solar disc SDO HMI 2014-06-30 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.49 | 13.18 | 282.67 | -42.49 | 73.68 | 0.6877 | -577.0 | -515.8 | |
| 0.00 | 1.09 | 0.00 | 0.75 | 13.25 | 281.88 | -43.28 | 73.77 | 0.6973 | -632.0 | -587.9 | |
| 9.72 | 13.89 | 6.73 | 9.62 | 11.12 | 281.20 | -43.97 | 76.94 | 0.7016 | -786.3 | -543.2 | |
| 0.00 | 1.91 | 0.00 | 1.41 | 16.70 | 278.40 | -46.76 | 69.92 | 0.7452 | 449.0 | 409.2 | |
| 11.71 | 23.97 | 8.85 | 18.16 | 13.39 | 276.74 | -48.42 | 74.65 | 0.7569 | -804.6 | -396.0 | |
| 2.54 | -5.00 | 1.94 | -5.00 | 13.65 | 276.34 | -48.83 | 74.38 | 0.7618 | -497.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.83 | 13.25 | 276.31 | -48.86 | 74.91 | 0.7615 | -414.0 | -333.7 | |
| 0.82 | 6.81 | 0.62 | 5.17 | 12.20 | 276.48 | -48.68 | 76.26 | 0.7580 | -414.0 | 74.4 | |
| 0.00 | 0.45 | 0.00 | 0.35 | 13.16 | 275.61 | -49.56 | 75.15 | 0.7689 | -369.0 | -324.4 | |
| 0.00 | 1.09 | 0.00 | 0.85 | 13.96 | 275.23 | -49.93 | 74.18 | 0.7741 | -385.0 | -273.6 | |
| 0.00 | 1.54 | 0.00 | 1.22 | 15.57 | 274.68 | -50.49 | 72.24 | 0.7826 | -429.0 | -304.6 | |
| 0.00 | 1.18 | 0.00 | 0.92 | 12.82 | 274.87 | -50.29 | 75.70 | 0.7764 | 443.0 | 482.6 | |
| 0.00 | 1.63 | 0.00 | 1.30 | 14.61 | 274.29 | -50.88 | 73.52 | 0.7851 | 731.0 | 608.7 | |
| 0.00 | 1.63 | 0.00 | 1.31 | 14.48 | 274.13 | -51.03 | 73.71 | 0.7865 | 672.0 | 512.3 | |
| 5.27 | 25.79 | 4.27 | 20.91 | 14.77 | 273.43 | -51.74 | 73.47 | 0.7942 | 621.9 | 454.8 | |
| 12.26 | -15.00 | 9.95 | -15.00 | 14.45 | 273.38 | -51.79 | 73.87 | 0.7942 | 710.3 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.44 | 13.46 | 273.44 | -51.73 | 75.11 | 0.7923 | -278.0 | -178.8 | |
| 0.00 | 0.82 | 0.00 | 0.67 | 15.18 | 272.77 | -52.40 | 73.06 | 0.8015 | 436.0 | 389.0 | |
| 0.00 | 1.00 | 0.00 | 0.81 | 13.42 | 273.24 | -51.92 | 75.19 | 0.7942 | -189.0 | -180.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
