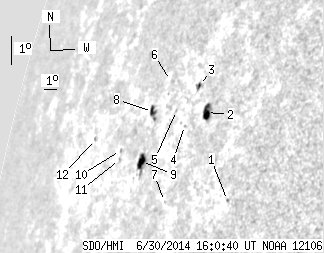

SDO HMI 2014-06-30 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.71 | 42.85 | 24.40 | 53.99 | 14.39 | 258.37 | -66.80 | 75.52 | 0.9203 | -226.6 | -108.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 1.22 | 12.50 | 264.02 | -61.15 | 77.28 | 0.8786 | -535.0 | -504.0 | |
| 7.54 | 11.44 | 8.52 | 12.93 | 15.14 | 261.32 | -63.84 | 74.51 | 0.9009 | -492.2 | -353.7 | |
| 1.09 | 3.27 | 1.28 | 3.85 | 15.95 | 260.33 | -64.83 | 73.70 | 0.9084 | -381.5 | -242.2 | |
| 0.00 | 0.82 | 0.00 | 0.97 | 14.67 | 259.95 | -65.21 | 75.13 | 0.9104 | -379.0 | -330.2 | |
| 0.00 | 1.09 | 0.00 | 1.34 | 15.11 | 259.08 | -66.09 | 74.72 | 0.9166 | 407.0 | 340.1 | |
| 0.00 | 0.64 | 0.00 | 0.81 | 16.01 | 258.01 | -67.15 | 73.81 | 0.9240 | 185.0 | 177.0 | |
| 0.00 | 0.45 | 0.00 | 0.54 | 12.28 | 259.69 | -65.48 | 77.77 | 0.9113 | -164.0 | -161.4 | |
| 3.36 | 7.08 | 4.44 | 9.33 | 14.99 | 257.19 | -67.98 | 74.95 | 0.9289 | 406.2 | 374.1 | |
| 7.72 | 12.80 | 10.16 | 16.83 | 13.43 | 257.24 | -67.93 | 76.64 | 0.9280 | -358.1 | -312.2 | |
| 0.00 | 1.18 | 0.00 | 1.70 | 13.68 | 255.22 | -69.94 | 76.45 | 0.9403 | -341.0 | -304.5 | |
| 0.00 | 1.45 | 0.00 | 2.08 | 13.40 | 255.31 | -69.85 | 76.74 | 0.9397 | -355.0 | -273.1 | |
| 0.00 | 1.45 | 0.00 | 2.39 | 13.91 | 252.58 | -72.59 | 76.29 | 0.9547 | 357.0 | 307.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
