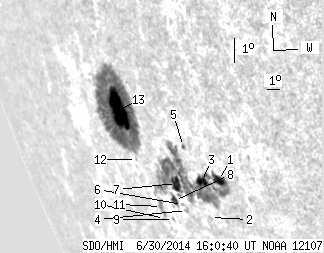

SDO HMI 2014-06-30 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.28 | 441.05 | 92.33 | 612.62 | -20.17 | 259.04 | -66.12 | 112.96 | 0.9331 | 226.1 | -65.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.17 | 188.33 | 10.76 | 240.80 | -21.20 | 263.33 | -61.84 | 114.96 | 0.9084 | 654.0 | -232.0 | |
| 0.00 | 1.73 | 0.00 | 2.17 | -22.50 | 261.73 | -63.44 | 115.96 | 0.9208 | -304.0 | -235.6 | |
| 7.26 | -1.00 | 8.92 | -1.00 | -21.29 | 262.05 | -63.12 | 114.75 | 0.9168 | 320.1 | 999999 | |
| 0.00 | 2.36 | 0.00 | 3.16 | -22.34 | 260.02 | -65.14 | 115.41 | 0.9307 | -328.0 | -337.3 | |
| 0.73 | 1.91 | 0.90 | 2.36 | -20.15 | 261.59 | -63.57 | 113.44 | 0.9180 | 112.0 | 39.1 | |
| 0.00 | 1.00 | 0.00 | 1.34 | -22.15 | 259.88 | -65.29 | 115.18 | 0.9312 | -575.0 | -563.8 | |
| 10.17 | -1.00 | 13.54 | -1.00 | -21.44 | 260.02 | -65.14 | 114.47 | 0.9294 | -536.1 | 999999 | |
| 3.45 | 5.63 | 4.74 | 7.72 | -22.04 | 259.33 | -65.83 | 114.95 | 0.9342 | -290.3 | -245.2 | |
| 0.00 | 1.09 | 0.00 | 1.55 | -22.71 | 258.62 | -66.54 | 115.49 | 0.9390 | -46.0 | -67.5 | |
| 0.00 | 1.36 | 0.00 | 2.01 | -22.71 | 257.85 | -67.31 | 115.34 | 0.9431 | -259.0 | -78.3 | |
| 0.00 | 7.54 | 0.00 | 10.98 | -22.30 | 258.00 | -67.16 | 114.94 | 0.9419 | 315.0 | 329.3 | |
| 0.00 | 0.64 | 0.00 | 0.94 | -20.78 | 257.31 | -67.86 | 113.22 | 0.9438 | 225.0 | 255.9 | |
| 36.50 | 229.46 | 53.47 | 339.59 | -19.17 | 257.19 | -67.97 | 111.53 | 0.9427 | 412.8 | 46.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
