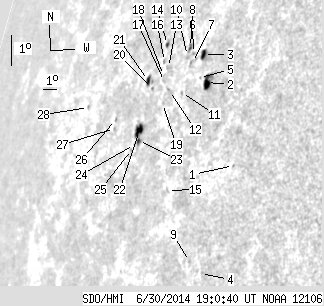

SDO HMI 2014-06-30 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.80 | 70.63 | 25.22 | 82.50 | 14.60 | 258.72 | -64.78 | 75.17 | 0.9069 | -138.9 | -7.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.71 | 12.63 | 264.15 | -59.35 | 76.98 | 0.8636 | -419.0 | -384.5 | |
| 6.72 | 12.80 | 7.19 | 13.67 | 15.11 | 261.30 | -62.20 | 74.41 | 0.8885 | -584.8 | -436.8 | |
| 3.27 | 4.72 | 3.59 | 5.18 | 15.97 | 260.63 | -62.87 | 73.51 | 0.8942 | -451.6 | -310.6 | |
| 0.00 | 0.64 | 0.00 | 0.63 | 9.25 | 263.22 | -60.28 | 80.95 | 0.8699 | 375.0 | 332.7 | |
| 0.00 | 0.54 | 0.00 | 0.59 | 15.25 | 260.75 | -62.75 | 74.30 | 0.8928 | -291.0 | -275.5 | |
| 0.00 | 1.09 | 0.00 | 1.22 | 15.97 | 259.92 | -63.58 | 73.57 | 0.8994 | -280.0 | -244.5 | |
| 0.00 | 3.18 | 0.00 | 3.56 | 15.69 | 260.01 | -63.49 | 73.88 | 0.8986 | 171.0 | 82.0 | |
| 0.91 | 3.63 | 1.03 | 4.13 | 16.15 | 259.60 | -63.90 | 73.41 | 0.9019 | -165.0 | -77.5 | |
| 0.00 | 0.91 | 0.00 | 0.93 | 9.59 | 262.42 | -61.08 | 80.60 | 0.8768 | 238.0 | 278.4 | |
| 0.00 | 1.91 | 0.00 | 2.17 | 15.89 | 259.53 | -63.97 | 73.70 | 0.9022 | 317.0 | 217.3 | |
| 0.00 | 1.18 | 0.00 | 1.33 | 14.73 | 259.75 | -63.75 | 74.96 | 0.9000 | -158.0 | -169.6 | |
| 0.00 | 1.72 | 0.00 | 2.01 | 14.76 | 258.85 | -64.65 | 75.00 | 0.9064 | 418.0 | 423.3 | |
| 0.00 | 2.36 | 0.00 | 2.80 | 15.46 | 258.37 | -65.13 | 74.26 | 0.9102 | 365.0 | 295.0 | |
| 1.09 | 2.81 | 1.32 | 3.40 | 16.17 | 257.86 | -65.64 | 73.53 | 0.9141 | 214.5 | 205.5 | |
| 0.00 | 1.27 | 0.00 | 1.40 | 11.69 | 260.19 | -63.31 | 78.32 | 0.8952 | 263.0 | 160.6 | |
| 0.00 | 1.63 | 0.00 | 1.97 | 15.63 | 257.96 | -65.54 | 74.10 | 0.9131 | 155.0 | 181.4 | |
| 0.00 | 1.09 | 0.00 | 1.29 | 15.02 | 258.33 | -65.17 | 74.75 | 0.9103 | 494.0 | 453.3 | |
| 0.00 | 0.91 | 0.00 | 1.08 | 15.20 | 258.15 | -65.35 | 74.57 | 0.9116 | 289.0 | 265.0 | |
| 0.00 | 0.73 | 0.00 | 0.85 | 14.34 | 258.56 | -64.94 | 75.48 | 0.9083 | 383.0 | 347.4 | |
| 0.00 | 1.00 | 0.00 | 1.22 | 14.77 | 257.55 | -65.95 | 75.08 | 0.9155 | 539.0 | 519.3 | |
| 2.54 | 5.63 | 3.16 | 6.97 | 15.00 | 257.10 | -66.40 | 74.86 | 0.9187 | 371.5 | 355.5 | |
| 6.36 | 14.80 | 7.82 | 18.18 | 13.44 | 257.29 | -66.21 | 76.55 | 0.9168 | -428.4 | -230.3 | |
| 0.91 | -22.00 | 1.11 | -22.00 | 13.13 | 257.38 | -66.12 | 76.88 | 0.9161 | -539.3 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.34 | 12.99 | 257.14 | -66.36 | 77.04 | 0.9177 | -199.0 | -197.7 | |
| 0.00 | 1.36 | 0.00 | 1.69 | 12.83 | 256.98 | -66.51 | 77.23 | 0.9186 | -232.0 | -194.5 | |
| 0.00 | 1.63 | 0.00 | 2.18 | 13.69 | 255.17 | -68.32 | 76.38 | 0.9306 | -370.0 | -270.5 | |
| 0.00 | 0.91 | 0.00 | 1.21 | 13.41 | 255.26 | -68.24 | 76.67 | 0.9300 | -339.0 | -354.8 | |
| 0.00 | 1.18 | 0.00 | 1.79 | 13.95 | 252.53 | -70.97 | 76.21 | 0.9461 | 349.0 | 318.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
