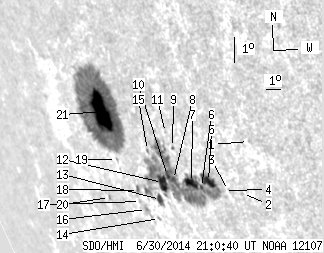

SDO HMI 2014-06-30 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.25 | 488.72 | 104.37 | 607.69 | -20.10 | 259.01 | -63.38 | 113.48 | 0.9163 | 287.3 | -29.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.79 | -19.71 | 266.56 | -55.82 | 114.98 | 0.8612 | 437.0 | 386.4 | |
| 0.00 | 1.09 | 0.00 | 1.11 | -21.48 | 265.19 | -57.20 | 116.54 | 0.8762 | 206.0 | 164.8 | |
| 0.00 | 1.09 | 0.00 | 1.14 | -21.42 | 264.37 | -58.02 | 116.23 | 0.8822 | 300.0 | 277.0 | |
| 0.00 | 1.45 | 0.00 | 1.53 | -21.43 | 264.11 | -58.28 | 116.16 | 0.8841 | 64.0 | 67.6 | |
| 11.44 | 201.56 | 12.32 | 232.30 | -21.17 | 263.26 | -59.13 | 115.64 | 0.8897 | 693.7 | -244.8 | |
| 1.36 | -5.00 | 1.50 | -5.00 | -21.39 | 262.66 | -59.73 | 115.72 | 0.8945 | 341.7 | 999999 | |
| 9.71 | -5.00 | 10.86 | -5.00 | -21.25 | 262.10 | -60.29 | 115.42 | 0.8981 | 417.4 | 999999 | |
| 3.00 | -5.00 | 3.48 | -5.00 | -21.20 | 260.91 | -61.48 | 115.07 | 0.9061 | -593.9 | 999999 | |
| 0.36 | 1.36 | 0.41 | 1.53 | -20.12 | 261.59 | -60.80 | 114.07 | 0.8995 | 150.2 | 114.7 | |
| 2.00 | -5.00 | 2.34 | -5.00 | -21.09 | 260.58 | -61.81 | 114.86 | 0.9081 | -723.5 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.61 | -19.63 | 261.44 | -60.95 | 113.51 | 0.8997 | 194.0 | 230.2 | |
| 11.26 | -5.00 | 13.48 | -5.00 | -21.34 | 260.03 | -62.35 | 115.00 | 0.9121 | -594.9 | 999999 | |
| 4.36 | 6.99 | 5.37 | 8.61 | -21.94 | 259.43 | -62.96 | 115.49 | 0.9170 | -377.2 | -224.1 | |
| 0.00 | 1.45 | 0.00 | 1.84 | -22.60 | 258.81 | -63.58 | 116.04 | 0.9219 | -171.0 | -104.3 | |
| 0.00 | 1.54 | 0.00 | 1.85 | -20.30 | 259.74 | -62.65 | 113.82 | 0.9123 | -136.0 | -189.8 | |
| 0.36 | 6.45 | 0.47 | 8.36 | -22.33 | 258.05 | -64.34 | 115.59 | 0.9260 | 437.8 | 335.9 | |
| 0.00 | 1.36 | 0.00 | 1.78 | -22.08 | 257.81 | -64.58 | 115.26 | 0.9271 | 368.0 | 366.7 | |
| 0.00 | 3.09 | 0.00 | 4.00 | -21.70 | 257.98 | -64.41 | 114.91 | 0.9255 | -432.0 | -323.9 | |
| 0.00 | 1.00 | 0.00 | 1.32 | -20.72 | 257.09 | -65.30 | 113.68 | 0.9294 | 184.0 | 144.2 | |
| 0.36 | 1.63 | 0.53 | 2.37 | -22.06 | 255.31 | -67.08 | 114.72 | 0.9412 | -205.8 | -152.6 | |
| 41.04 | 257.30 | 53.61 | 338.55 | -19.14 | 257.18 | -65.21 | 112.03 | 0.9268 | 594.7 | 103.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
