SDO HMI 2014-06-30 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.30 | 132.31 | 34.35 | 95.02 | 13.43 | 276.18 | -45.65 | 74.07 | 0.7245 | -336.5 | 87.7 | |
|
previous
or next observation for the same group /

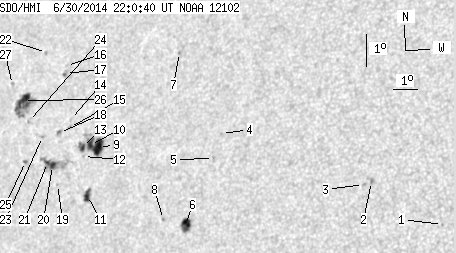

back to the solar disc SDO HMI 2014-06-30 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.42 | 11.35 | 291.04 | -30.79 | 72.84 | 0.5274 | -697.0 | -577.8 | |
| 0.00 | 2.09 | 0.00 | 1.26 | 12.61 | 288.25 | -33.58 | 71.75 | 0.5705 | -836.0 | -726.9 | |
| 0.00 | 1.63 | 0.00 | 0.99 | 12.51 | 287.97 | -33.87 | 72.04 | 0.5740 | -654.0 | -583.7 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 13.94 | 282.15 | -39.68 | 71.81 | 0.6546 | -565.0 | -404.6 | |
| 0.00 | 1.82 | 0.00 | 1.19 | 13.15 | 281.98 | -39.85 | 73.04 | 0.6547 | -690.0 | -529.4 | |
| 8.53 | 11.08 | 5.61 | 7.28 | 11.08 | 281.21 | -40.62 | 76.34 | 0.6598 | -855.6 | -567.4 | |
| 0.00 | 1.27 | 0.00 | 0.87 | 16.40 | 279.82 | -42.02 | 68.97 | 0.6902 | 635.0 | 518.1 | |
| 0.00 | 1.18 | 0.00 | 0.79 | 11.21 | 280.28 | -41.56 | 76.36 | 0.6719 | -639.0 | -559.9 | |
| 12.17 | 33.32 | 8.60 | 23.67 | 13.34 | 277.05 | -44.78 | 74.02 | 0.7152 | -923.5 | -445.3 | |
| 5.18 | -9.00 | 3.68 | -9.00 | 13.42 | 276.68 | -45.15 | 73.99 | 0.7198 | -682.5 | 999999 | |
| 5.08 | 7.63 | 3.59 | 5.38 | 11.84 | 276.90 | -44.93 | 76.12 | 0.7143 | -708.5 | -437.8 | |
| 0.00 | 0.91 | 0.00 | 0.65 | 13.04 | 276.46 | -45.38 | 74.56 | 0.7216 | -494.0 | -382.8 | |
| 2.63 | -9.00 | 1.88 | -9.00 | 13.32 | 276.35 | -45.49 | 74.20 | 0.7235 | -595.3 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.66 | 14.16 | 275.59 | -46.24 | 73.21 | 0.7338 | -239.0 | -218.9 | |
| 0.00 | 1.73 | 0.00 | 1.25 | 13.91 | 275.61 | -46.22 | 73.54 | 0.7331 | -644.0 | -443.3 | |
| 0.00 | 1.27 | 0.00 | 0.94 | 15.83 | 274.93 | -46.90 | 71.13 | 0.7446 | -432.0 | -329.4 | |
| 0.00 | 2.45 | 0.00 | 1.81 | 15.58 | 274.96 | -46.87 | 71.46 | 0.7438 | -754.0 | -612.8 | |
| 0.64 | 2.09 | 0.46 | 1.53 | 13.74 | 275.20 | -46.64 | 73.86 | 0.7375 | -524.3 | -378.1 | |
| 0.00 | 0.91 | 0.00 | 0.66 | 12.14 | 275.49 | -46.34 | 75.98 | 0.7313 | 621.0 | 515.9 | |
| 3.63 | 22.70 | 2.65 | 16.53 | 12.71 | 275.13 | -46.70 | 75.26 | 0.7364 | 947.0 | 459.5 | |
| 1.91 | -20.00 | 1.40 | -20.00 | 12.80 | 274.88 | -46.95 | 75.19 | 0.7394 | 817.4 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.30 | 16.21 | 273.88 | -47.96 | 70.90 | 0.7570 | -495.0 | -368.2 | |
| 0.00 | 1.63 | 0.00 | 1.21 | 13.59 | 274.45 | -47.38 | 74.21 | 0.7456 | -366.0 | -147.6 | |
| 0.00 | 1.00 | 0.00 | 0.75 | 14.03 | 273.67 | -48.16 | 73.78 | 0.7550 | 681.0 | 661.8 | |
| 0.54 | 1.73 | 0.41 | 1.29 | 12.79 | 273.86 | -47.97 | 75.38 | 0.7509 | -635.5 | -473.9 | |
| 7.99 | 29.96 | 6.07 | 22.74 | 14.68 | 273.25 | -48.58 | 73.02 | 0.7607 | 665.0 | 637.2 | |
| 0.00 | 1.63 | 0.00 | 1.26 | 15.15 | 272.57 | -49.26 | 72.54 | 0.7689 | 504.0 | 421.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
