SDO HMI 2014-06-30 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 162.08 | 866.92 | 141.02 | 756.24 | -10.72 | 267.81 | -54.03 | 105.10 | 0.8254 | 325.8 | 231.1 | |
|
previous
or next observation for the same group /

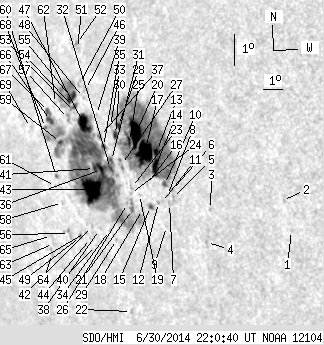

back to the solar disc SDO HMI 2014-06-30 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.67 | -12.78 | 276.24 | -45.59 | 110.08 | 0.7440 | 369.0 | 303.6 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -11.84 | 276.05 | -45.78 | 108.79 | 0.7432 | 365.0 | 370.5 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -12.25 | 272.62 | -49.22 | 108.21 | 0.7812 | -367.0 | -375.6 | |
| 0.00 | 1.27 | 0.00 | 1.02 | -13.31 | 272.14 | -49.69 | 109.38 | 0.7889 | 608.0 | 456.5 | |
| 0.00 | 1.45 | 0.00 | 1.19 | -11.94 | 270.84 | -50.99 | 107.32 | 0.7985 | 653.0 | 603.0 | |
| 0.00 | 1.91 | 0.00 | 1.56 | -11.72 | 270.85 | -50.98 | 107.05 | 0.7979 | 772.0 | 690.0 | |
| 0.00 | 2.00 | 0.00 | 1.65 | -12.14 | 270.64 | -51.19 | 107.50 | 0.8010 | -118.0 | -91.1 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -11.89 | 270.61 | -51.23 | 107.19 | 0.8008 | 564.0 | 503.5 | |
| 0.00 | 0.64 | 0.00 | 0.53 | -12.88 | 270.28 | -51.55 | 108.30 | 0.8064 | 242.0 | 250.9 | |
| 1.73 | 332.85 | 1.42 | 276.81 | -11.54 | 270.55 | -51.29 | 106.75 | 0.8006 | 718.7 | 421.6 | |
| 0.00 | 0.45 | 0.00 | 0.38 | -12.12 | 270.24 | -51.59 | 107.37 | 0.8050 | 491.0 | 406.8 | |
| 0.00 | 1.18 | 0.00 | 0.98 | -12.13 | 270.09 | -51.75 | 107.34 | 0.8065 | 520.0 | 443.5 | |
| 4.09 | -10.00 | 3.36 | -10.00 | -10.51 | 270.40 | -51.43 | 105.45 | 0.7998 | 1200.7 | 999999 | |
| 9.99 | -10.00 | 8.25 | -10.00 | -10.99 | 270.24 | -51.60 | 106.00 | 0.8025 | 881.9 | 999999 | |
| 1.36 | 2.27 | 1.15 | 1.91 | -12.27 | 269.64 | -52.19 | 107.39 | 0.8112 | 612.0 | 478.5 | |
| 0.00 | 1.00 | 0.00 | 0.84 | -11.58 | 269.63 | -52.21 | 106.55 | 0.8098 | 371.0 | 281.3 | |
| 27.87 | -10.00 | 23.22 | -10.00 | -10.57 | 269.78 | -52.05 | 105.37 | 0.8061 | 979.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.85 | -12.38 | 269.20 | -52.64 | 107.41 | 0.8158 | 328.0 | 333.7 | |
| 0.00 | 0.82 | 0.00 | 0.69 | -11.91 | 269.18 | -52.66 | 106.84 | 0.8149 | 510.0 | 496.1 | |
| 20.70 | -10.00 | 17.33 | -10.00 | -9.99 | 269.46 | -52.37 | 104.58 | 0.8081 | 917.8 | 999999 | |
| 1.54 | 417.57 | 1.33 | 375.26 | -12.40 | 268.67 | -53.16 | 107.30 | 0.8208 | 473.4 | 141.4 | |
| 0.00 | 1.91 | 0.00 | 1.73 | -15.69 | 267.48 | -54.36 | 110.84 | 0.8392 | 538.0 | 382.7 | |
| 0.00 | 2.00 | 0.00 | 1.71 | -11.70 | 268.82 | -53.01 | 106.50 | 0.8179 | 418.0 | 304.6 | |
| 0.00 | 1.00 | 0.00 | 0.86 | -11.90 | 268.71 | -53.12 | 106.71 | 0.8194 | 218.0 | 179.1 | |
| 3.09 | -10.00 | 2.61 | -10.00 | -10.25 | 269.09 | -52.74 | 104.82 | 0.8123 | 255.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -12.22 | 268.46 | -53.37 | 107.03 | 0.8225 | -180.0 | -144.5 | |
| 0.00 | 4.90 | 0.00 | 4.22 | -11.00 | 268.49 | -53.34 | 105.57 | 0.8197 | 566.0 | 416.3 | |
| 2.81 | -10.00 | 2.40 | -10.00 | -9.77 | 268.64 | -53.19 | 104.13 | 0.8158 | 491.4 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.81 | -13.40 | 267.50 | -54.33 | 108.17 | 0.8339 | -607.0 | -529.5 | |
| 3.27 | -10.00 | 2.80 | -10.00 | -10.06 | 268.41 | -53.42 | 104.43 | 0.8186 | 178.6 | 999999 | |
| 1.63 | -21.00 | 1.42 | -21.00 | -10.89 | 267.99 | -53.84 | 105.33 | 0.8242 | 598.9 | 999999 | |
| 2.72 | -21.00 | 2.38 | -21.00 | -11.15 | 267.87 | -53.96 | 105.60 | 0.8259 | 20.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.25 | -9.82 | 268.21 | -53.62 | 104.10 | 0.8201 | -136.0 | -43.2 | |
| 0.00 | 0.91 | 0.00 | 0.82 | -13.12 | 267.22 | -54.62 | 107.78 | 0.8360 | -555.0 | -462.5 | |
| 1.91 | -21.00 | 1.67 | -21.00 | -10.47 | 267.68 | -54.15 | 104.75 | 0.8264 | 682.3 | 999999 | |
| 5.54 | -21.00 | 4.90 | -21.00 | -11.20 | 267.37 | -54.46 | 105.55 | 0.8307 | -292.5 | 999999 | |
| 1.00 | 2.36 | 0.88 | 2.07 | -10.16 | 267.55 | -54.29 | 104.36 | 0.8271 | 612.5 | 538.3 | |
| 0.00 | 0.64 | 0.00 | 0.58 | -13.12 | 266.67 | -55.16 | 107.63 | 0.8409 | -631.0 | -548.6 | |
| 0.00 | 1.00 | 0.00 | 0.87 | -9.47 | 267.55 | -54.28 | 103.54 | 0.8258 | 590.0 | 517.4 | |
| 0.00 | 0.73 | 0.00 | 0.67 | -13.64 | 266.32 | -55.51 | 108.15 | 0.8450 | -507.0 | -485.4 | |
| 2.18 | -21.00 | 1.95 | -21.00 | -11.18 | 267.00 | -54.83 | 105.45 | 0.8341 | 374.8 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.83 | -13.04 | 266.31 | -55.52 | 107.45 | 0.8440 | -393.0 | -387.6 | |
| 31.51 | -21.00 | 28.48 | -21.00 | -11.86 | 266.64 | -55.20 | 106.16 | 0.8387 | -802.1 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.50 | -13.42 | 266.06 | -55.77 | 107.85 | 0.8469 | -361.0 | -407.5 | |
| 0.00 | 1.27 | 0.00 | 1.18 | -13.24 | 265.85 | -55.99 | 107.58 | 0.8485 | -526.0 | -452.1 | |
| 0.00 | 3.54 | 0.00 | 3.12 | -8.71 | 267.14 | -54.69 | 102.54 | 0.8285 | 633.0 | 551.0 | |
| 17.25 | -21.00 | 15.38 | -21.00 | -9.81 | 266.82 | -55.01 | 103.79 | 0.8333 | 831.0 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.72 | -8.97 | 266.97 | -54.86 | 102.82 | 0.8305 | 448.0 | 417.3 | |
| 0.91 | 2.45 | 0.85 | 2.30 | -13.38 | 265.51 | -56.32 | 107.67 | 0.8517 | -580.9 | -447.1 | |
| 0.00 | 2.81 | 0.00 | 2.49 | -8.54 | 266.85 | -54.98 | 102.28 | 0.8310 | 474.0 | 432.7 | |
| 0.00 | 1.09 | 0.00 | 0.96 | -7.45 | 266.97 | -54.87 | 101.00 | 0.8282 | 633.0 | 476.6 | |
| 0.00 | 1.82 | 0.00 | 1.60 | -7.29 | 266.94 | -54.89 | 100.81 | 0.8282 | 321.0 | 260.1 | |
| 0.00 | 1.45 | 0.00 | 1.31 | -9.43 | 266.38 | -55.46 | 103.24 | 0.8369 | 111.0 | 122.4 | |
| 2.72 | 43.40 | 2.45 | 39.22 | -9.27 | 266.36 | -55.48 | 103.06 | 0.8368 | 525.8 | 61.4 | |
| 8.08 | -54.00 | 7.27 | -54.00 | -8.99 | 266.31 | -55.52 | 102.72 | 0.8368 | 608.5 | 999999 | |
| 0.00 | 5.45 | 0.00 | 5.20 | -13.31 | 264.91 | -56.93 | 107.44 | 0.8568 | -672.0 | -447.4 | |
| 0.00 | 3.99 | 0.00 | 3.63 | -9.66 | 265.99 | -55.85 | 103.44 | 0.8409 | 449.0 | 346.8 | |
| 0.00 | 1.36 | 0.00 | 1.30 | -12.34 | 264.85 | -56.98 | 106.31 | 0.8555 | -385.0 | -324.6 | |
| 2.09 | -21.00 | 1.94 | -21.00 | -10.44 | 265.33 | -56.50 | 104.21 | 0.8481 | 546.9 | 999999 | |
| 0.82 | 1.91 | 0.77 | 1.81 | -11.53 | 264.77 | -57.06 | 105.36 | 0.8548 | -321.2 | -230.6 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -11.85 | 264.61 | -57.22 | 105.69 | 0.8568 | -184.0 | -189.3 | |
| 0.00 | 1.36 | 0.00 | 1.26 | -9.22 | 265.37 | -56.46 | 102.80 | 0.8458 | 236.0 | 133.2 | |
| 0.00 | 1.45 | 0.00 | 1.43 | -13.68 | 263.83 | -58.00 | 107.61 | 0.8666 | -426.0 | -306.1 | |
| 0.00 | 2.63 | 0.00 | 2.62 | -14.00 | 263.64 | -58.20 | 107.94 | 0.8687 | -562.0 | -424.4 | |
| 0.00 | 1.09 | 0.00 | 1.07 | -13.42 | 263.81 | -58.03 | 107.32 | 0.8663 | -346.0 | -265.9 | |
| 4.18 | -21.00 | 3.91 | -21.00 | -9.77 | 264.95 | -56.89 | 103.36 | 0.8505 | 515.2 | 999999 | |
| 2.36 | -21.00 | 2.21 | -21.00 | -9.49 | 264.91 | -56.93 | 103.03 | 0.8504 | 477.7 | 999999 | |
| 0.73 | -21.00 | 0.69 | -21.00 | -10.00 | 264.60 | -57.24 | 103.56 | 0.8539 | 321.4 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.62 | -10.04 | 263.71 | -58.12 | 103.44 | 0.8617 | -311.0 | -298.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
