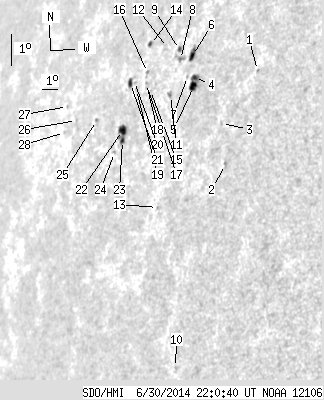

SDO HMI 2014-06-30 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.23 | 68.74 | 28.53 | 74.92 | 14.58 | 259.09 | -62.74 | 75.03 | 0.8915 | -185.9 | -108.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 1.00 | 15.69 | 265.02 | -56.81 | 73.15 | 0.8439 | -499.0 | -423.6 | |
| 0.00 | 2.09 | 0.00 | 1.94 | 12.72 | 264.32 | -57.51 | 76.74 | 0.8475 | -430.0 | -371.0 | |
| 0.00 | 1.36 | 0.00 | 1.29 | 13.97 | 263.61 | -58.22 | 75.34 | 0.8548 | -435.0 | -369.8 | |
| 2.36 | 12.53 | 2.40 | 12.71 | 15.32 | 261.33 | -60.50 | 74.02 | 0.8752 | -563.3 | -487.1 | |
| 5.08 | -4.00 | 5.16 | -4.00 | 15.04 | 261.40 | -60.43 | 74.33 | 0.8744 | -645.3 | 999999 | |
| 4.63 | 7.81 | 4.79 | 8.07 | 15.99 | 260.86 | -60.97 | 73.30 | 0.8795 | -445.6 | -305.7 | |
| 0.00 | 1.09 | 0.00 | 1.12 | 15.33 | 260.87 | -60.97 | 74.05 | 0.8789 | -212.0 | -176.4 | |
| 0.54 | 4.18 | 0.58 | 4.41 | 15.84 | 260.14 | -61.69 | 73.55 | 0.8850 | 249.5 | -6.5 | |
| 1.09 | 2.45 | 1.16 | 2.61 | 16.14 | 259.91 | -61.92 | 73.23 | 0.8870 | -303.5 | -155.3 | |
| 0.00 | 0.64 | 0.00 | 0.61 | 6.40 | 263.08 | -58.76 | 84.23 | 0.8560 | 347.0 | 324.7 | |
| 0.45 | 3.00 | 0.48 | 3.17 | 14.70 | 260.05 | -61.79 | 74.85 | 0.8849 | -467.6 | -326.1 | |
| 0.00 | 0.45 | 0.00 | 0.50 | 16.17 | 259.07 | -62.77 | 73.29 | 0.8935 | 235.0 | 193.4 | |
| 0.00 | 1.00 | 0.00 | 1.03 | 11.23 | 260.66 | -61.17 | 78.74 | 0.8781 | -351.0 | -286.8 | |
| 1.36 | 2.18 | 1.56 | 2.49 | 16.21 | 257.83 | -64.01 | 73.35 | 0.9027 | 361.5 | 346.1 | |
| 0.00 | 0.45 | 0.00 | 0.50 | 14.80 | 258.62 | -63.21 | 74.86 | 0.8960 | 538.0 | 515.8 | |
| 0.00 | 1.54 | 0.00 | 1.74 | 15.34 | 258.11 | -63.72 | 74.29 | 0.9000 | 532.0 | 427.1 | |
| 0.00 | 1.00 | 0.00 | 1.11 | 14.88 | 258.36 | -63.47 | 74.79 | 0.8979 | 532.0 | 439.3 | |
| 0.00 | 1.18 | 0.00 | 1.32 | 15.00 | 258.23 | -63.61 | 74.66 | 0.8990 | 522.0 | 494.0 | |
| 0.00 | 0.27 | 0.00 | 0.31 | 14.78 | 257.62 | -64.21 | 74.95 | 0.9033 | 438.0 | 484.3 | |
| 0.00 | 0.91 | 0.00 | 1.05 | 15.02 | 257.34 | -64.49 | 74.71 | 0.9055 | 372.0 | 337.3 | |
| 3.00 | 4.27 | 3.50 | 4.98 | 14.95 | 257.08 | -64.75 | 74.81 | 0.9072 | 392.8 | 332.1 | |
| 5.36 | 13.89 | 6.19 | 16.03 | 13.48 | 257.28 | -64.56 | 76.41 | 0.9052 | -498.9 | -301.0 | |
| 2.36 | -22.00 | 2.71 | -22.00 | 13.18 | 257.43 | -64.40 | 76.74 | 0.9039 | -569.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.48 | 12.79 | 257.03 | -64.80 | 77.20 | 0.9067 | -298.0 | -188.1 | |
| 0.00 | 1.27 | 0.00 | 1.59 | 13.71 | 255.16 | -66.67 | 76.29 | 0.9199 | -289.0 | -284.0 | |
| 0.00 | 0.91 | 0.00 | 1.21 | 13.63 | 253.55 | -68.29 | 76.44 | 0.9303 | -159.0 | -89.8 | |
| 0.00 | 1.09 | 0.00 | 1.52 | 14.03 | 252.50 | -69.33 | 76.07 | 0.9367 | 355.0 | 334.3 | |
| 0.00 | 0.82 | 0.00 | 1.13 | 13.22 | 252.75 | -69.08 | 76.92 | 0.9351 | 374.0 | 364.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
