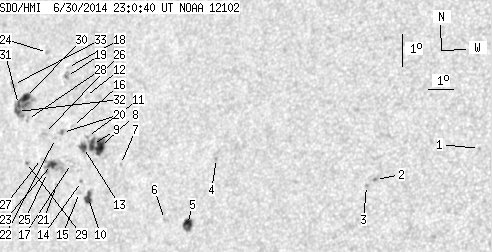

SDO HMI 2014-06-30 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.31 | 138.65 | 36.29 | 98.85 | 13.43 | 276.04 | -45.24 | 73.97 | 0.7197 | -262.6 | 136.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-30 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.79 | 13.72 | 291.95 | -29.33 | 67.73 | 0.5163 | -634.0 | -492.3 | |
| 0.00 | 2.27 | 0.00 | 1.36 | 12.67 | 288.28 | -32.99 | 71.43 | 0.5626 | -838.0 | -576.8 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 12.47 | 287.98 | -33.30 | 71.89 | 0.5662 | -693.0 | -620.5 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 13.15 | 282.03 | -39.25 | 72.88 | 0.6469 | -692.0 | -555.9 | |
| 7.72 | 10.53 | 5.03 | 6.87 | 11.08 | 281.22 | -40.06 | 76.24 | 0.6525 | -873.9 | -582.1 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 11.20 | 280.26 | -41.02 | 76.26 | 0.6651 | -680.0 | -616.1 | |
| 0.00 | 1.09 | 0.00 | 0.75 | 12.84 | 278.09 | -43.19 | 74.37 | 0.6952 | -601.0 | -509.6 | |
| 11.44 | 23.15 | 8.00 | 16.24 | 13.36 | 277.10 | -44.18 | 73.85 | 0.7081 | -929.6 | -575.3 | |
| 5.54 | -8.00 | 3.90 | -8.00 | 13.42 | 276.74 | -44.54 | 73.86 | 0.7125 | -708.0 | 999999 | |
| 5.54 | 7.81 | 3.87 | 5.45 | 11.78 | 276.92 | -44.36 | 76.12 | 0.7073 | -713.7 | -479.1 | |
| 0.00 | 1.54 | 0.00 | 1.09 | 13.66 | 276.46 | -44.82 | 73.59 | 0.7163 | -420.0 | -344.6 | |
| 0.00 | 0.82 | 0.00 | 0.58 | 14.89 | 276.06 | -45.22 | 71.99 | 0.7236 | -436.0 | -343.6 | |
| 4.36 | 6.45 | 3.09 | 4.57 | 13.31 | 276.37 | -44.91 | 74.09 | 0.7167 | -573.4 | -388.7 | |
| 0.00 | 1.18 | 0.00 | 0.83 | 12.26 | 276.52 | -44.76 | 75.52 | 0.7130 | -510.0 | -401.9 | |
| 0.00 | 1.73 | 0.00 | 1.21 | 11.92 | 276.50 | -44.78 | 76.00 | 0.7126 | 399.0 | 306.3 | |
| 0.00 | 1.54 | 0.00 | 1.11 | 13.94 | 275.72 | -45.56 | 73.37 | 0.7255 | -542.0 | -392.0 | |
| 0.00 | 3.36 | 0.00 | 2.39 | 12.80 | 275.95 | -45.33 | 74.89 | 0.7206 | 19.0 | -45.4 | |
| 0.00 | 0.91 | 0.00 | 0.66 | 15.76 | 274.99 | -46.28 | 71.08 | 0.7376 | -555.0 | -426.8 | |
| 0.73 | 3.54 | 0.53 | 2.58 | 15.48 | 275.03 | -46.25 | 71.45 | 0.7366 | -710.6 | -566.2 | |
| 0.64 | 2.81 | 0.46 | 2.03 | 13.74 | 275.32 | -45.96 | 73.73 | 0.7297 | -535.4 | -369.0 | |
| 0.00 | 1.09 | 0.00 | 0.78 | 12.10 | 275.44 | -45.84 | 75.95 | 0.7254 | 773.0 | 645.7 | |
| 0.00 | 1.00 | 0.00 | 0.72 | 13.55 | 275.05 | -46.23 | 74.05 | 0.7324 | 201.0 | 215.4 | |
| 4.81 | 17.98 | 3.48 | 12.97 | 12.74 | 275.07 | -46.21 | 75.14 | 0.7308 | 909.9 | 632.4 | |
| 0.00 | 1.91 | 0.00 | 1.42 | 16.20 | 273.93 | -47.35 | 70.76 | 0.7503 | -380.0 | -307.1 | |
| 0.00 | 1.36 | 0.00 | 0.99 | 12.48 | 274.94 | -46.34 | 75.51 | 0.7318 | 532.0 | 468.9 | |
| 0.00 | 2.36 | 0.00 | 1.73 | 13.68 | 274.51 | -46.77 | 73.98 | 0.7388 | 296.0 | 185.8 | |
| 0.00 | 0.91 | 0.00 | 0.66 | 12.91 | 274.57 | -46.71 | 75.01 | 0.7368 | 593.0 | 448.6 | |
| 0.00 | 2.09 | 0.00 | 1.56 | 14.09 | 273.62 | -47.66 | 73.62 | 0.7496 | 845.0 | 715.7 | |
| 0.00 | 1.45 | 0.00 | 1.07 | 12.76 | 273.91 | -47.36 | 75.33 | 0.7440 | -681.0 | -535.8 | |
| 5.81 | 31.78 | 4.37 | 23.86 | 14.77 | 273.33 | -47.95 | 72.78 | 0.7540 | 693.1 | 667.1 | |
| 2.00 | -30.00 | 1.51 | -30.00 | 14.54 | 273.06 | -48.22 | 73.14 | 0.7565 | 580.8 | 999999 | |
| 2.72 | -30.00 | 2.05 | -30.00 | 14.32 | 273.08 | -48.20 | 73.42 | 0.7559 | 608.4 | 999999 | |
| 0.00 | 3.00 | 0.00 | 2.28 | 15.15 | 272.64 | -48.64 | 72.43 | 0.7622 | 400.0 | 425.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
