SDO HMI 2014-07-01 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.53 | 511.27 | 107.36 | 599.69 | -20.09 | 258.96 | -61.77 | 113.85 | 0.9058 | 294.3 | -18.5 | |
|
previous
or next observation for the same group /

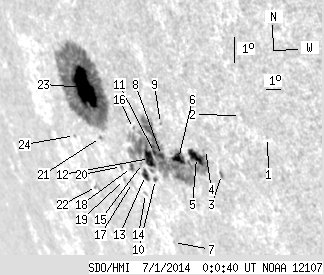

back to the solar disc SDO HMI 2014-07-01 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.90 | -20.30 | 267.78 | -52.94 | 116.59 | 0.8391 | 128.0 | 204.2 | |
| 0.00 | 0.73 | 0.00 | 0.67 | -19.62 | 266.64 | -54.09 | 115.44 | 0.8469 | 406.0 | 366.8 | |
| 0.00 | 2.09 | 0.00 | 2.09 | -21.67 | 264.43 | -56.30 | 117.02 | 0.8699 | 429.0 | 332.1 | |
| 0.00 | 2.09 | 0.00 | 2.10 | -20.86 | 263.95 | -56.77 | 115.99 | 0.8716 | 122.0 | 199.6 | |
| 12.99 | 206.05 | 13.34 | 224.91 | -21.15 | 263.23 | -57.50 | 116.10 | 0.8778 | 714.3 | -264.9 | |
| 9.08 | -5.00 | 9.65 | -5.00 | -21.24 | 262.05 | -58.67 | 115.86 | 0.8867 | 471.2 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.75 | -24.16 | 259.58 | -61.14 | 118.32 | 0.9095 | -474.0 | -410.4 | |
| 2.72 | -5.00 | 2.99 | -5.00 | -21.18 | 260.99 | -59.73 | 115.51 | 0.8941 | -648.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.06 | -20.10 | 261.63 | -59.10 | 114.50 | 0.8874 | 361.0 | 226.8 | |
| 0.82 | 2.09 | 0.93 | 2.38 | -22.03 | 260.00 | -60.72 | 116.15 | 0.9026 | -600.7 | -538.0 | |
| 2.27 | -5.00 | 2.52 | -5.00 | -21.10 | 260.59 | -60.14 | 115.31 | 0.8968 | -746.8 | 999999 | |
| 11.71 | -5.00 | 13.25 | -5.00 | -21.32 | 260.10 | -60.62 | 115.42 | 0.9006 | -632.9 | 999999 | |
| 4.81 | 7.08 | 5.59 | 8.23 | -21.92 | 259.40 | -61.33 | 115.88 | 0.9065 | -386.8 | -188.2 | |
| 0.00 | 1.73 | 0.00 | 2.05 | -22.54 | 258.92 | -61.80 | 116.43 | 0.9107 | -137.0 | -103.4 | |
| 0.00 | 2.63 | 0.00 | 3.05 | -21.52 | 259.49 | -61.24 | 115.48 | 0.9051 | -340.0 | -202.8 | |
| 0.00 | 0.82 | 0.00 | 0.93 | -20.35 | 259.69 | -61.03 | 114.27 | 0.9016 | -246.0 | -192.8 | |
| 0.00 | 1.63 | 0.00 | 1.98 | -22.21 | 258.26 | -62.46 | 115.90 | 0.9144 | 358.0 | 346.4 | |
| 2.00 | 3.72 | 2.38 | 4.43 | -21.69 | 258.59 | -62.13 | 115.44 | 0.9114 | -49.2 | -50.8 | |
| 0.00 | 1.00 | 0.00 | 1.23 | -22.13 | 257.74 | -62.98 | 115.70 | 0.9175 | 383.0 | 395.7 | |
| 0.00 | 2.36 | 0.00 | 2.89 | -21.69 | 257.88 | -62.85 | 115.26 | 0.9160 | -145.0 | -90.9 | |
| 0.54 | 1.54 | 0.68 | 1.93 | -20.77 | 257.06 | -63.67 | 114.09 | 0.9197 | 203.2 | 107.5 | |
| 0.00 | 2.91 | 0.00 | 3.95 | -22.48 | 255.30 | -65.42 | 115.51 | 0.9326 | -450.0 | -276.7 | |
| 45.59 | 268.98 | 56.03 | 332.57 | -19.12 | 257.10 | -63.63 | 112.35 | 0.9169 | 640.8 | 144.7 | |
| 0.00 | 1.18 | 0.00 | 1.59 | -20.80 | 255.03 | -65.70 | 113.68 | 0.9319 | 252.0 | 233.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
