SDO HMI 2014-07-01 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.95 | 138.78 | 32.39 | 96.62 | 13.30 | 276.33 | -43.84 | 73.86 | 0.7030 | -246.9 | 51.6 | |
|
previous
or next observation for the same group /

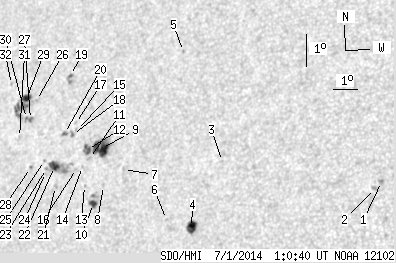

back to the solar disc SDO HMI 2014-07-01 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.82 | 0.00 | 1.66 | 12.65 | 288.26 | -31.92 | 71.02 | 0.5476 | -861.0 | -714.5 | |
| 0.00 | 2.82 | 0.00 | 1.67 | 12.42 | 288.03 | -32.15 | 71.52 | 0.5500 | -840.0 | -631.6 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 13.10 | 282.10 | -38.07 | 72.60 | 0.6317 | -579.0 | -512.7 | |
| 7.90 | 10.26 | 5.07 | 6.59 | 11.03 | 281.21 | -38.96 | 76.07 | 0.6382 | -867.5 | -534.2 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 16.47 | 279.78 | -40.39 | 68.34 | 0.6709 | 623.0 | 510.1 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 11.25 | 280.17 | -40.01 | 75.98 | 0.6521 | -624.0 | -549.9 | |
| 0.00 | 1.18 | 0.00 | 0.80 | 12.73 | 278.11 | -42.06 | 74.27 | 0.6812 | -556.0 | -442.8 | |
| 0.00 | 1.00 | 0.00 | 0.68 | 12.21 | 277.37 | -42.81 | 75.19 | 0.6892 | -127.0 | -99.1 | |
| 17.62 | 33.42 | 12.12 | 23.02 | 13.35 | 277.04 | -43.13 | 73.64 | 0.6956 | -868.2 | -480.1 | |
| 3.45 | 10.35 | 2.36 | 7.09 | 11.64 | 277.05 | -43.12 | 76.07 | 0.6920 | -756.7 | -568.9 | |
| 0.00 | 2.36 | 0.00 | 1.63 | 13.03 | 276.60 | -43.58 | 74.21 | 0.7002 | -453.0 | -376.6 | |
| 3.27 | -9.00 | 2.27 | -9.00 | 13.30 | 276.45 | -43.73 | 73.85 | 0.7026 | -595.8 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.31 | 12.19 | 276.56 | -43.62 | 75.40 | 0.6991 | -427.0 | -385.0 | |
| 0.00 | 0.82 | 0.00 | 0.57 | 12.77 | 276.35 | -43.83 | 74.62 | 0.7027 | -452.0 | -347.8 | |
| 0.00 | 0.73 | 0.00 | 0.51 | 13.87 | 275.83 | -44.34 | 73.20 | 0.7111 | -597.0 | -501.4 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 12.70 | 276.10 | -44.07 | 74.78 | 0.7055 | 273.0 | 253.2 | |
| 0.00 | 0.91 | 0.00 | 0.64 | 14.09 | 275.74 | -44.44 | 72.92 | 0.7127 | -408.0 | -258.0 | |
| 0.54 | 2.27 | 0.38 | 1.60 | 13.74 | 275.69 | -44.49 | 73.41 | 0.7125 | -630.3 | -501.7 | |
| 0.64 | 4.45 | 0.45 | 3.18 | 15.57 | 275.13 | -45.05 | 71.04 | 0.7231 | -656.4 | -536.4 | |
| 0.91 | 2.54 | 0.64 | 1.80 | 13.76 | 275.33 | -44.85 | 73.47 | 0.7168 | -499.3 | -335.7 | |
| 0.00 | 1.91 | 0.00 | 1.34 | 12.11 | 275.31 | -44.87 | 75.76 | 0.7139 | 846.0 | 593.2 | |
| 6.54 | 20.16 | 4.63 | 14.22 | 12.73 | 275.13 | -45.05 | 74.94 | 0.7171 | 939.8 | 479.1 | |
| 0.00 | 1.18 | 0.00 | 0.84 | 12.65 | 274.79 | -45.39 | 75.11 | 0.7210 | 587.0 | 507.2 | |
| 0.00 | 1.00 | 0.00 | 0.71 | 12.53 | 274.77 | -45.40 | 75.28 | 0.7210 | 382.0 | 382.1 | |
| 0.00 | 0.82 | 0.00 | 0.58 | 12.90 | 274.64 | -45.53 | 74.80 | 0.7231 | 591.0 | 519.3 | |
| 0.00 | 0.82 | 0.00 | 0.60 | 14.74 | 273.81 | -46.36 | 72.48 | 0.7362 | 749.0 | 647.0 | |
| 0.91 | 4.63 | 0.66 | 3.38 | 14.14 | 273.70 | -46.48 | 73.31 | 0.7363 | 838.0 | 733.2 | |
| 0.00 | 1.27 | 0.00 | 0.92 | 12.66 | 274.07 | -46.11 | 75.24 | 0.7294 | -663.0 | -463.9 | |
| 4.72 | 24.61 | 3.48 | 18.13 | 14.79 | 273.34 | -46.84 | 72.53 | 0.7416 | 708.4 | 628.1 | |
| 0.45 | -27.00 | 0.33 | -27.00 | 14.17 | 273.51 | -46.67 | 73.32 | 0.7385 | 850.6 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.67 | 13.57 | 273.34 | -46.83 | 74.16 | 0.7393 | -113.0 | -130.3 | |
| 0.00 | 1.09 | 0.00 | 0.82 | 15.20 | 272.52 | -47.66 | 72.17 | 0.7515 | 428.0 | 402.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
