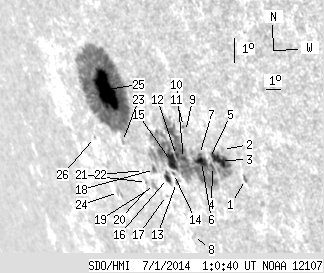

SDO HMI 2014-07-01 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.10 | 542.61 | 102.12 | 624.72 | -20.11 | 259.06 | -61.11 | 114.03 | 0.9014 | 324.5 | -15.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.73 | 2.45 | 0.71 | 2.41 | -21.74 | 264.42 | -55.75 | 117.28 | 0.8659 | 392.4 | 305.3 | |
| 0.00 | 1.63 | 0.00 | 1.63 | -20.78 | 263.62 | -56.55 | 115.97 | 0.8697 | 248.0 | 239.3 | |
| 14.53 | 224.59 | 14.67 | 241.13 | -21.16 | 263.28 | -56.89 | 116.28 | 0.8732 | 719.8 | -258.2 | |
| 1.45 | -3.00 | 1.50 | -3.00 | -21.38 | 262.66 | -57.52 | 116.35 | 0.8785 | 413.7 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -21.12 | 262.64 | -57.54 | 116.05 | 0.8780 | 368.0 | 360.7 | |
| 7.63 | -3.00 | 7.98 | -3.00 | -21.24 | 262.06 | -58.11 | 116.02 | 0.8826 | 503.4 | 999999 | |
| 0.27 | -3.00 | 0.28 | -3.00 | -21.01 | 262.08 | -58.09 | 115.77 | 0.8819 | 508.0 | 999999 | |
| 0.00 | 1.91 | 0.00 | 2.20 | -23.86 | 259.69 | -60.49 | 118.18 | 0.9047 | -220.0 | -282.9 | |
| 0.00 | 2.54 | 0.00 | 2.67 | -20.27 | 261.67 | -58.51 | 114.85 | 0.8834 | -197.0 | -147.2 | |
| 3.18 | -3.00 | 3.43 | -3.00 | -21.19 | 260.96 | -59.22 | 115.66 | 0.8905 | -670.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.24 | -20.10 | 261.64 | -58.53 | 114.66 | 0.8832 | 211.0 | 175.2 | |
| 2.00 | -3.00 | 2.18 | -3.00 | -21.11 | 260.56 | -59.62 | 115.46 | 0.8932 | -822.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.73 | -22.04 | 259.92 | -60.26 | 116.29 | 0.8995 | -633.0 | -567.2 | |
| 0.64 | 1.27 | 0.71 | 1.42 | -21.74 | 259.93 | -60.25 | 115.97 | 0.8988 | -491.1 | -464.7 | |
| 10.81 | -3.00 | 12.00 | -3.00 | -21.33 | 260.08 | -60.10 | 115.57 | 0.8970 | -663.8 | 999999 | |
| 3.36 | 6.81 | 3.84 | 7.76 | -21.93 | 259.39 | -60.79 | 116.03 | 0.9029 | -337.6 | -329.1 | |
| 0.00 | 0.54 | 0.00 | 0.64 | -22.52 | 258.88 | -61.30 | 116.53 | 0.9074 | -129.0 | -142.2 | |
| 1.18 | 3.09 | 1.38 | 3.60 | -21.66 | 258.69 | -61.48 | 115.57 | 0.9070 | 35.7 | -18.7 | |
| 0.00 | 4.72 | 0.00 | 5.62 | -22.21 | 258.28 | -61.90 | 116.05 | 0.9108 | 405.0 | 353.1 | |
| 0.00 | 0.91 | 0.00 | 1.10 | -22.34 | 257.68 | -62.50 | 116.04 | 0.9148 | 575.0 | 512.4 | |
| 0.00 | 1.36 | 0.00 | 1.65 | -22.13 | 257.77 | -62.41 | 115.84 | 0.9139 | 223.0 | 306.6 | |
| 0.00 | 0.27 | 0.00 | 0.33 | -21.73 | 257.87 | -62.31 | 115.44 | 0.9126 | 68.0 | 181.0 | |
| 0.00 | 1.73 | 0.00 | 2.11 | -20.80 | 257.06 | -63.11 | 114.26 | 0.9162 | 368.0 | 263.9 | |
| 0.00 | 4.72 | 0.00 | 6.28 | -22.58 | 255.29 | -64.88 | 115.74 | 0.9297 | -374.0 | -287.9 | |
| 44.32 | 280.26 | 53.44 | 339.84 | -19.09 | 257.14 | -63.03 | 112.45 | 0.9130 | 642.9 | 152.8 | |
| 0.00 | 0.82 | 0.00 | 1.08 | -20.77 | 254.97 | -65.20 | 113.76 | 0.9290 | 269.0 | 218.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
