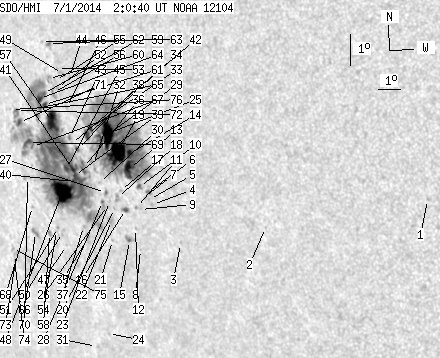

SDO HMI 2014-07-01 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 167.84 | 955.22 | 138.26 | 792.32 | -10.75 | 267.80 | -51.83 | 105.67 | 0.8041 | 370.6 | 227.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.52 | -11.58 | 282.90 | -36.72 | 112.26 | 0.6352 | 632.0 | 496.3 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -12.69 | 276.07 | -43.56 | 110.74 | 0.7211 | 411.0 | 377.7 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -13.33 | 272.10 | -47.52 | 110.14 | 0.7667 | 736.0 | 587.0 | |
| 0.00 | 1.27 | 0.00 | 0.99 | -12.14 | 271.09 | -48.53 | 108.31 | 0.7739 | 606.0 | 514.6 | |
| 0.00 | 0.54 | 0.00 | 0.43 | -11.99 | 270.99 | -48.64 | 108.08 | 0.7746 | 556.0 | 500.0 | |
| 1.09 | 2.36 | 0.85 | 1.84 | -11.73 | 271.00 | -48.63 | 107.77 | 0.7738 | 802.8 | 655.2 | |
| 0.00 | 1.09 | 0.00 | 0.85 | -11.90 | 270.77 | -48.86 | 107.91 | 0.7766 | 503.0 | 544.8 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -13.60 | 270.12 | -49.50 | 109.82 | 0.7878 | -316.0 | -342.5 | |
| 0.00 | 0.82 | 0.00 | 0.65 | -12.32 | 270.47 | -49.15 | 108.34 | 0.7808 | 233.0 | 211.6 | |
| 1.45 | 351.14 | 1.14 | 278.40 | -11.59 | 270.61 | -49.02 | 107.47 | 0.7775 | 759.4 | 443.7 | |
| 0.00 | 1.09 | 0.00 | 0.86 | -12.27 | 270.29 | -49.33 | 108.22 | 0.7825 | 599.0 | 548.0 | |
| 0.00 | 0.91 | 0.00 | 0.73 | -12.94 | 270.07 | -49.56 | 108.98 | 0.7866 | 507.0 | 405.3 | |
| 14.44 | -10.00 | 11.38 | -10.00 | -11.04 | 270.26 | -49.37 | 106.68 | 0.7798 | 910.9 | 999999 | |
| 4.54 | -10.00 | 3.56 | -10.00 | -10.57 | 270.36 | -49.26 | 106.11 | 0.7775 | 1296.6 | 999999 | |
| 0.82 | 5.00 | 0.66 | 4.03 | -13.33 | 269.67 | -49.96 | 109.35 | 0.7917 | -619.0 | -318.6 | |
| 1.73 | 3.45 | 1.38 | 2.77 | -12.35 | 269.74 | -49.88 | 108.16 | 0.7884 | 623.6 | 479.0 | |
| 0.00 | 1.09 | 0.00 | 0.87 | -11.75 | 269.65 | -49.97 | 107.40 | 0.7879 | 675.0 | 519.6 | |
| 0.00 | 3.27 | 0.00 | 2.63 | -11.98 | 269.45 | -50.18 | 107.62 | 0.7905 | 598.0 | 534.0 | |
| 28.25 | -10.00 | 22.44 | -10.00 | -10.59 | 269.73 | -49.89 | 105.97 | 0.7842 | 1008.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -12.34 | 269.20 | -50.42 | 107.99 | 0.7938 | 389.0 | 399.9 | |
| 0.00 | 0.64 | 0.00 | 0.52 | -13.36 | 268.82 | -50.81 | 109.13 | 0.8003 | 251.0 | 209.4 | |
| 0.00 | 5.72 | 0.00 | 4.68 | -12.73 | 268.95 | -50.67 | 108.39 | 0.7974 | 135.0 | 123.9 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -12.13 | 269.01 | -50.61 | 107.67 | 0.7952 | 444.0 | 377.9 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -16.38 | 267.59 | -52.03 | 112.36 | 0.8200 | 442.0 | 369.8 | |
| 20.62 | -10.00 | 16.45 | -10.00 | -9.98 | 269.43 | -50.19 | 105.13 | 0.7860 | 964.0 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.63 | -12.26 | 268.88 | -50.74 | 107.80 | 0.7969 | 454.0 | 378.6 | |
| 0.54 | 2.00 | 0.44 | 1.63 | -11.85 | 268.89 | -50.73 | 107.30 | 0.7958 | 494.2 | 372.6 | |
| 0.64 | 4.45 | 0.52 | 3.65 | -12.14 | 268.66 | -50.96 | 107.59 | 0.7988 | 396.1 | 393.0 | |
| 5.18 | -10.00 | 4.17 | -10.00 | -10.18 | 269.05 | -50.58 | 105.28 | 0.7904 | 321.6 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.74 | -11.54 | 268.67 | -50.95 | 106.86 | 0.7973 | 306.0 | 268.9 | |
| 0.00 | 0.54 | 0.00 | 0.48 | -16.83 | 266.79 | -52.84 | 112.63 | 0.8286 | 508.0 | 476.0 | |
| 0.00 | 5.45 | 0.00 | 4.46 | -10.98 | 268.51 | -51.11 | 106.13 | 0.7976 | 513.0 | 418.8 | |
| 3.09 | -10.00 | 2.50 | -10.00 | -9.82 | 268.63 | -50.99 | 104.73 | 0.7939 | 498.2 | 999999 | |
| 4.54 | -10.00 | 3.70 | -10.00 | -10.05 | 268.43 | -51.19 | 104.96 | 0.7964 | 328.1 | 999999 | |
| 0.00 | 4.81 | 0.00 | 4.07 | -13.35 | 267.56 | -52.07 | 108.75 | 0.8126 | -585.0 | -515.5 | |
| 4.36 | 500.00 | 3.61 | 426.73 | -11.10 | 267.98 | -51.64 | 106.14 | 0.8032 | 199.1 | 126.1 | |
| 0.00 | 0.91 | 0.00 | 0.77 | -12.98 | 267.47 | -52.16 | 108.27 | 0.8126 | -438.0 | -423.3 | |
| 1.45 | -36.00 | 1.20 | -36.00 | -10.54 | 267.82 | -51.80 | 105.42 | 0.8037 | 697.8 | 999999 | |
| 0.27 | -36.00 | 0.23 | -36.00 | -11.37 | 267.46 | -52.17 | 106.33 | 0.8090 | -384.7 | 999999 | |
| 0.27 | -36.00 | 0.23 | -36.00 | -11.56 | 267.36 | -52.27 | 106.54 | 0.8105 | -648.7 | 999999 | |
| 3.45 | -36.00 | 2.89 | -36.00 | -11.15 | 267.41 | -52.21 | 106.06 | 0.8090 | -294.6 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.30 | -10.36 | 267.56 | -52.07 | 105.14 | 0.8059 | 586.0 | 525.0 | |
| 0.73 | 1.73 | 0.61 | 1.44 | -10.18 | 267.50 | -52.12 | 104.90 | 0.8061 | 669.2 | 538.6 | |
| 0.00 | 1.82 | 0.00 | 1.49 | -8.29 | 267.90 | -51.73 | 102.67 | 0.7984 | 398.0 | 411.2 | |
| 3.09 | -36.00 | 2.61 | -36.00 | -11.16 | 267.10 | -52.52 | 106.00 | 0.8121 | 427.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.20 | -9.24 | 267.56 | -52.07 | 103.76 | 0.8037 | 662.0 | 563.6 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -13.62 | 266.38 | -53.25 | 108.74 | 0.8244 | -581.0 | -539.3 | |
| 29.06 | -36.00 | 24.88 | -36.00 | -11.90 | 266.70 | -52.93 | 106.78 | 0.8176 | -865.8 | 999999 | |
| 0.00 | 3.45 | 0.00 | 2.85 | -8.18 | 267.57 | -52.06 | 102.47 | 0.8016 | 679.0 | 548.5 | |
| 0.00 | 2.27 | 0.00 | 1.97 | -13.21 | 266.30 | -53.32 | 108.24 | 0.8242 | -545.0 | -533.4 | |
| 0.00 | 1.09 | 0.00 | 0.95 | -13.06 | 266.14 | -53.49 | 108.02 | 0.8254 | -531.0 | -551.3 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -8.63 | 267.23 | -52.40 | 102.94 | 0.8059 | 707.0 | 631.9 | |
| 0.00 | 1.00 | 0.00 | 0.83 | -8.04 | 267.34 | -52.28 | 102.24 | 0.8037 | 605.0 | 517.7 | |
| 0.00 | 2.27 | 0.00 | 1.99 | -13.16 | 266.00 | -53.62 | 108.10 | 0.8269 | -591.0 | -570.3 | |
| 0.00 | 1.45 | 0.00 | 1.21 | -8.42 | 267.17 | -52.45 | 102.67 | 0.8061 | 635.0 | 571.4 | |
| 0.00 | 4.81 | 0.00 | 4.03 | -8.80 | 266.99 | -52.63 | 103.09 | 0.8086 | 493.0 | 462.5 | |
| 17.71 | -36.00 | 14.99 | -36.00 | -9.71 | 266.74 | -52.88 | 104.15 | 0.8127 | 844.5 | 999999 | |
| 0.00 | 2.72 | 0.00 | 2.41 | -13.27 | 265.59 | -54.03 | 108.12 | 0.8310 | -613.0 | -443.5 | |
| 0.54 | 3.09 | 0.45 | 2.57 | -7.28 | 267.02 | -52.60 | 101.24 | 0.8056 | 452.8 | 442.4 | |
| 0.00 | 3.09 | 0.00 | 2.59 | -8.37 | 266.82 | -52.80 | 102.53 | 0.8095 | 503.0 | 434.7 | |
| 2.09 | -36.00 | 1.78 | -36.00 | -9.19 | 266.44 | -53.18 | 103.46 | 0.8147 | 608.2 | 999999 | |
| 1.73 | -36.00 | 1.46 | -36.00 | -8.85 | 266.47 | -53.16 | 103.04 | 0.8139 | 711.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.91 | -7.23 | 266.67 | -52.95 | 101.11 | 0.8091 | -333.0 | -168.3 | |
| 3.72 | -36.00 | 3.18 | -36.00 | -9.01 | 266.22 | -53.40 | 103.19 | 0.8166 | 637.3 | 999999 | |
| 1.36 | -36.00 | 1.17 | -36.00 | -9.30 | 266.16 | -53.46 | 103.52 | 0.8177 | 359.9 | 999999 | |
| 1.36 | 4.54 | 1.23 | 4.10 | -13.27 | 264.83 | -54.79 | 107.93 | 0.8379 | -674.7 | -511.5 | |
| 1.09 | -36.00 | 0.95 | -36.00 | -10.54 | 265.49 | -54.14 | 104.86 | 0.8265 | -124.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.98 | -12.45 | 264.94 | -54.69 | 106.99 | 0.8353 | -594.0 | -478.0 | |
| 4.81 | -36.00 | 4.23 | -36.00 | -10.42 | 265.31 | -54.32 | 104.68 | 0.8280 | 451.9 | 999999 | |
| 0.00 | 4.45 | 0.00 | 3.96 | -11.53 | 264.94 | -54.68 | 105.92 | 0.8334 | 37.0 | -89.4 | |
| 2.91 | -36.00 | 2.57 | -36.00 | -9.81 | 264.98 | -54.65 | 103.89 | 0.8300 | 623.4 | 999999 | |
| 0.91 | -36.00 | 0.80 | -36.00 | -9.44 | 264.91 | -54.72 | 103.43 | 0.8300 | 554.3 | 999999 | |
| 0.00 | 4.18 | 0.00 | 3.92 | -14.02 | 263.50 | -56.12 | 108.47 | 0.8513 | -595.0 | -477.4 | |
| 0.00 | 1.00 | 0.00 | 0.94 | -14.19 | 263.33 | -56.30 | 108.62 | 0.8531 | -388.0 | -318.5 | |
| 0.00 | 1.36 | 0.00 | 1.28 | -13.84 | 263.34 | -56.28 | 108.22 | 0.8523 | -251.0 | -272.3 | |
| 0.00 | 0.73 | 0.00 | 0.65 | -9.42 | 264.64 | -54.98 | 103.35 | 0.8325 | 87.0 | 164.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
